Compact, powerful Automotive Ethernet converter for embedded and standard PCs.
$545.00

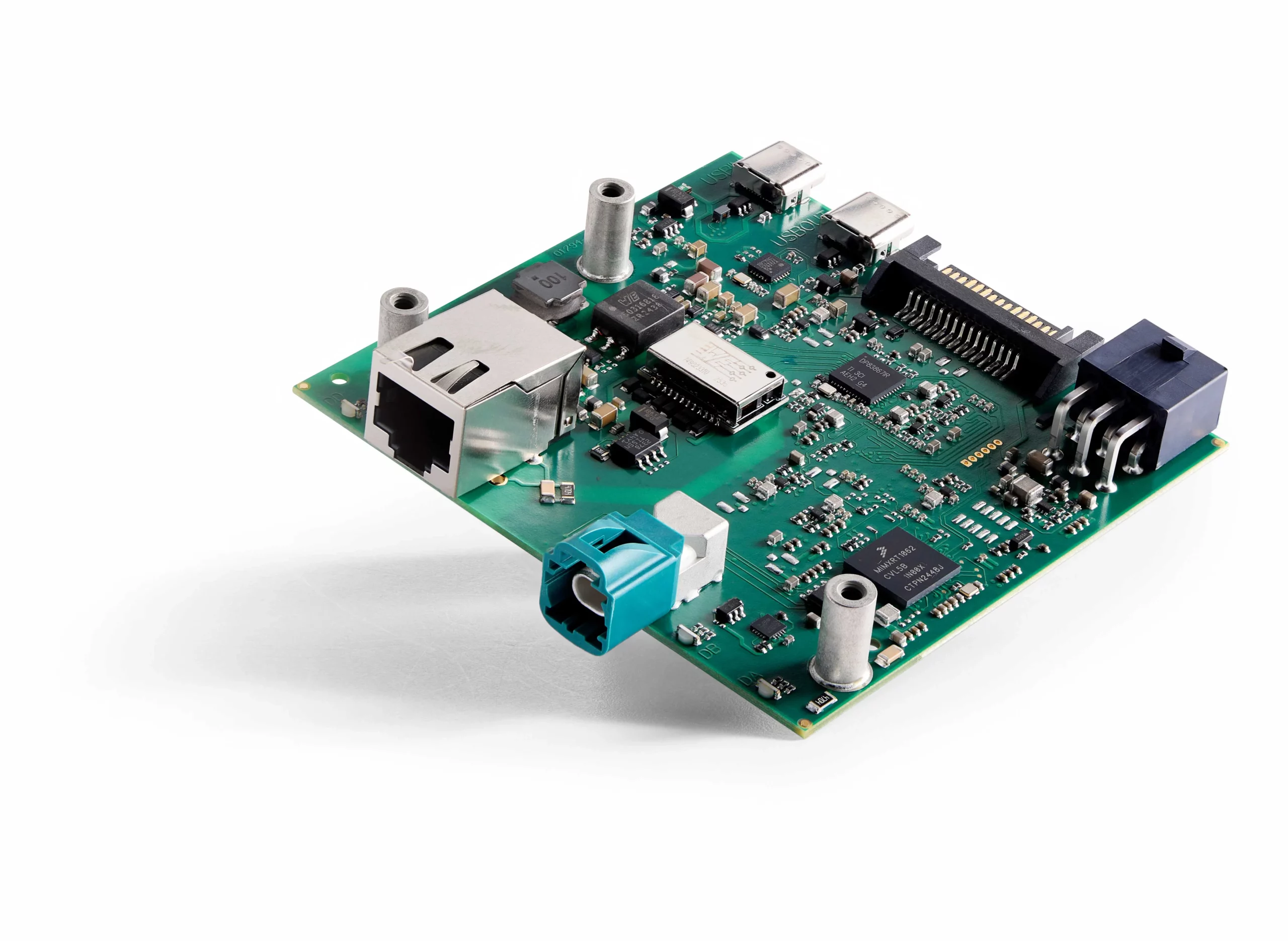

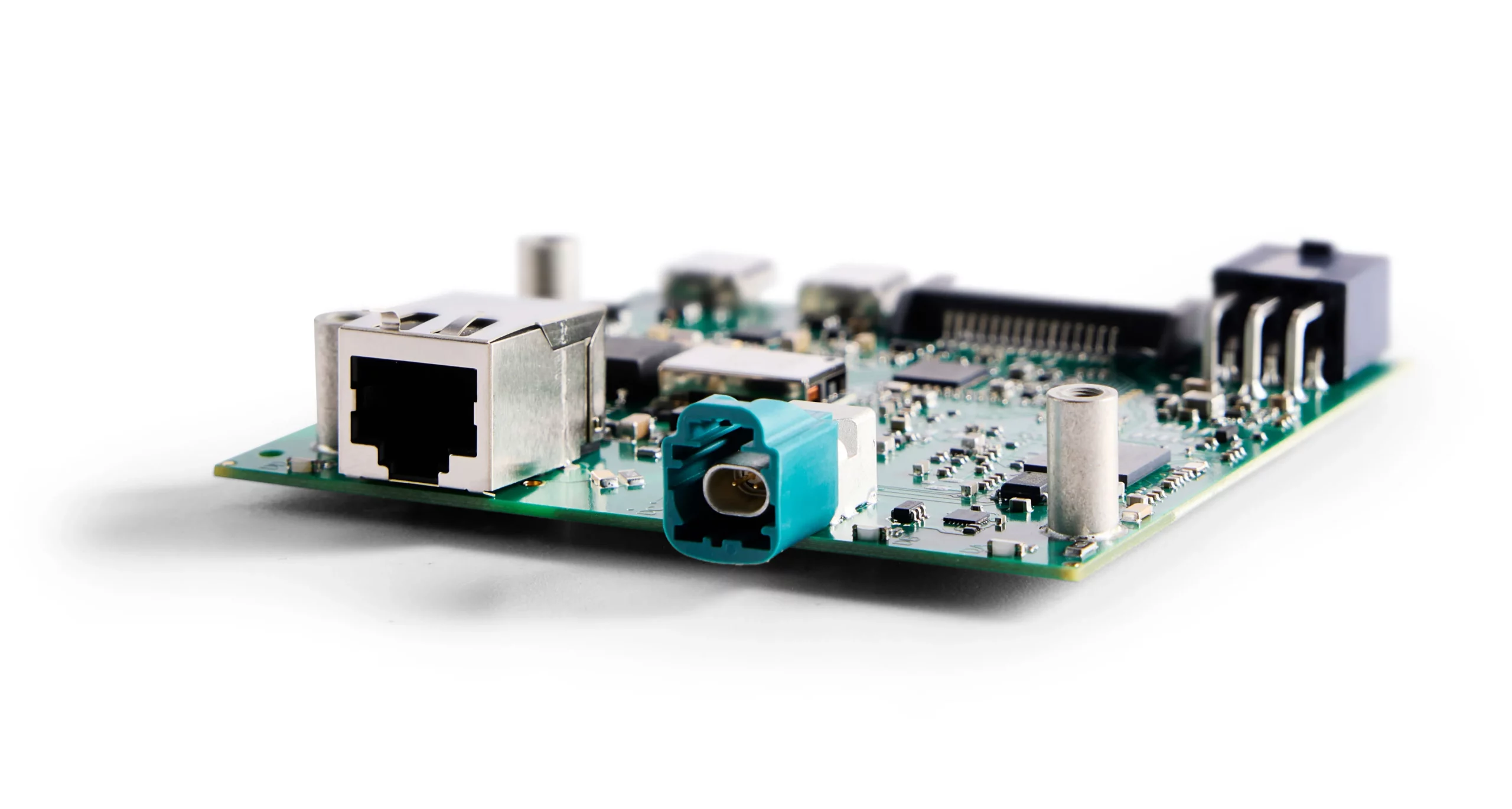

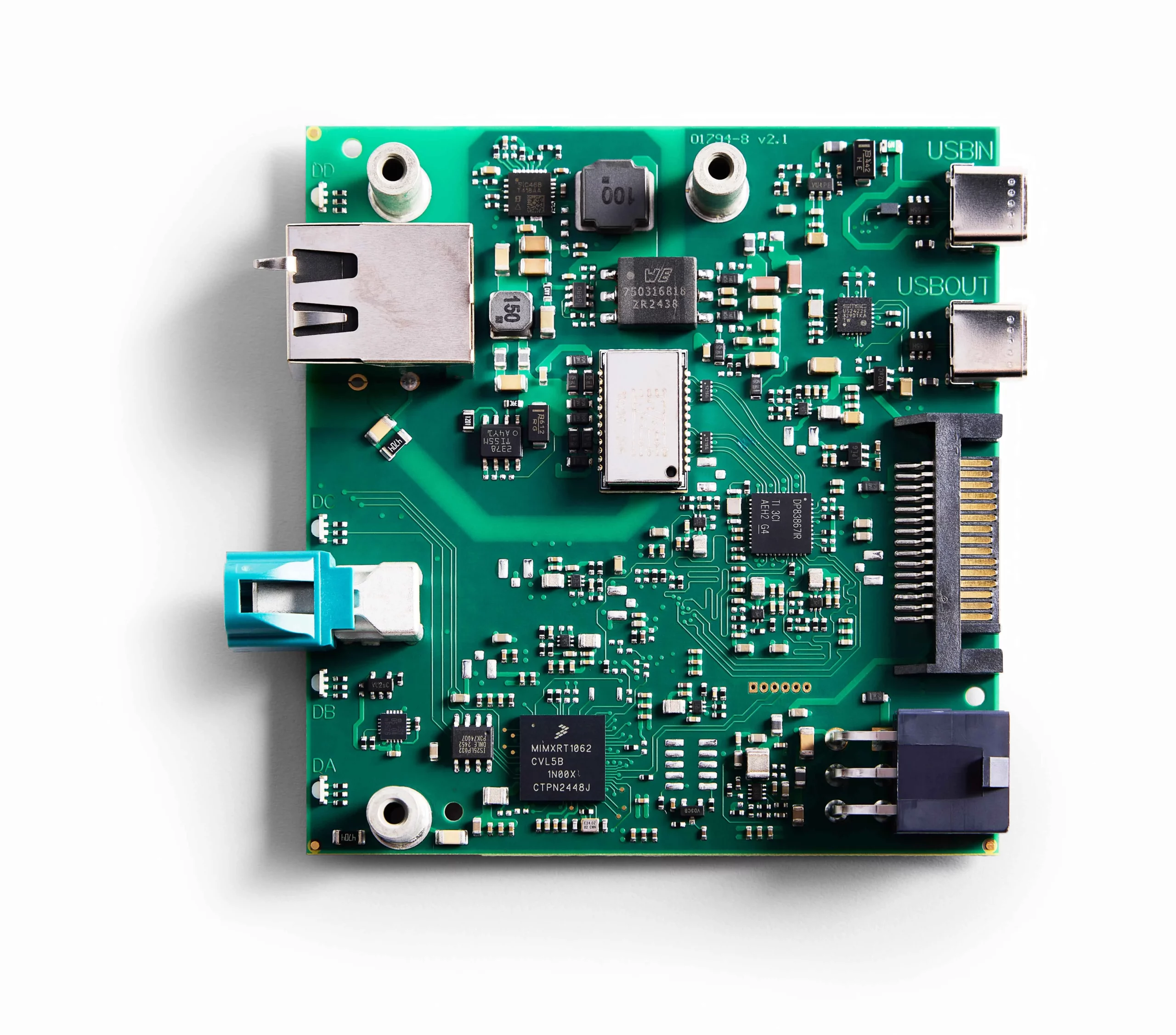

Kvaser Arcus 100/1000BASE-T1 H-MTD is a high-performance Automotive Ethernet media converter designed to simplify access to vehicle networks. It provides fast and reliable full-duplex conversion between Automotive Ethernet 100/1000BASE-T1 and Standard Ethernet 100/1000BASE-T, making it suitable for lab testing, in-vehicle development, ECU debugging, traffic monitoring, and system start-up workflows. Its transparent media conversion architecture enables efficient communication between Automotive Ethernet and standard Ethernet networks during development and validation.
Designed for embedded systems, it can also be installed in standard computers using the Kvaser Arcus ATX Bracket (EAN 73-30130-01811-2).Â
For bench-top or portable use, select the Kvaser Arcus Housing (EAN 73-30130-01813-6).
Please Note: Kvaser Arcus ATX Bracket and Kvaser Arcus Housing are sold separately.
-
Downloads
-
Description
Major Features
- Flash ECUs over Automotive Ethernet (DoIP or IP/Ethernet stacks), bridging the vehicle’s Ethernet bus to a developer laptop or server.
- Evaluate how an ECU behaves under specific link conditions by injecting packets to test reliability and compliance.
- Use during development of Ethernet-enabled ECUs or gateways as a media bridge for debugging and logging traffic.
- Serves as an Ethernet connection point during cybersecurity testing to inspect secure traffic or test resistance to MAC-level injection attacks.
- Simulates unavailable ECUs in a partial network using applications.
- Connects to a data logger or test PC to monitor Automotive Ethernet traffic from a running development vehicle.
- Enables test of early-boot communication between ECUs and bootloaders over Automotive Ethernet.
- Complies with the requirements of R155/ISO 21434 and CRA/IEC 62443.
- Supports Secure Boot: only signed and encrypted firmware will run on the device, ensuring that the unit has not been tampered with.
- Supports TC10 for Automotive Ethernet 100/1000 BASE-T1 for wake up and sleep functionality.
- Designed to meet the requirements of the Cyber Resilience Act (CRA) as well as Open Alliance recommendations
Â
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting [email protected]. -
Tech Specs
Height20 mm
Length85 mm
Width81 mm
Weight50 g
Regulatory ComplianceCE, FCC
Temp range-40 °C to 85 °C

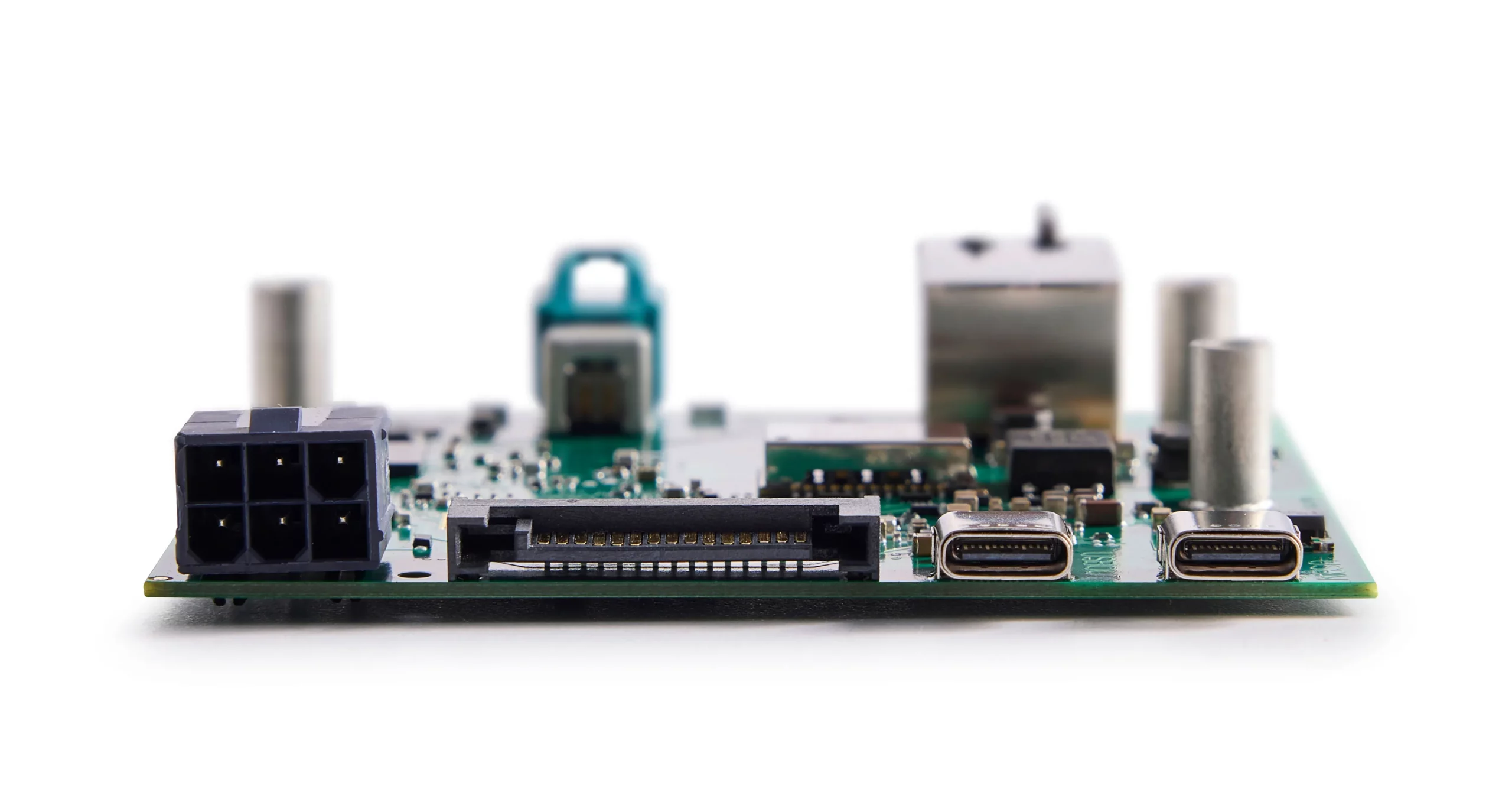

USB INUSB 2.0 Type-C
USB OUTUSB 2.0 Type-C

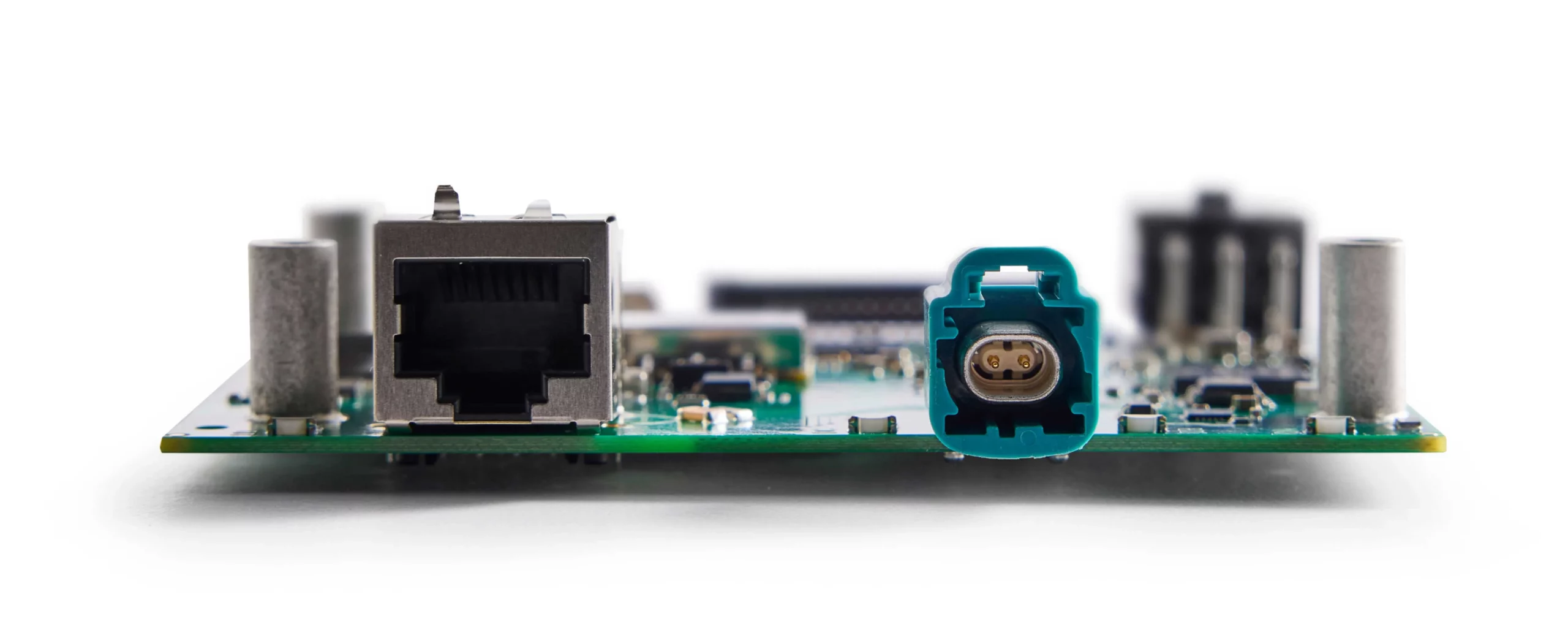

Ethernet Channel 1100/1000BASE-T, RJ45 8p8
Ethernet Channel 2100/1000BASE-T1, H-MTD Key Z
-
Media
-
Where to Buy
-
View Software
WE HAVE OVER 88 UNIQUE SOFTWARE OPTIONS TO PAIR WITH KVASER HARDWARE
As well as having a premium global reseller network, Kvaser provides all it’s customers with access to a large number of tailored software that works perfectly with Kvasrer hardware.
Kvaser-Compatible Software Provided by 88 Software Partners
-
Kvaser Arcus ATX Bracket
EAN 73-30130-01811-2Enable installation inside a computer chassis.
$25.00 Buy -
Kvaser Arcus Housing
EAN 73-30130-01813-6Making Kvaser Arcus protective and portable.
$54.00 Buy
Share
Where is the Serial Number?

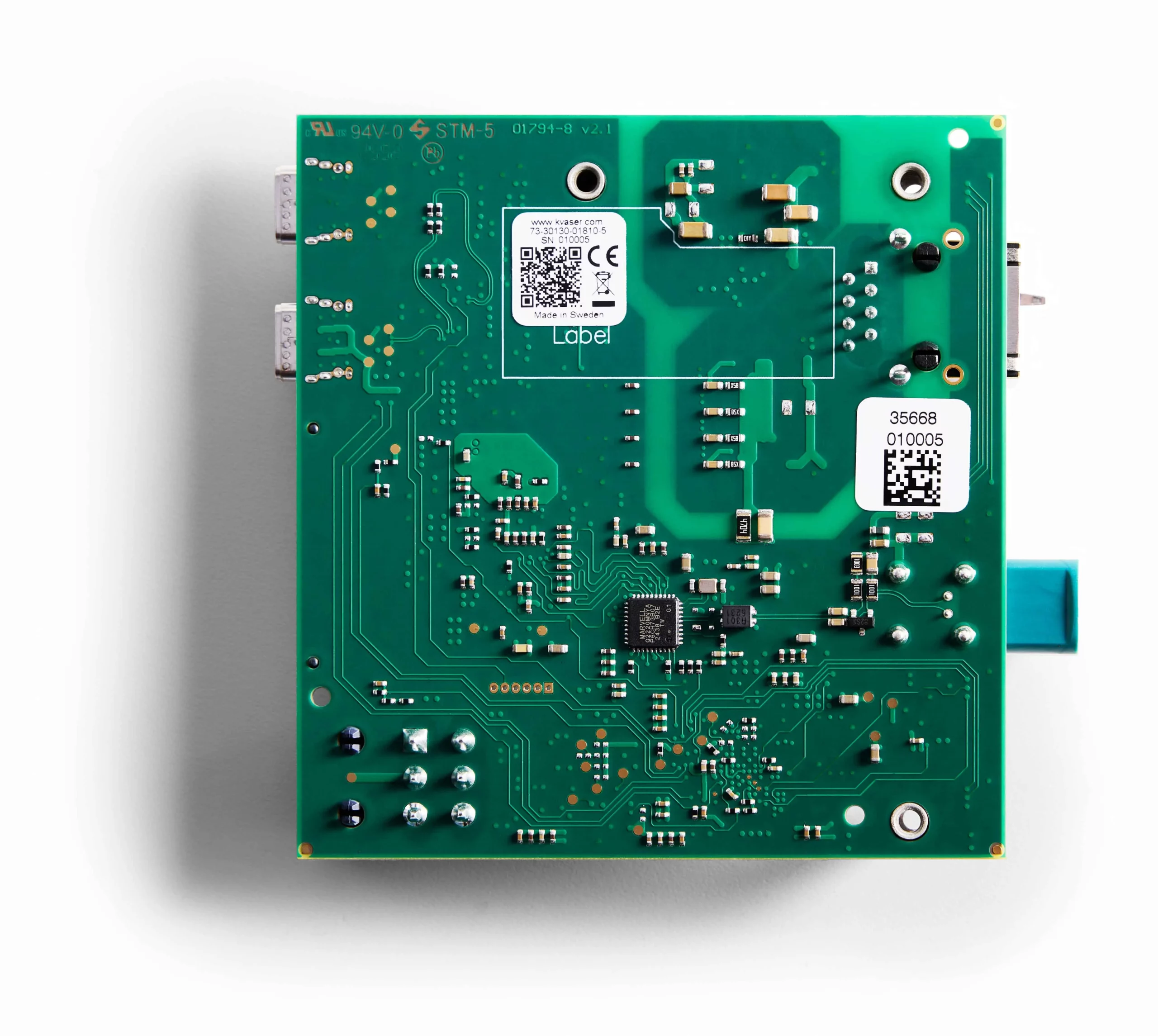

You can find the serial number (SN, Ser.no) next to the Bar/QR Code sticker on every Kvaser product.
