EAN: 73-30130-01811-2
ShareKvaser Arcus ATX Bracket
EAN: 73-30130-01811-2
ShareKvaser Arcus ATX Bracket

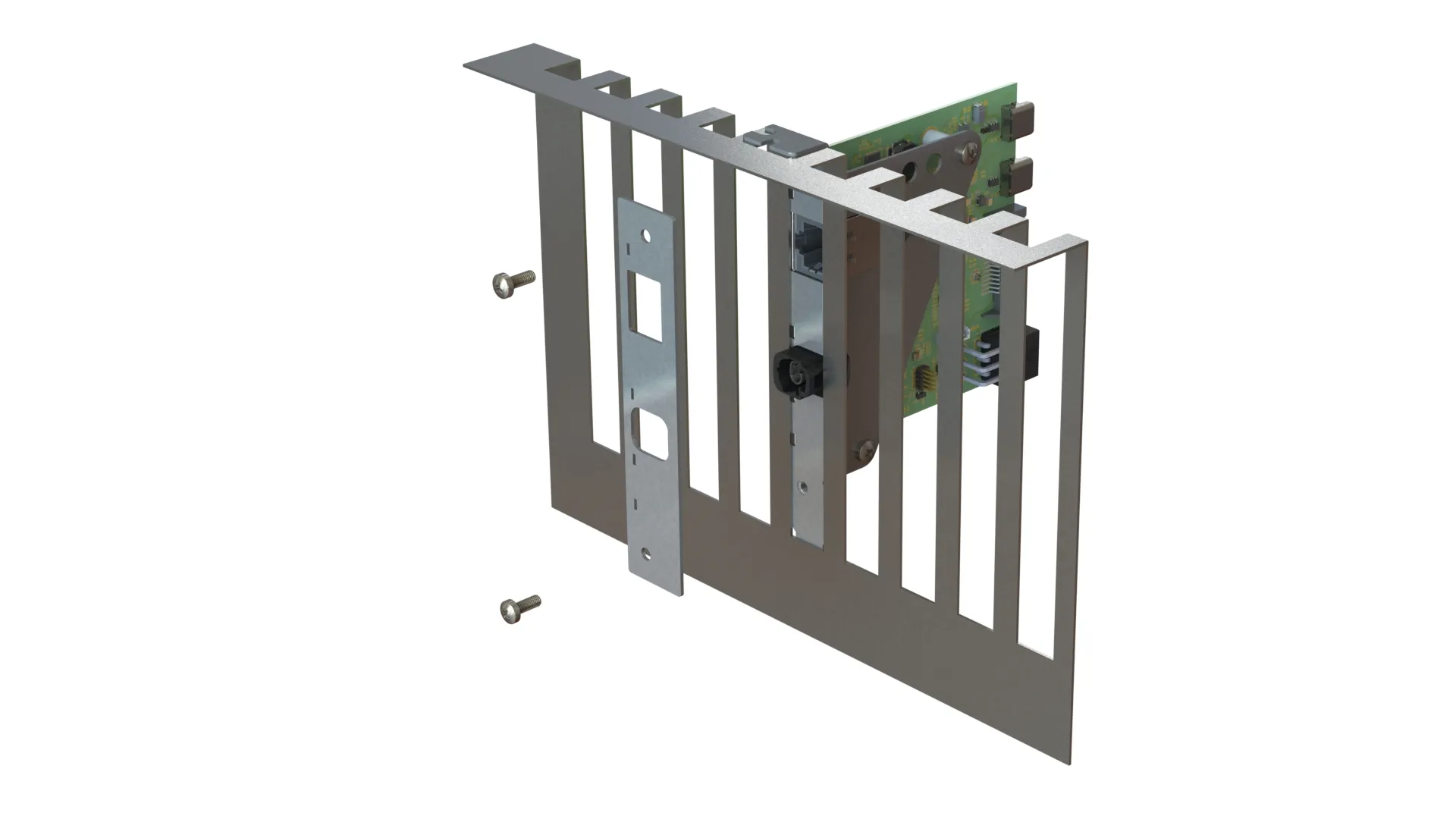

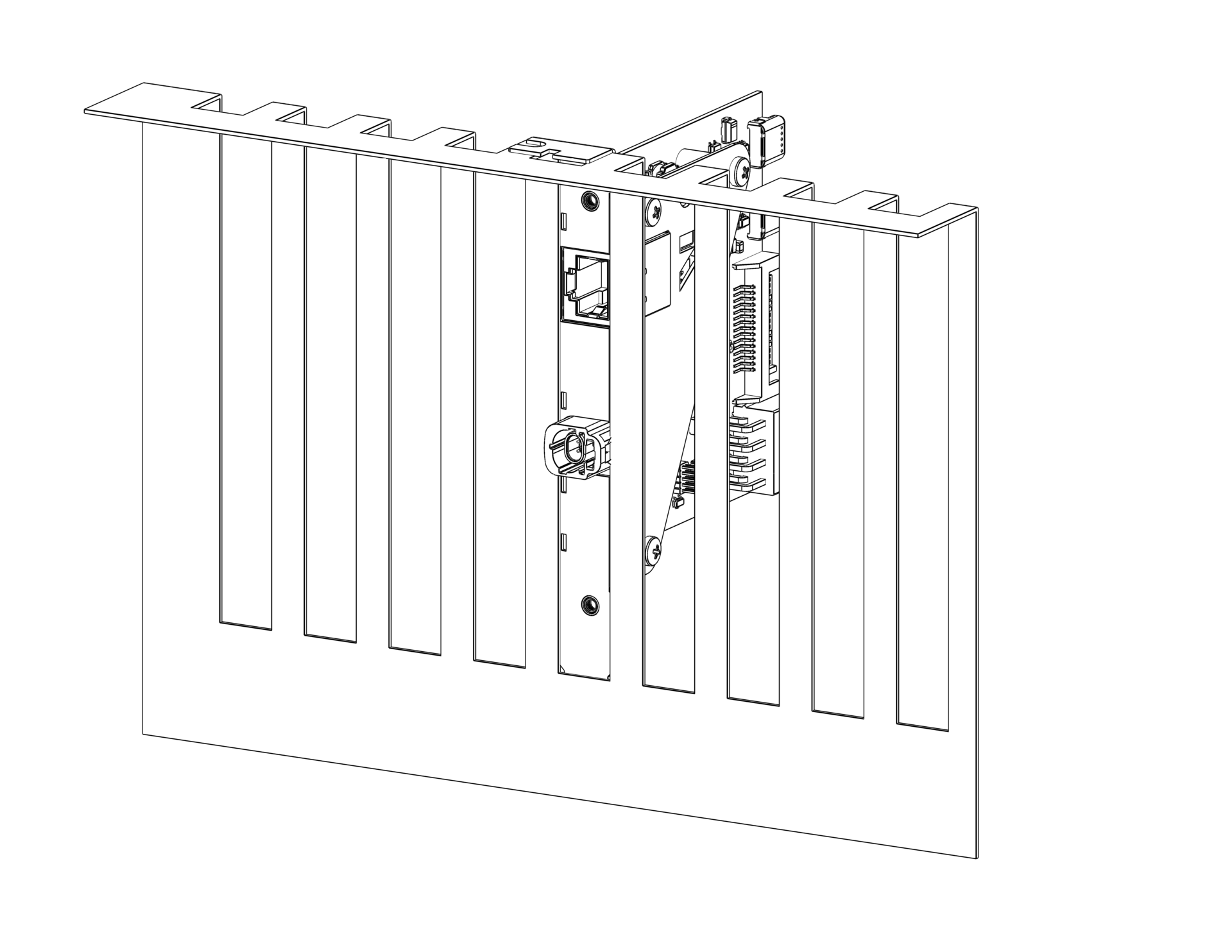

Enable installation inside a computer chassis.
$25.00

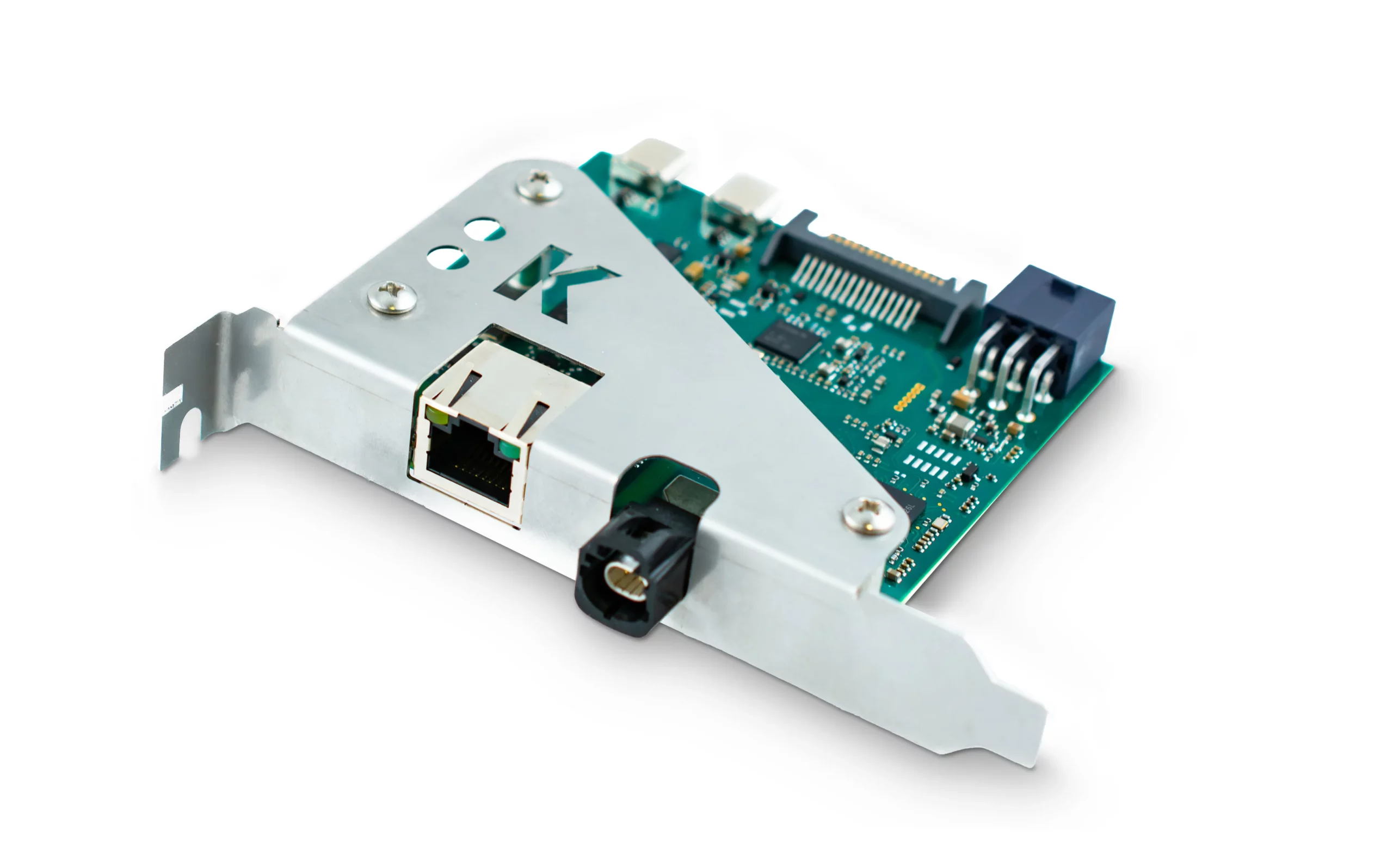

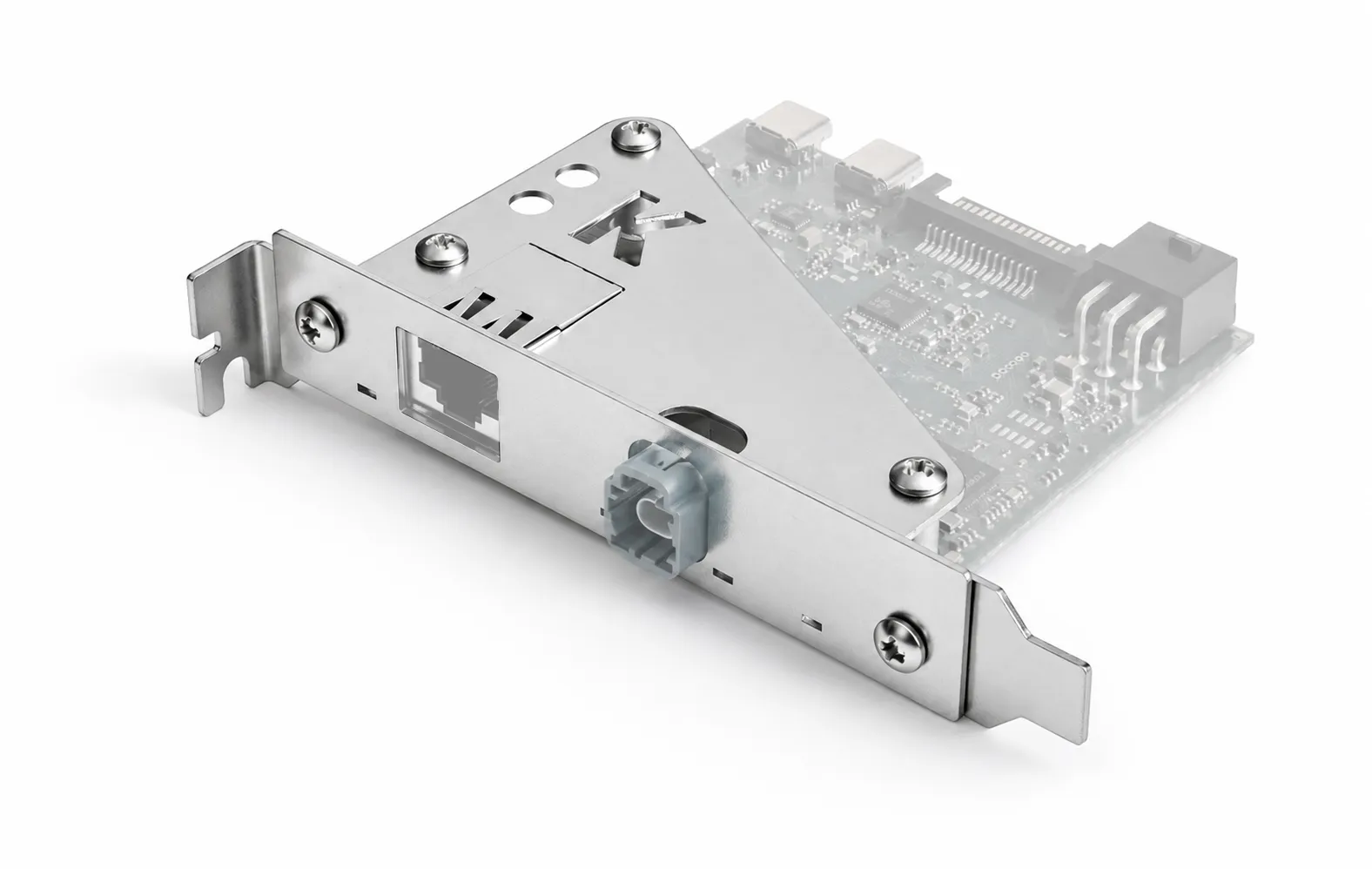

The Kvaser Arcus ATX Bracket allows secure installation inside a computer chassis, providing a stable setup ideal for fixed workstations, HIL systems and long-term test rigs.
Engineers can benefit from a clean, organized workspace and have confidence that Kvaser Arcus will perform reliably, even in continuous and demanding test scenarios.

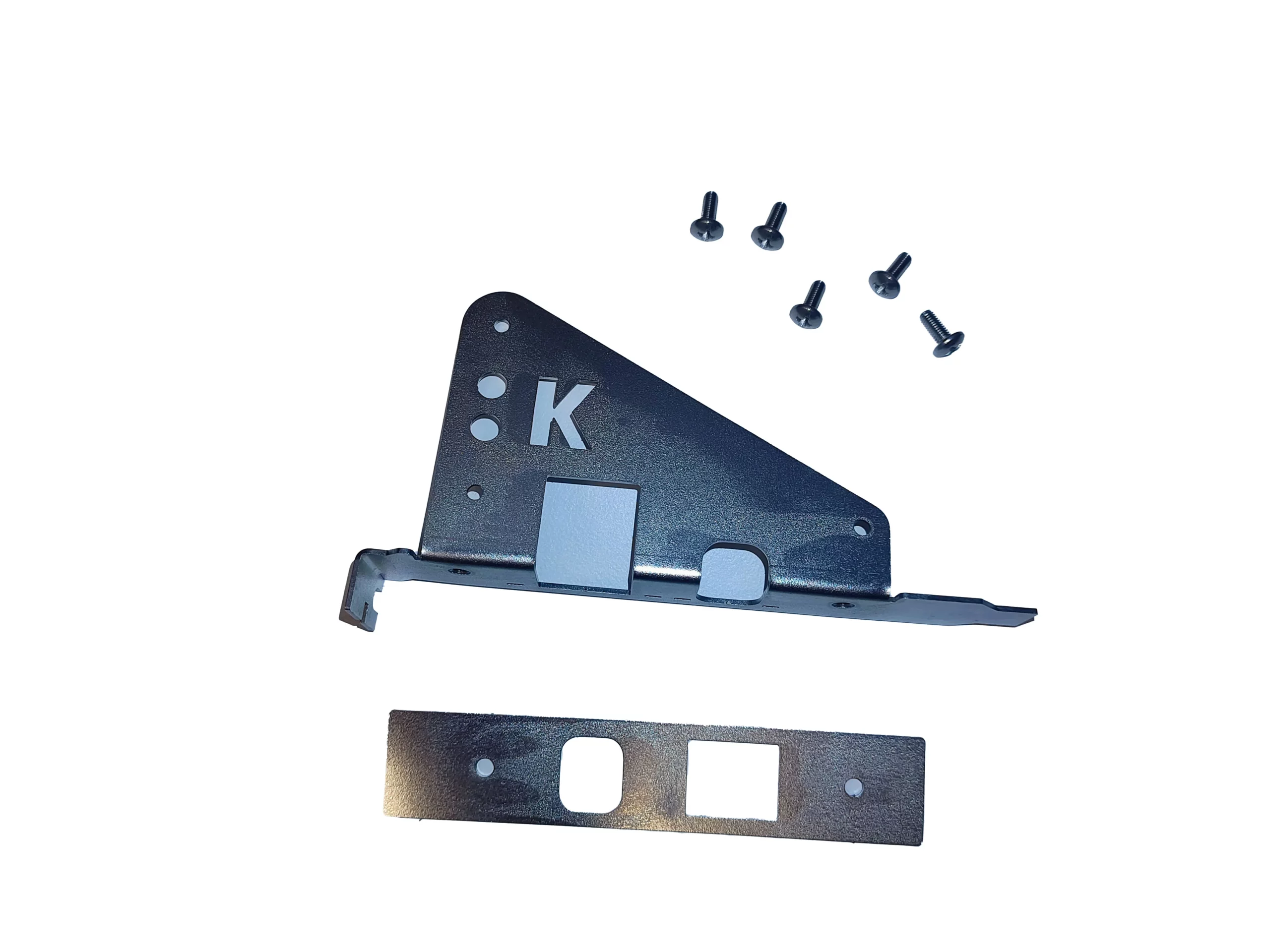

Included in the Kvaser Arcus ATX Bracket are:
ATX Bracket Arcus H-MTD
ATX Bracket Cover Arcus H-MTD
Screw M3x6 Flat-head Phillips ISO 7045 A2 (5 pcs)
Use this accessory with main product, our powerful Automotive Ethernet converter Kvaser Arcus 100/1000BASE-T1 H-MTD (EAN: 73-30130-01810-5).
Discover more:
Kvaser Arcus Platform – Explore all features and capabilities
-
Downloads
-
Description
- Secure Mounting – Integrated mounting tabs and screw points ensure the PCB is firmly fixed in place within a chassis or device enclosure.
- Easy System Integration – Designed to fit standard expansion slots or mounting rails, allowing smooth integration into larger systems or industrial equipment.
- Component Protection – Shields sensitive electronics from dust, debris, and inadvertent handling during installation or maintenance.

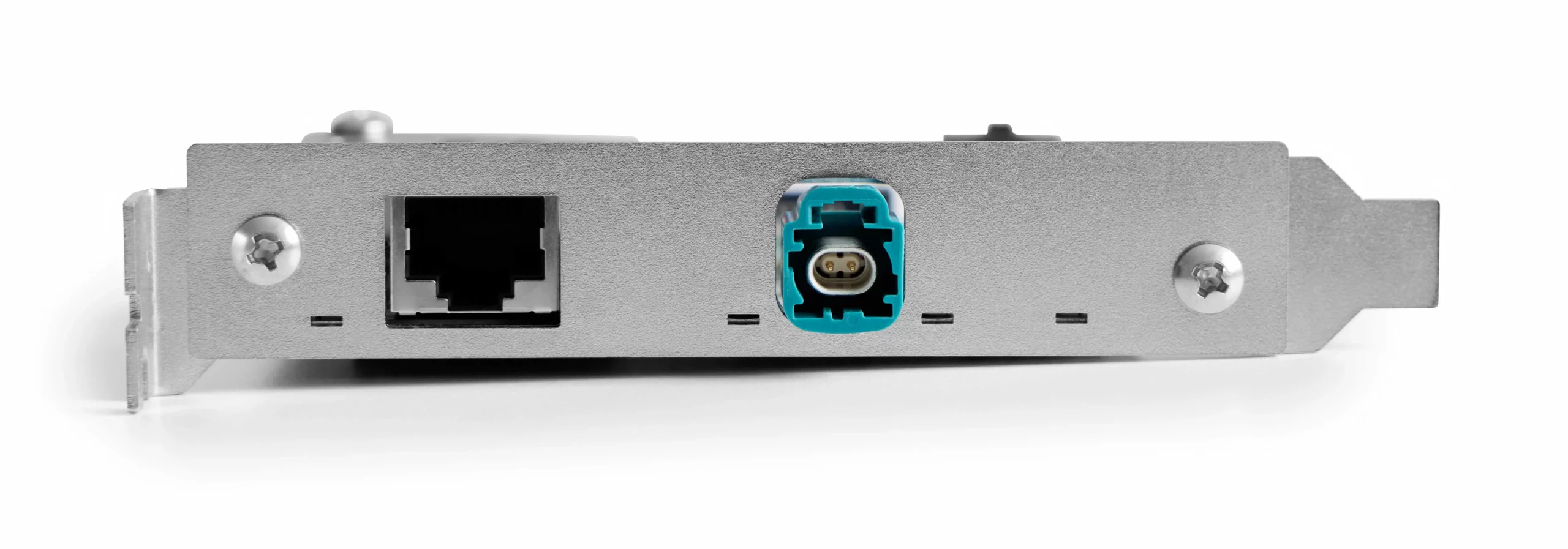

- Cut-out Access Points – Precision openings allow full access to connectors and status LEDs without compromising protection.
- Improved Heat Dissipation – The exposed metal surface can assist in passive cooling by helping dissipate heat away from the PCB.Â
Â
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.test2
Support
Free Technical Support on all products available by contacting [email protected]. -

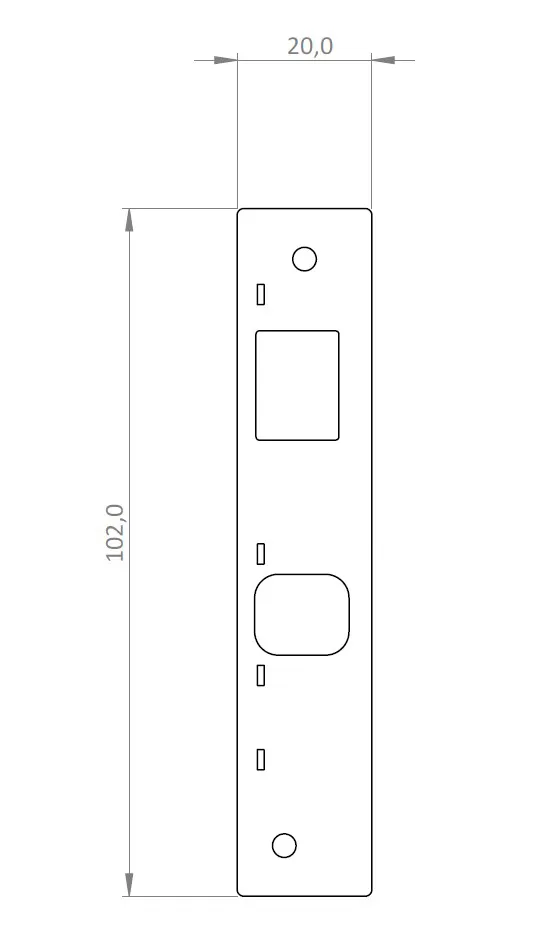

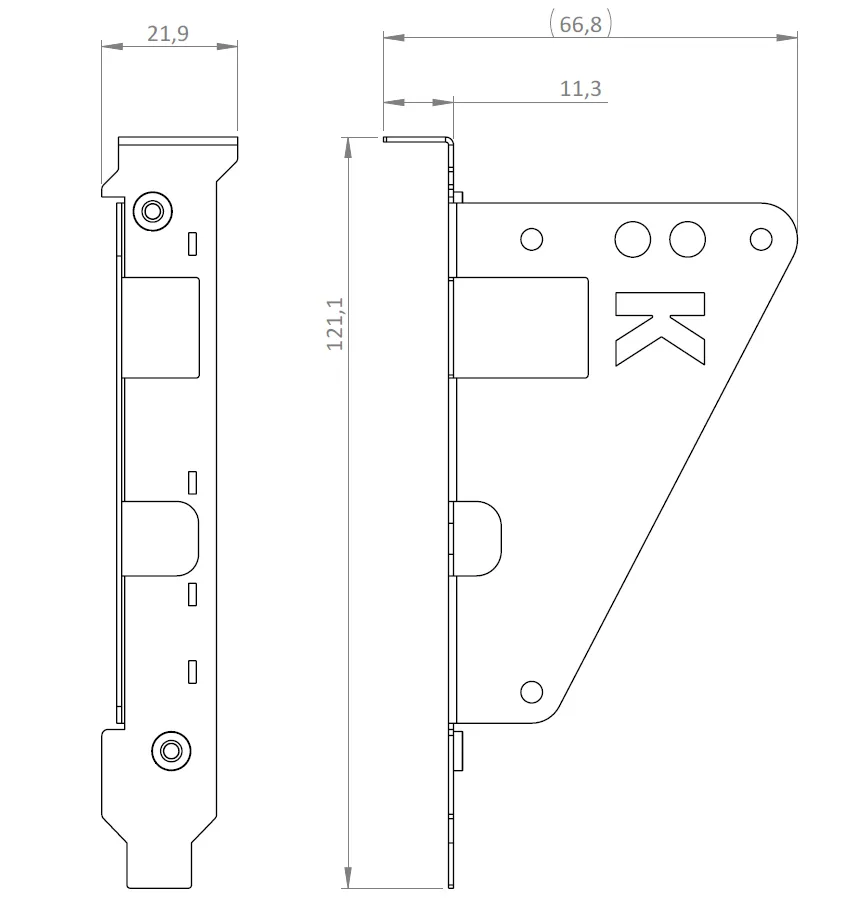

Tech Specs
Height22 mm
Length121.1 mm
Width66.8 mm
Weight50 g
-
