Major Features

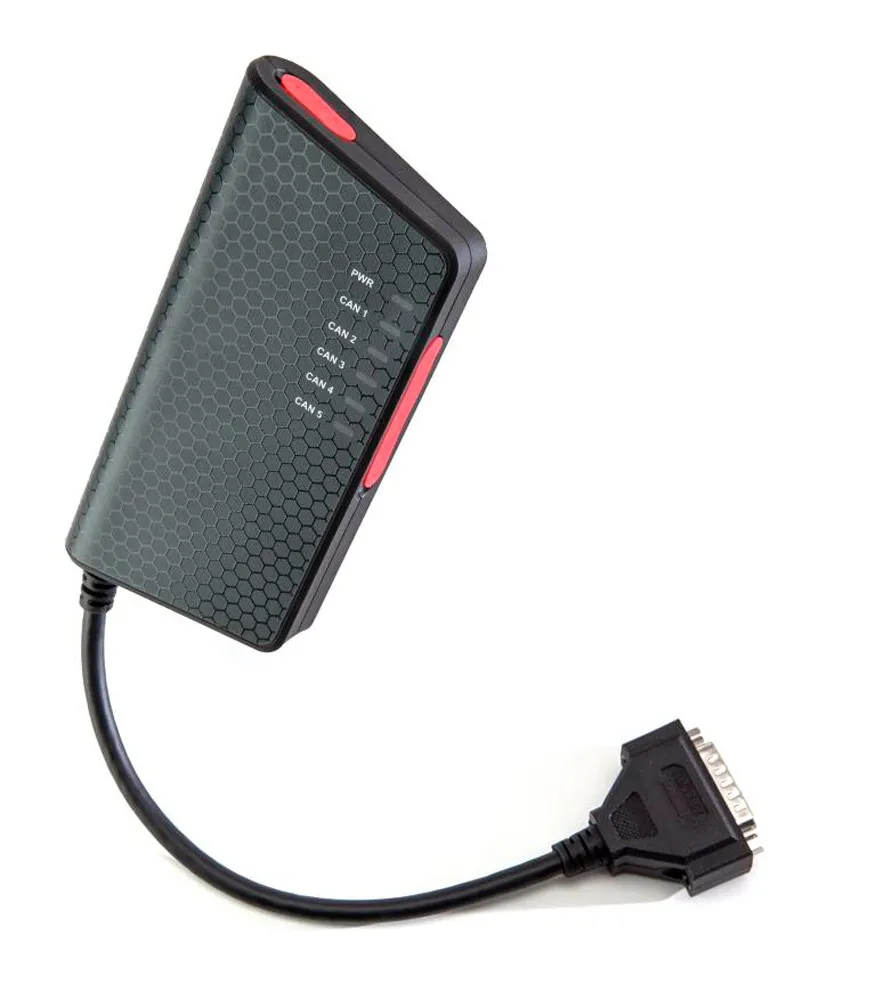

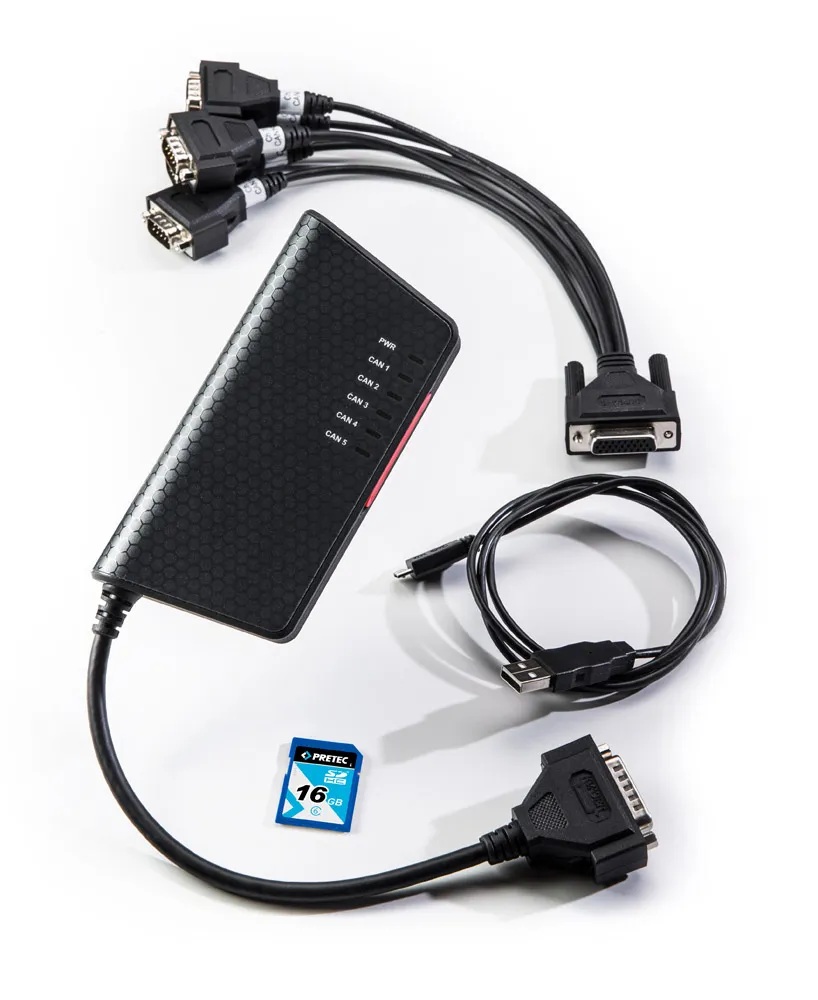

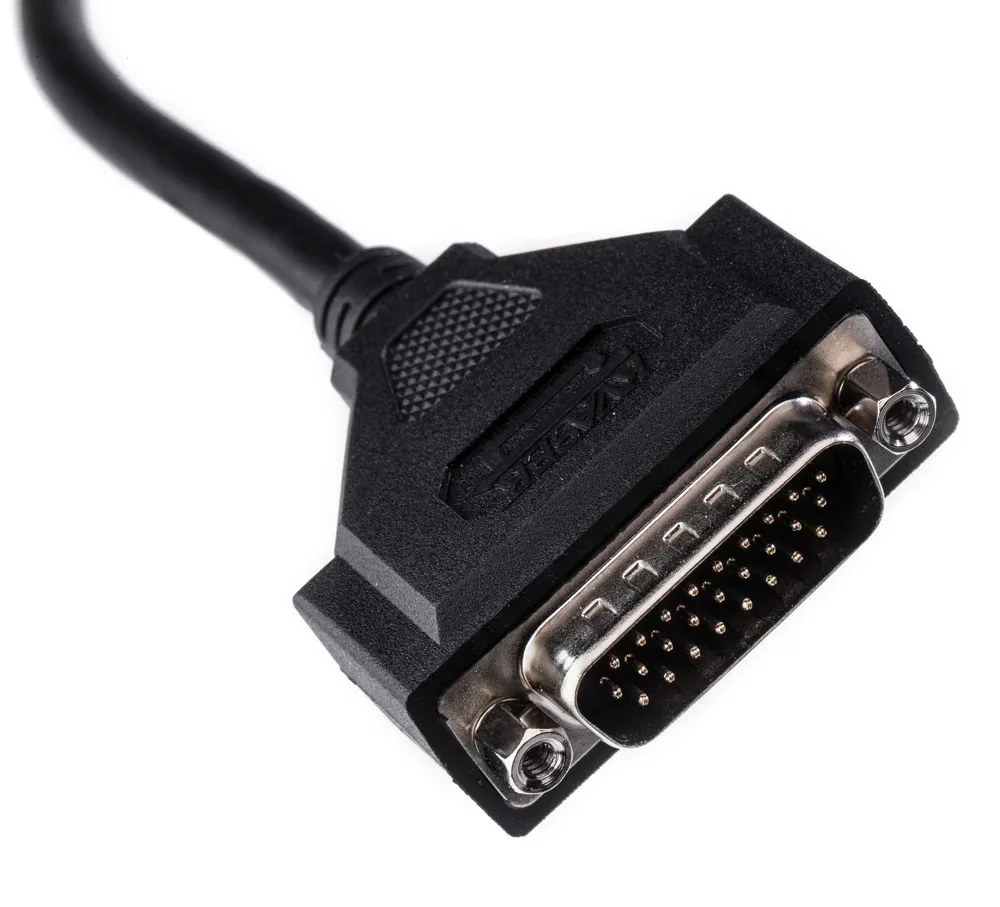

- Monitor 5 CAN channels simultaneously using just one device, or connect the USB cable with a single 9 pin DSUB for single CAN channel monitoring.
- Supports CAN FD, up to 8 Mbit/s (with proper physical layer).
- Automatically time synchronises the data transmitted and received across all five buses.
- Built-in Kvaser MagiSync technology time synchronises with other Kvaser interfaces connected to the same PC, resulting in simpler and more accurate multichannel data capture.
- Script functionality allows users to develop customised t-script applications written in the Kvaser t-script language.
- Plug and play installation, and a comprehensive user guide to help make t-script development quick and easy.

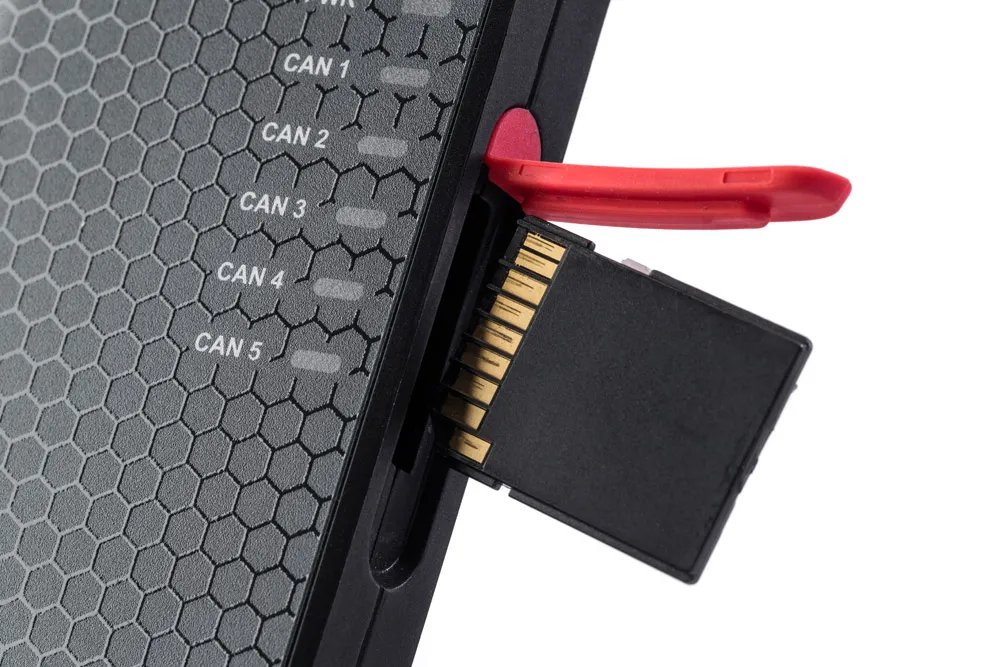

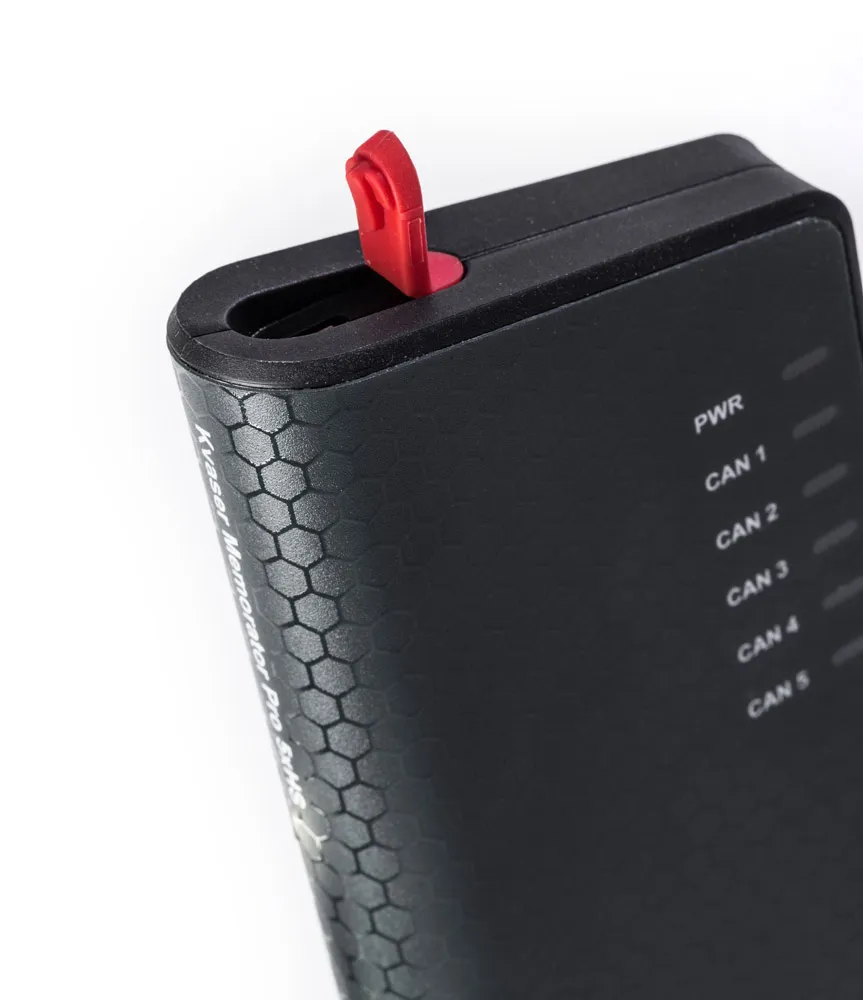

- Log data to an expandable SD card slot.

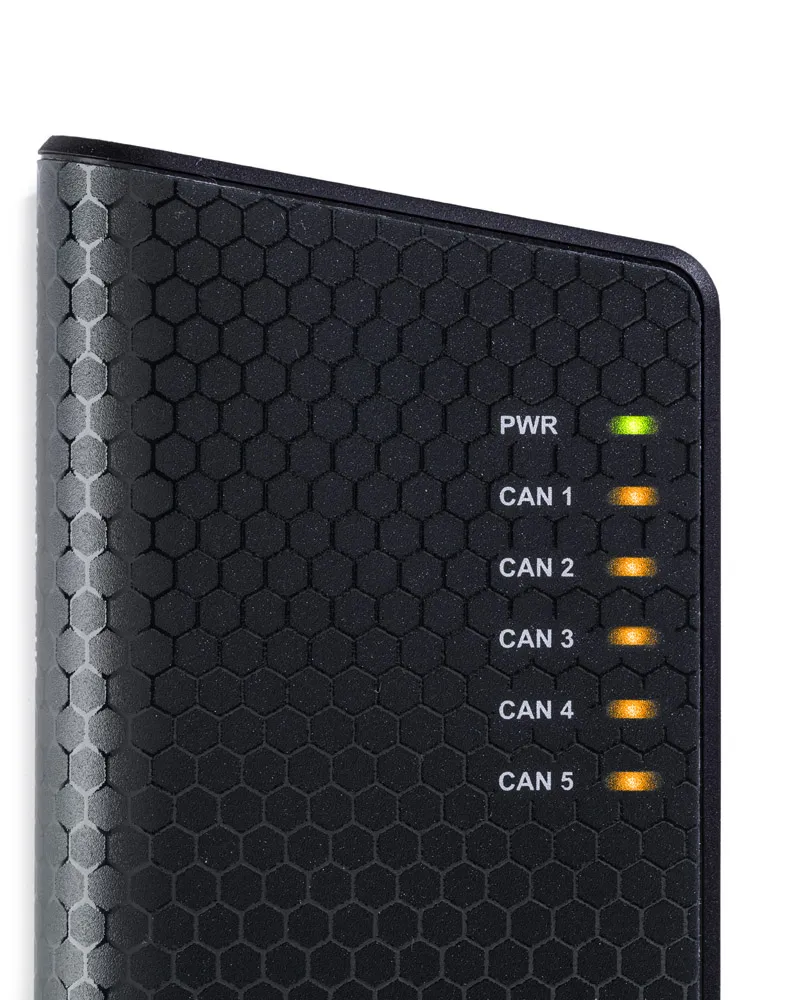

- LED lights alert user to device status, including signalling a full SD card or card error.
- Power derived from the USB connection, CAN or an in-built power supply.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Supports CAN FD.
- Support for SocketCAN, see elinux.org for details.
- NOTE: Product ships with Industrial Grade SD cards (-40 to +85°C). Additional cards are available for purchase. Contact your local Kvaser office for details.
Filters
- Log continuously, or logging can be triggered by creating advanced triggers based on messages, data signal values, error messages, external trigger's falling or rising edge, and I/O signals.
- Pre- and post-triggers are available without buffer size restrictions, limited by disk space only.
- Filter out selectable messages and/or signals to be logged. The identifiers can be picked from a database, or all messages can be logged.
- Support for pass as well as stop filters.
- Create a counting pass filter to have a message logged at enumerated occurrence.
- Handles up to 20,000 msgs/s in standalone logger mode.
- External digital output that can drive an LED or a buzzer.
- Supports Silent Mode - Log bus traffic safely without interfering and "listen-only" mode for bus analysis tools
Memory Cards and Functions
- Supports SD and SDHC memory card formats.
- Set up several devices in a daisy chain for larger logging capacity.
- NOTE: Product ships with Commercial Grade SD card (-25 to +85°C). Industrial Grade SD cards (-40 to +85°C) are available for additional purchase. Contact your local Kvaser office for details.
Configuration Software in the PC
- Easy to use graphic configuration tool - Memorator Tools.
- Configuration of the CAN controller, i.e. bit rate and filters.
- Configuration of the trigger conditions.
- Configuration of filter for messages to be stored.
- Configuration upload and download via USB.
- Using the included Kvaser Dispatcher software, a complete measurement setup can be turned into a self-installing package that is sent to a remote location to carry out a specific logging task.
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com.
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
)
)
