EAN: 73-30130-00776-5
ShareKvaser T-Cannector v2
$66.00 USD
EAN: 73-30130-00776-5
ShareKvaser T-Cannector v2
$66.00 USD

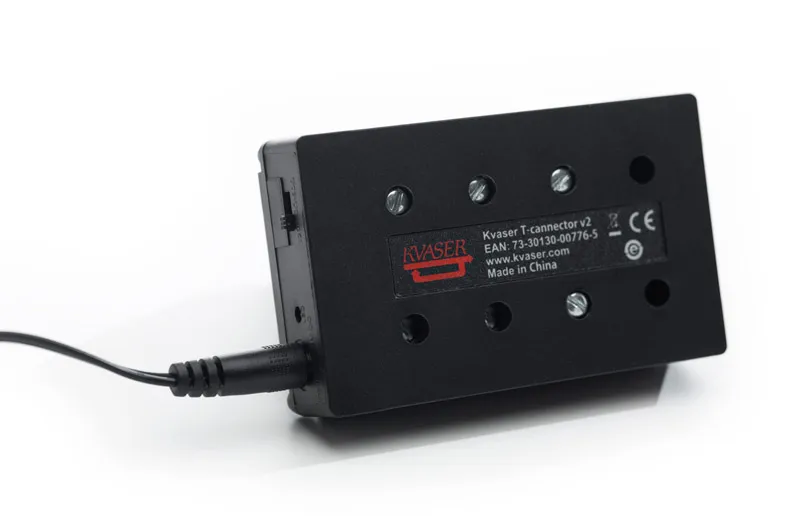

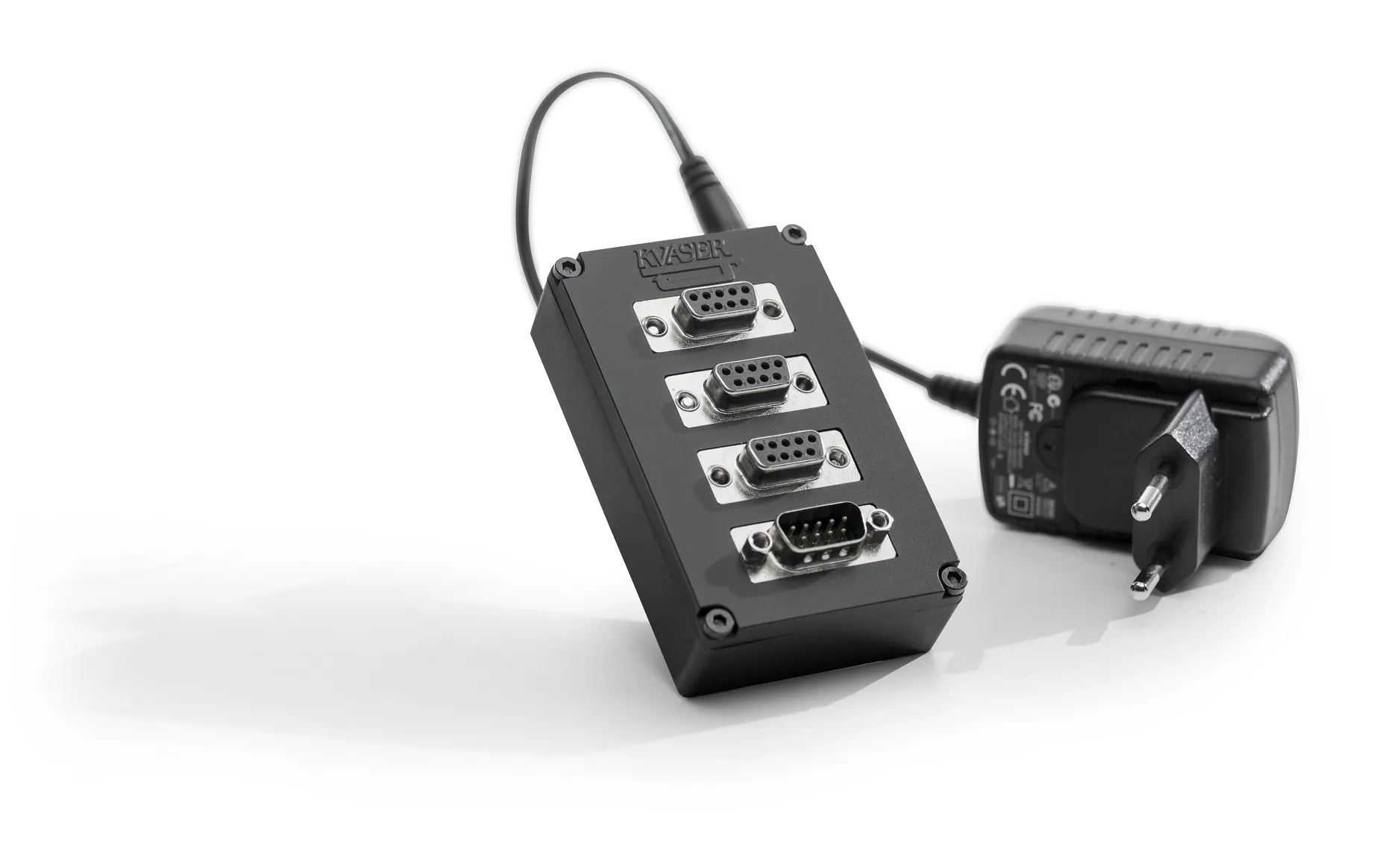

Kvaser T-cannector v2 is a CAN bus hub with three sockets and one plug D-SUB9 connectors. Offering an adjustable CAN termination resistor (120 Ohm, 60 Ohm, or unterminated) it provides an affordable and safe way of terminating the CAN circuit when using Kvaser interfaces on a development board, as well as powering interface devices without internal power, such as Kvaser’s Blackbird and Memorator series.
-
Downloads
-
Description
Major Features

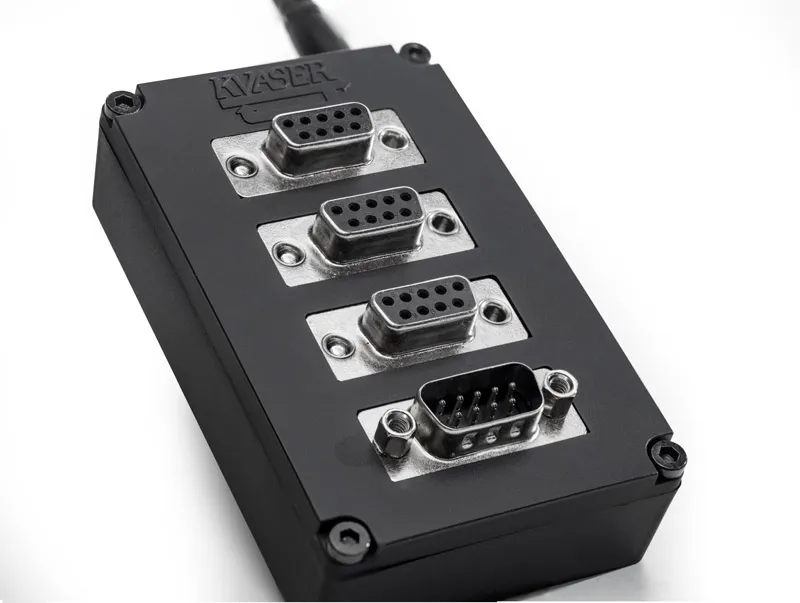

- Acts as a CAN bus hub with 3 socket and 1 plug D-SUB9 connectors
- Each DSUB9 has screws to secure the connection to the Kvaser CAN interface

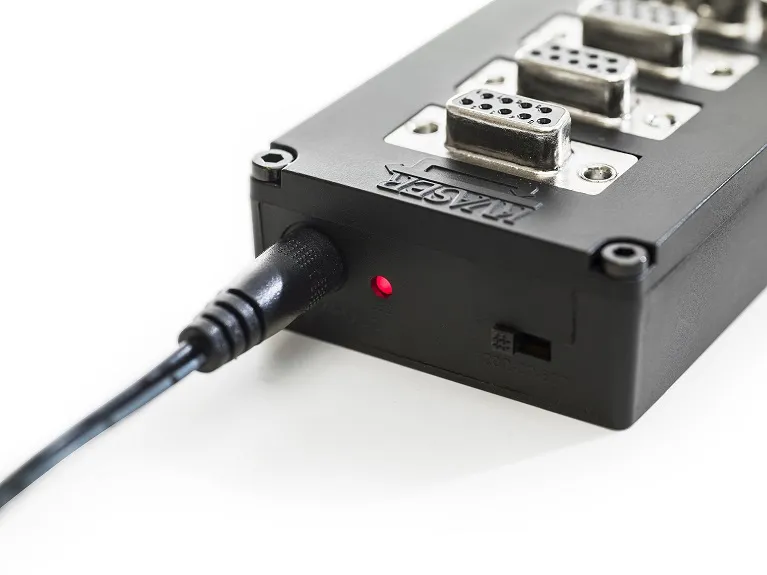

- Adjustable termination via easy-to-use switch
- 12 V, 1 A power supply
- LED to indicate power on
- Voltage range of 12 V-24 V DC

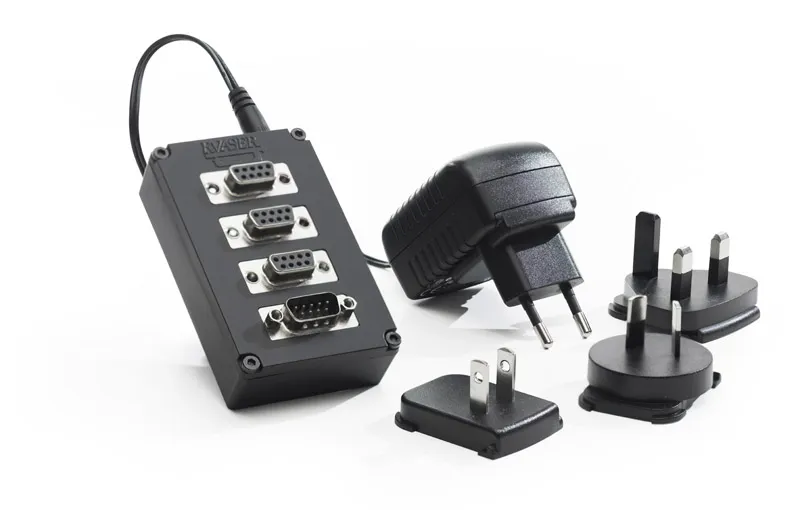

Kvaser T-cannector v2 is a CAN bus hub with three sockets and one plug D-SUB9 connectors. Used typically in application development scenarios, this offers an adjustable CAN termination resistor (120 Ohm, 60 Ohm, or unterminated) that provides an affordable and safe way of terminating the CAN circuit, as well as powering devices that take their power from the USB connection or the CAN network to which they are attached, such as Kvaser’s Blackbird and Memorator series. This device comes with a 12V power supply and EU, USA, UK and Chinese plugs.This is a new version of an existing product that responds to user requests for more termination options. Notably our previous product came in two versions: with fixed termination of 120 Ohms and without. The Kvaser T-cannector v2 is extremely price-competitive, providing an external 12V 1A power source for Kvaser CAN interfaces and a safe, trustworthy means of circuit termination that protects customer’s interface investment and will prevent short circuits from damaging their development boards.
-
Tech Specs
CategoriesCABLES, Hardware, Accessories
CertificatesCE, RoHS
Channels4
ConnectorsDSUB 9
Error Counters ReadingNo
Error Frame GenerationNo
Height29 mm
InterfacesCable
Length90 mm
Silent modeNo
Temp range-30 °C to 85 °C
Weight400 g
-
Media
-
Where to Buy
-
View Software
WE HAVE OVER 83 UNIQUE SOFTWARE OPTIONS TO PAIR WITH KVASER HARDWARE
As well as having a premium global reseller network, Kvaser provides all it’s customers with access to a large number of tailored software that works perfectly with Kvasrer hardware.
Kvaser-Compatible Software Provided by 83 Software Partners
-
PCIKvaser PCIcan II S
EAN 73-30130-00156-5 -
PCIKvaser PCIcan II D
EAN 73-30130-00157-2 -
CAN LoggersKvaser Memorator HS/SWC
EAN 73-30130-00234-0Two channel datalogger for High Speed and Single Wire CAN (SAE J2411).
$1,408.00 USD Buy -
PCIKvaser PCIcan HS
EAN 7330130000827 -
PCIKvaser Mini PCI Express 2xHS
EAN 73-30130-00743-7Dual channel Mini PCI Express CAN interface; PC communication over USB system bus.
$726.00 USD Buy -
Kvaser BlackBird SemiPro HS/HS
EAN 73-30130-00453-5$1,518.00 USD Buy -
LeafKvaser Leaf SemiPro SWC
EAN 73-30130-00263-0Single channel USB-to-CAN PC interface for Single Wire CAN (SAE J2411).
$970.00 USD Buy -
PCIKvaser PCIcan 4xHS
EAN 73-30130-00084-1
Airbridge M12 Connect Kit
-

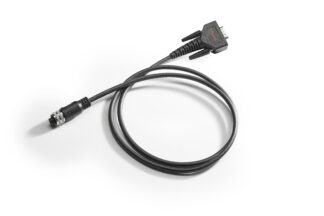

Accessory CableKvaser D-SUB 9 M12 Adapter 100 cm
