EAN: 73-30130-01512-8
ShareKvaser PCIe 8xCAN
$1,232.00 USD
EAN: 73-30130-01512-8
ShareKvaser PCIe 8xCAN
$1,232.00 USD

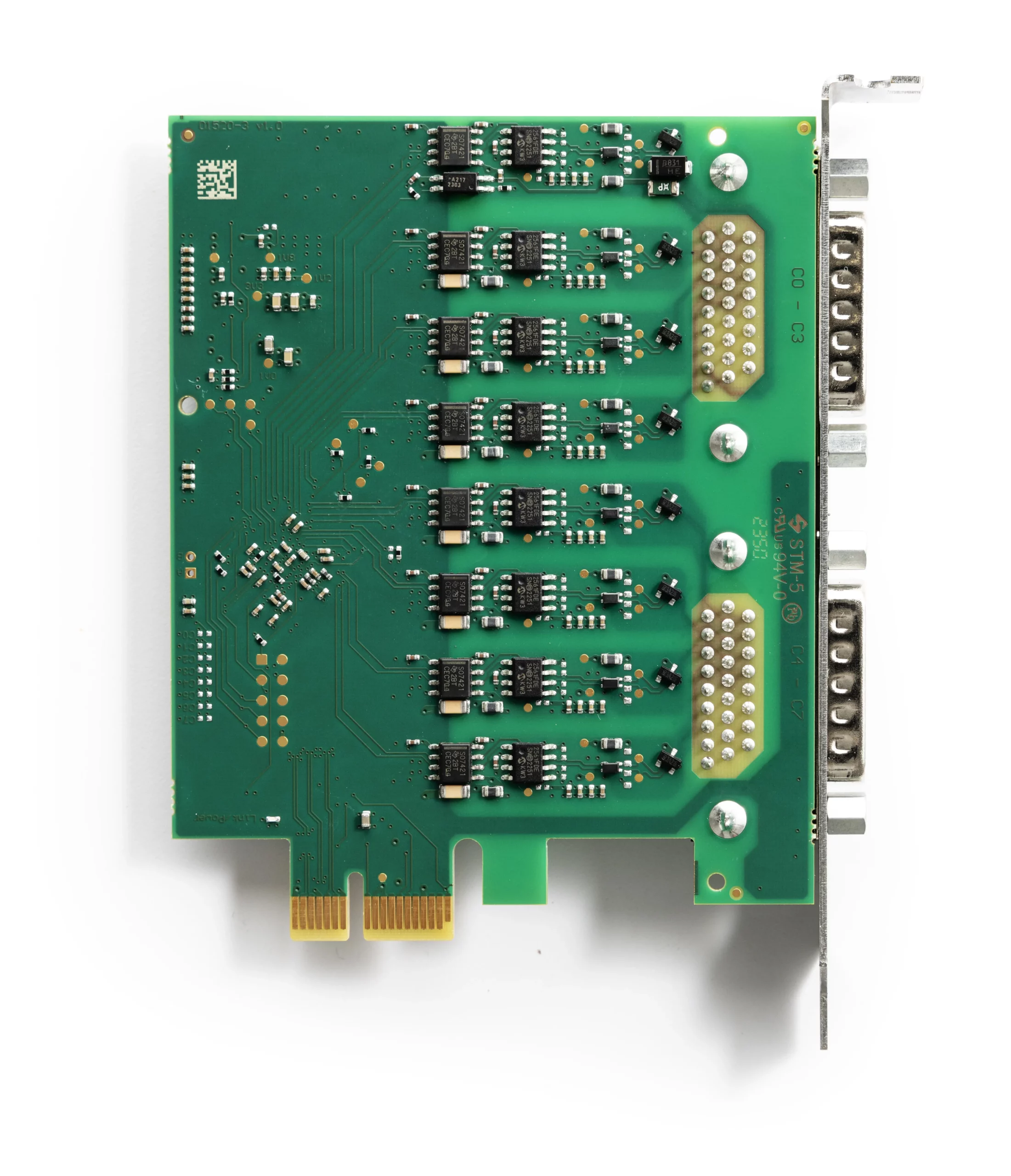

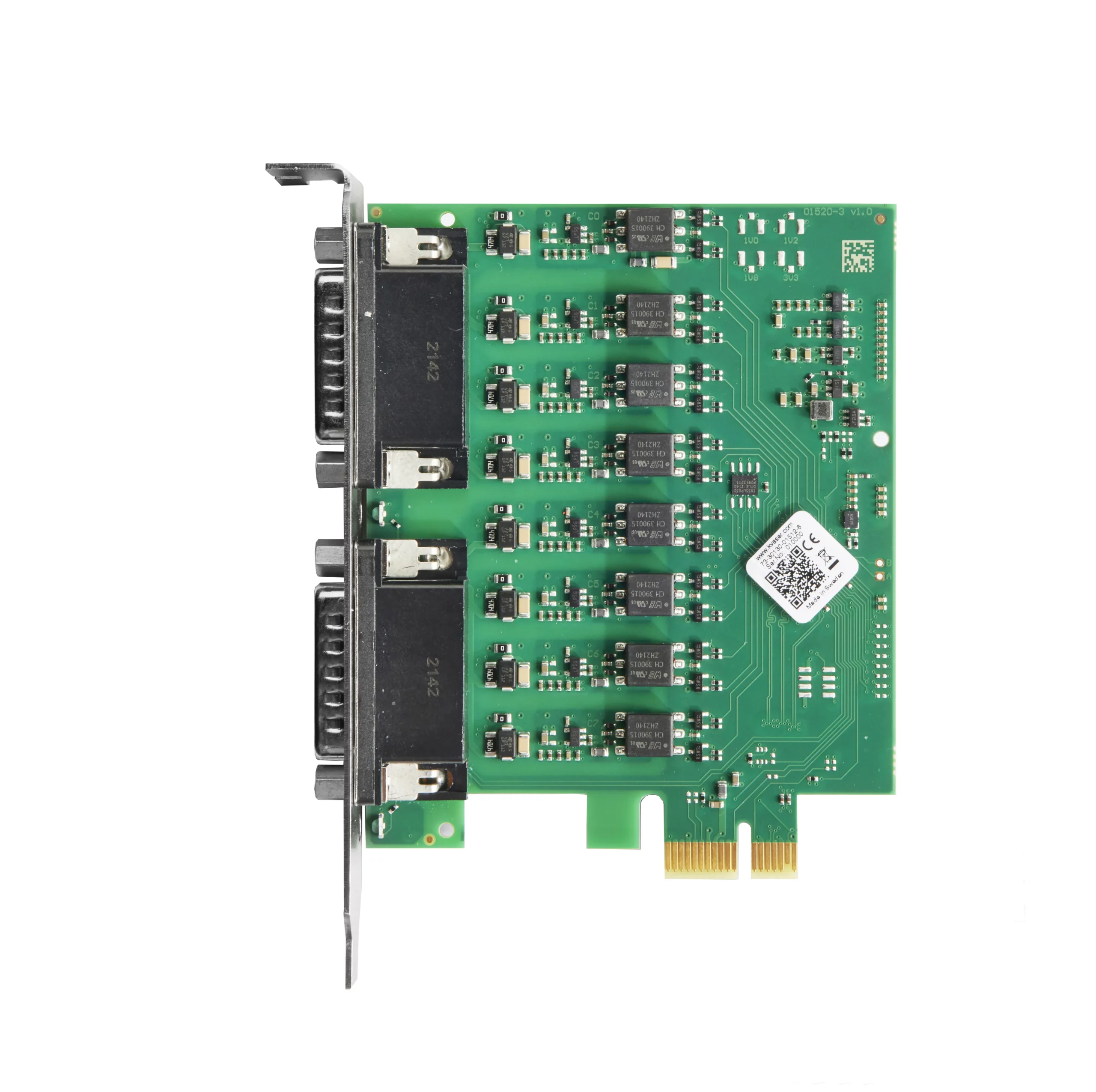

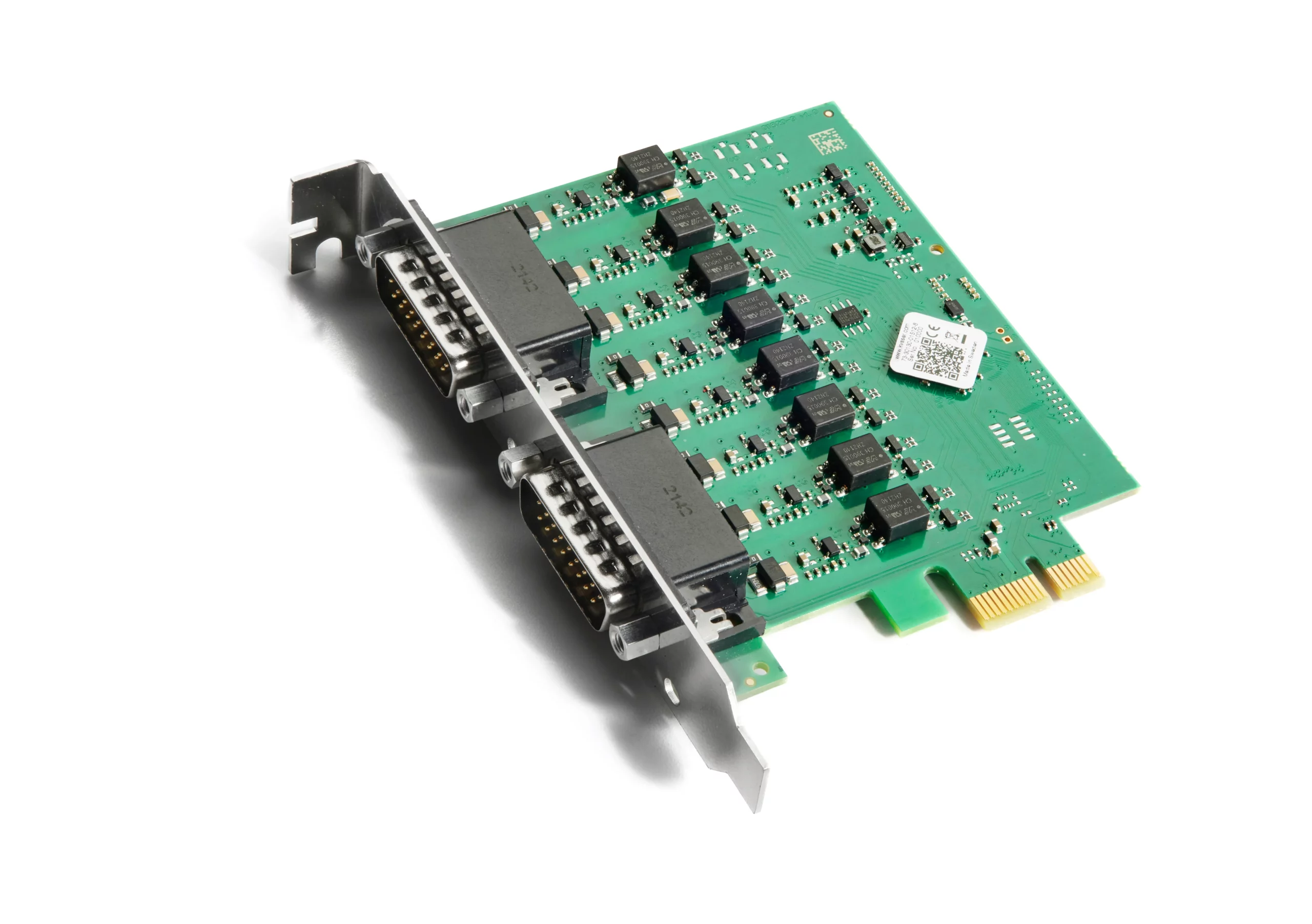

The Kvaser PCIe 8xCAN maximizes channel density through a single PCIe x1 slot, enabling the effortless design of advanced CAN systems.
It is a compact and advanced multi-channel real-time CAN interface with eight CAN/CAN FD channels.Â
The Kvaser PCIe 8xCAN is highly scalable. Multiple boards can be connected to capture data from tens of CAN channels at a time. An example is hardware-in-the-loop (HIL) suites for automotive testing, where 20 CAN channels are commonly required.
-
Downloads
-
Description
Major features
- PCI Express CAN interface. Â
- Supports CAN FD, up to 8 Mbit/s.Â
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Supports silent mode for analysis tools – listens to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
- Full-profile PCIe card.
- Support for SocketCan.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application. For software support please see our Technical Associates products and our Software Download page (www.kvaser.com).
Â
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at www.kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com. -
Tech Specs
Bitrate20 - 1000kbps
CAN FD BitrateUp to 8 Mbit/s
CategoriesHardware, Interfaces, CAN
CertificatesCE, RoHS
Channels8

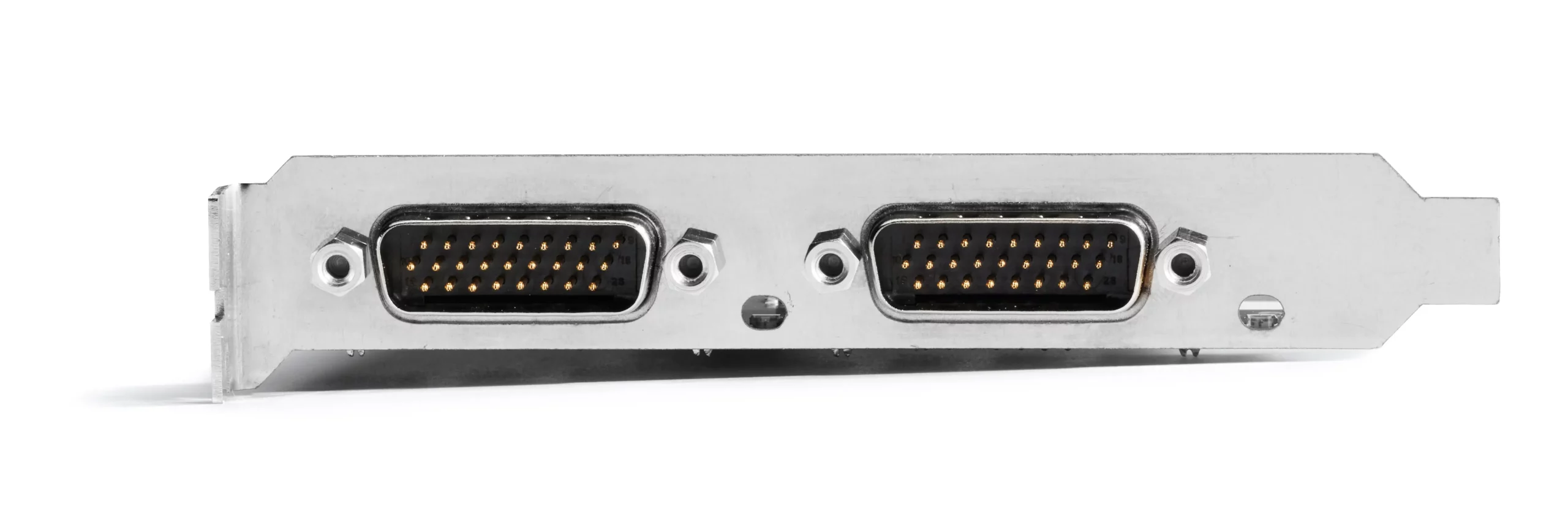

Connectors26-pin HD D-SUB
Error Frame GenerationYes
Galvanic IsolationYes
InterfacesPCI Express
Length102 mm
OSWindows 11 (x86-64), Windows 10 (IA-32 and x86-64), Linux
Silent modeYes
Temp range-40 °C to 85 °C
Timestamp Resolution (µs)1 µs
Weight72 g
-
