Kvaser Flex DB9 pairs with the M.2 PCIe xCAN to deliver a compact, isolated off-board CAN/CAN FD transceiver that maximizes signal integrity and placement flexibility.
$80.00

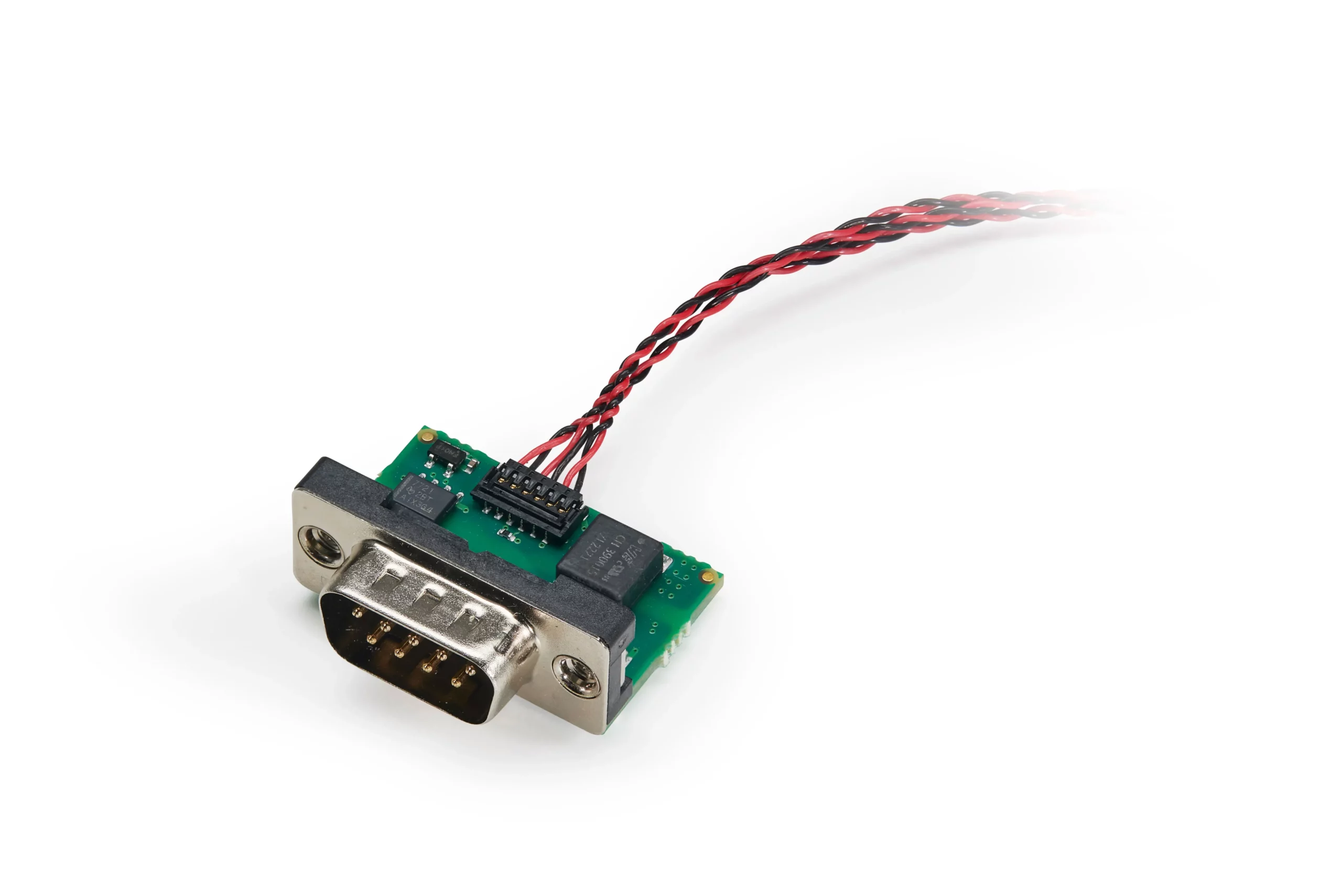

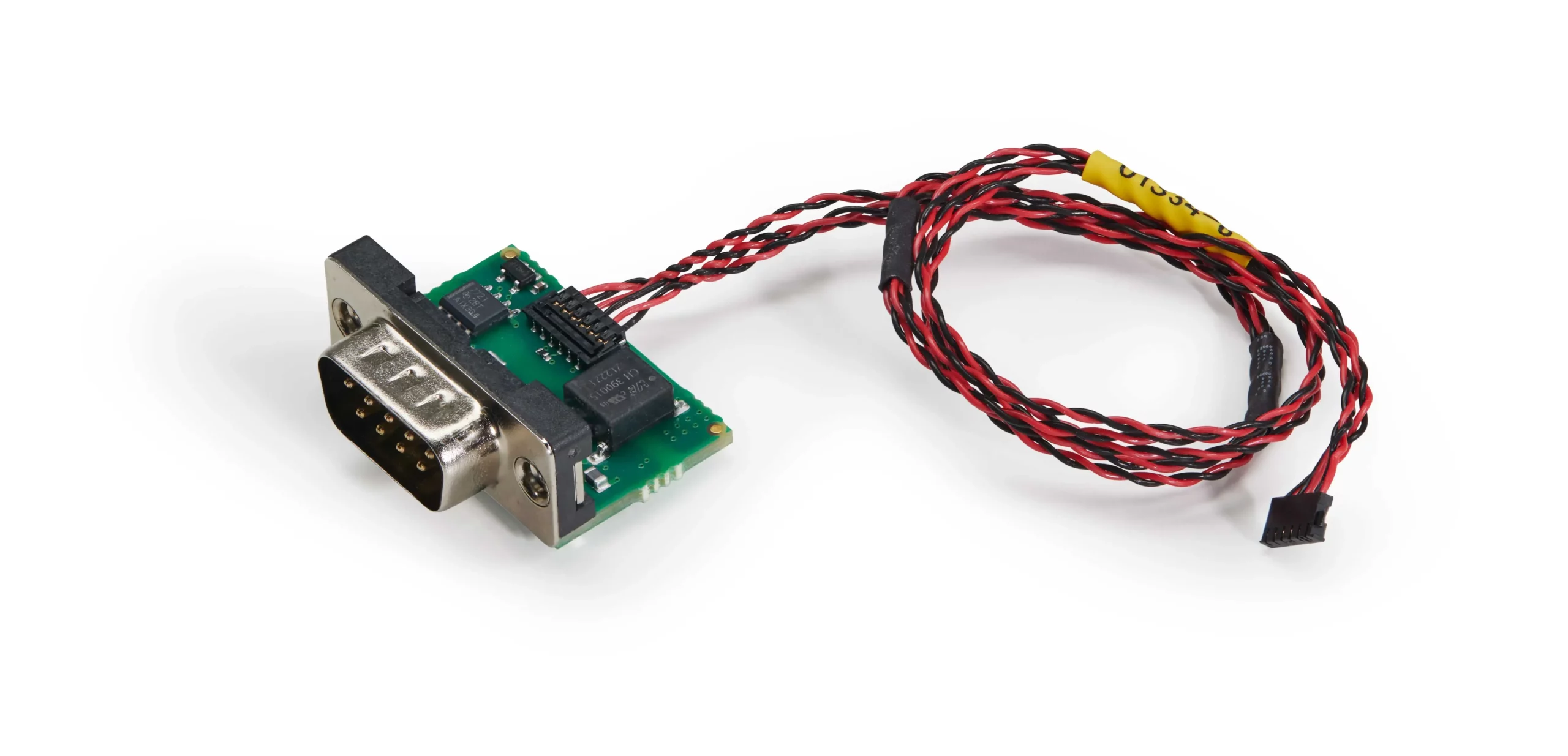

Kvaser Flex DB9 is a compact, galvanically isolated CAN/CAN FD transceiver module featuring an integrated active D-SUB9 connector for robust and standards-compliant CAN interfacing. Designed for use with the Kvaser M.2 PCIe xCAN controller card 01818-1, each module provides one dedicated CAN/CAN FD channel that can be positioned close to the vehicle or industrial CAN wiring for optimal signal integrity.Â
Â
By moving the transceiver and connector off-board the module minimizes stub length, improves EMC performance by facilitating easier EMC zone boundary management and gives system integrators maximum flexibility in channel placement inside the target system.
Â

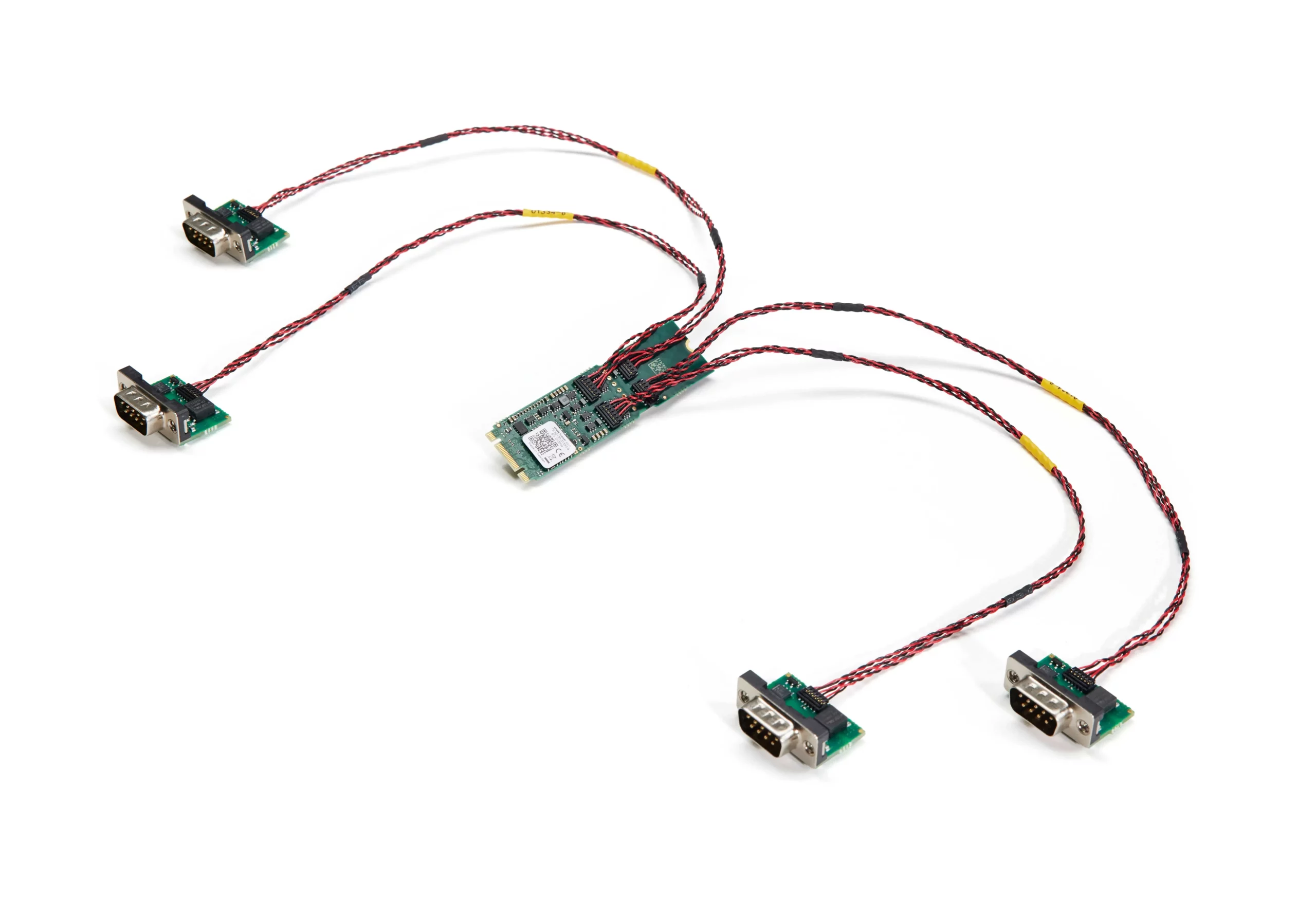

Modules are sold individually, allowing customers to scale from 1 to 4 CAN channels depending on application requirements.
-
Downloads
-
Description
- Active, galvanically isolated CAN/CAN FD transceiver with integrated D-SUB9 connector.
- Designed for the Kvaser M.2 PCIe xCAN controller card (one channel per module).
- CAN FD support up to 8 Mbit/s; high-speed CAN compliant with ISO 11898-2.
- Robust D-SUB9 interface following industry-standard pinout (CiA recommendations).
- Improved signal integrity due to short physical distance to the CAN bus.
- Facilitates easier EMC zone boundary management.
- Compact, lightweight module ideal for embedded system integration.
-
Tech Specs
Bit Rate (kbps)20 - 1000 kbps
Length30 mm
Width26 mm
Weight9.4 g
ConnectorsDSUB 9
CAN FD BitrateUp to 8 Mbit/s
Galvanic IsolationYes
Regulatory ComplianceCE, FCC
Temp range-40 °C to 85 °C
Channels1
-
