EAN: 73-30130-01818-1
Kvaser M.2 PCIe xCAN
Kvaser M.2 PCIe xCAN delivers ultra-compact, high-speed CAN/CAN FD connectivity with exceptional flexibility for advanced embedded systems.
$288.00

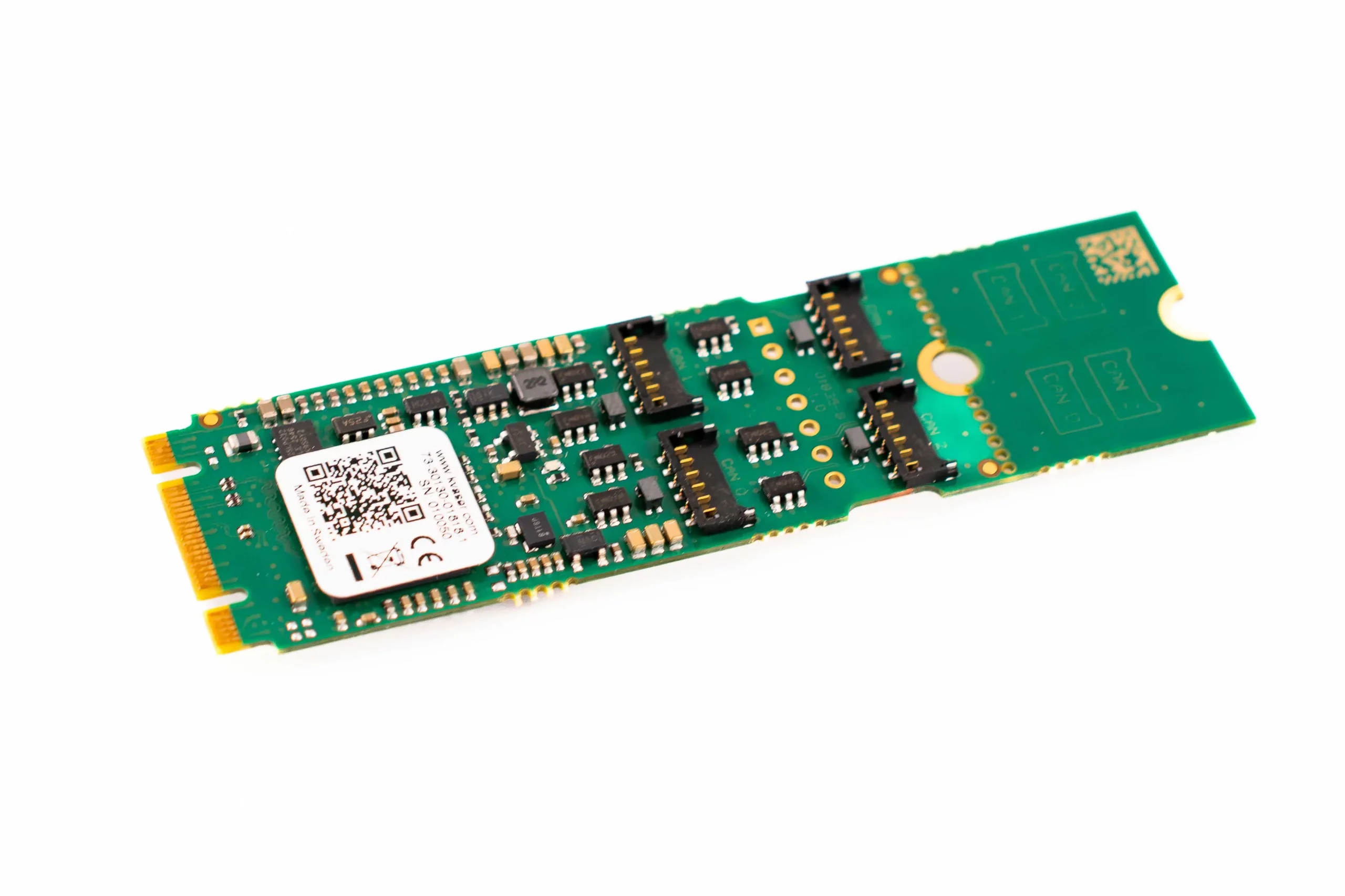

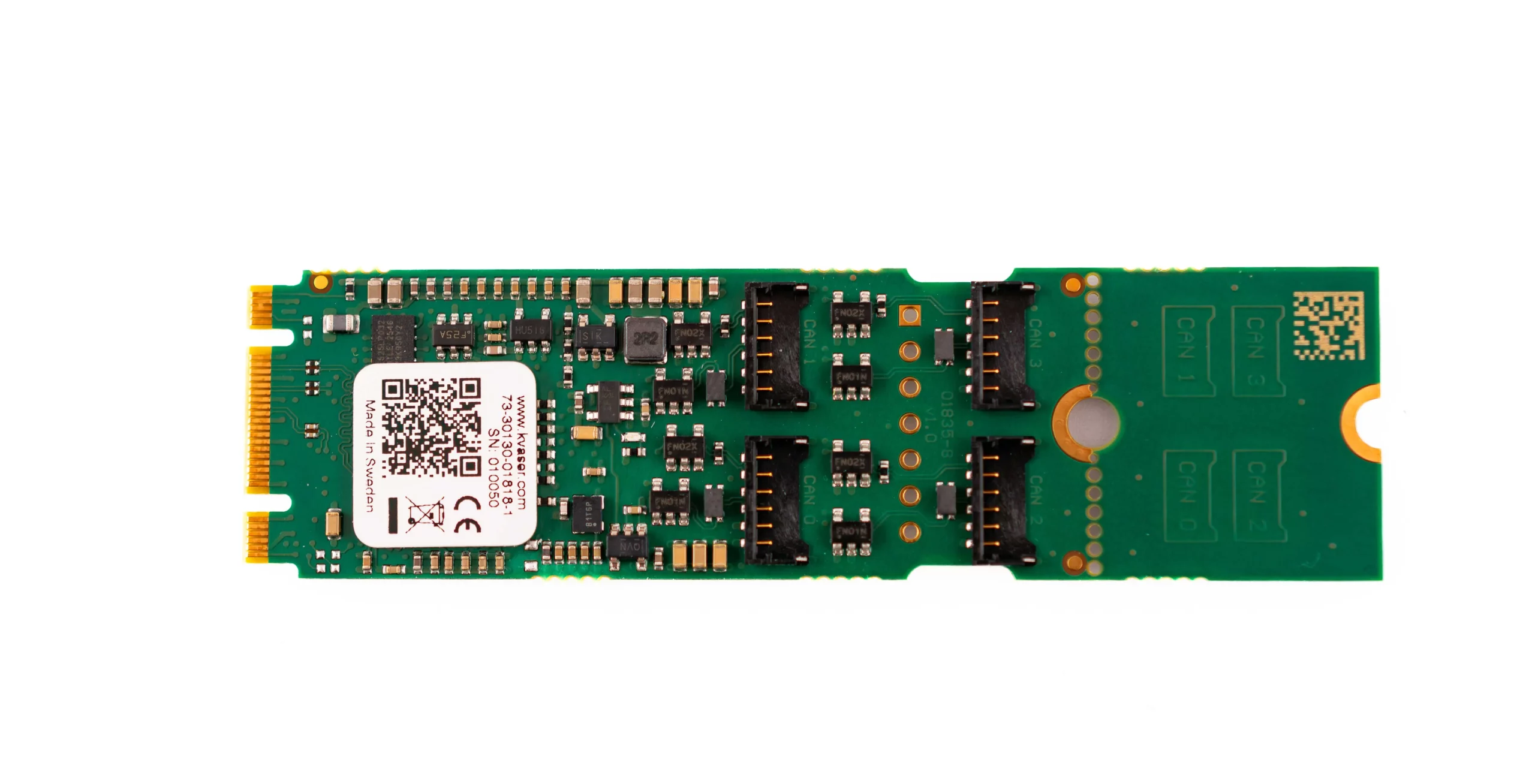

Kvaser M.2 PCIe xCAN is a highly-integrated embedded controller card that adds up to four high speed CAN/CAN FD channels to any host computer with a PCIe interface and an available B or M keyed M.2 slot.Â

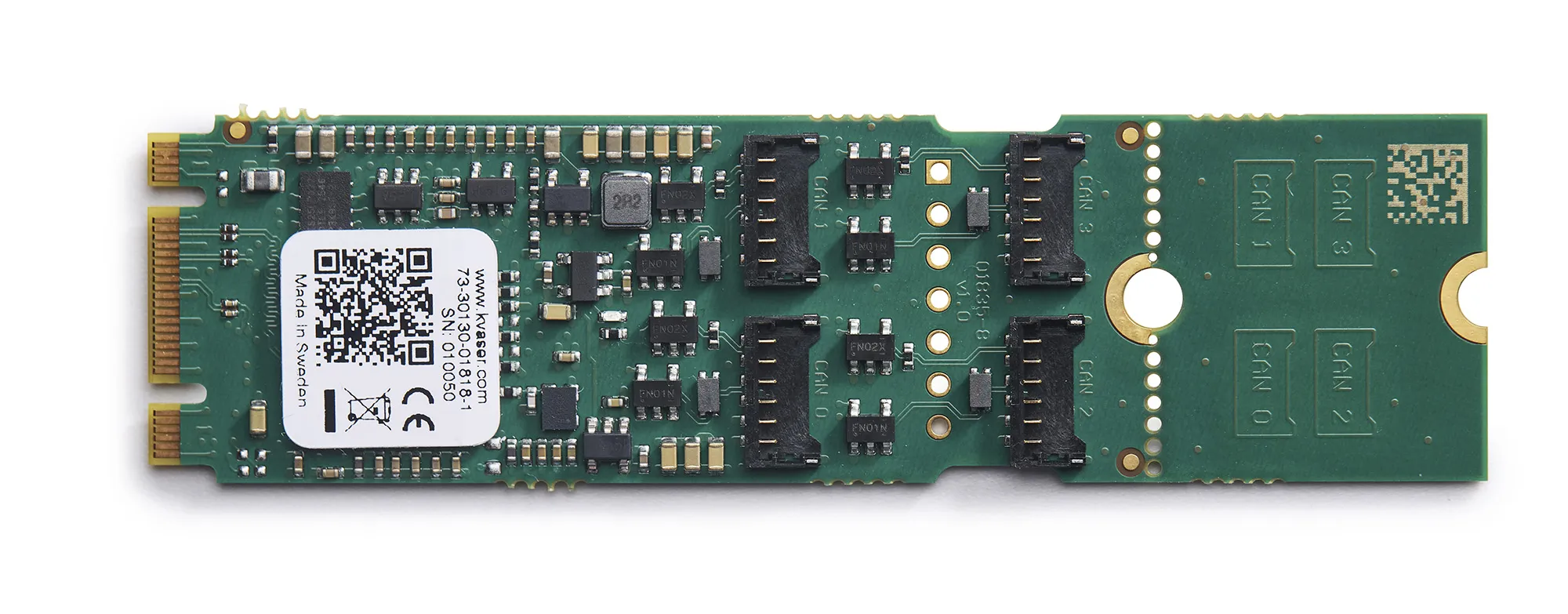

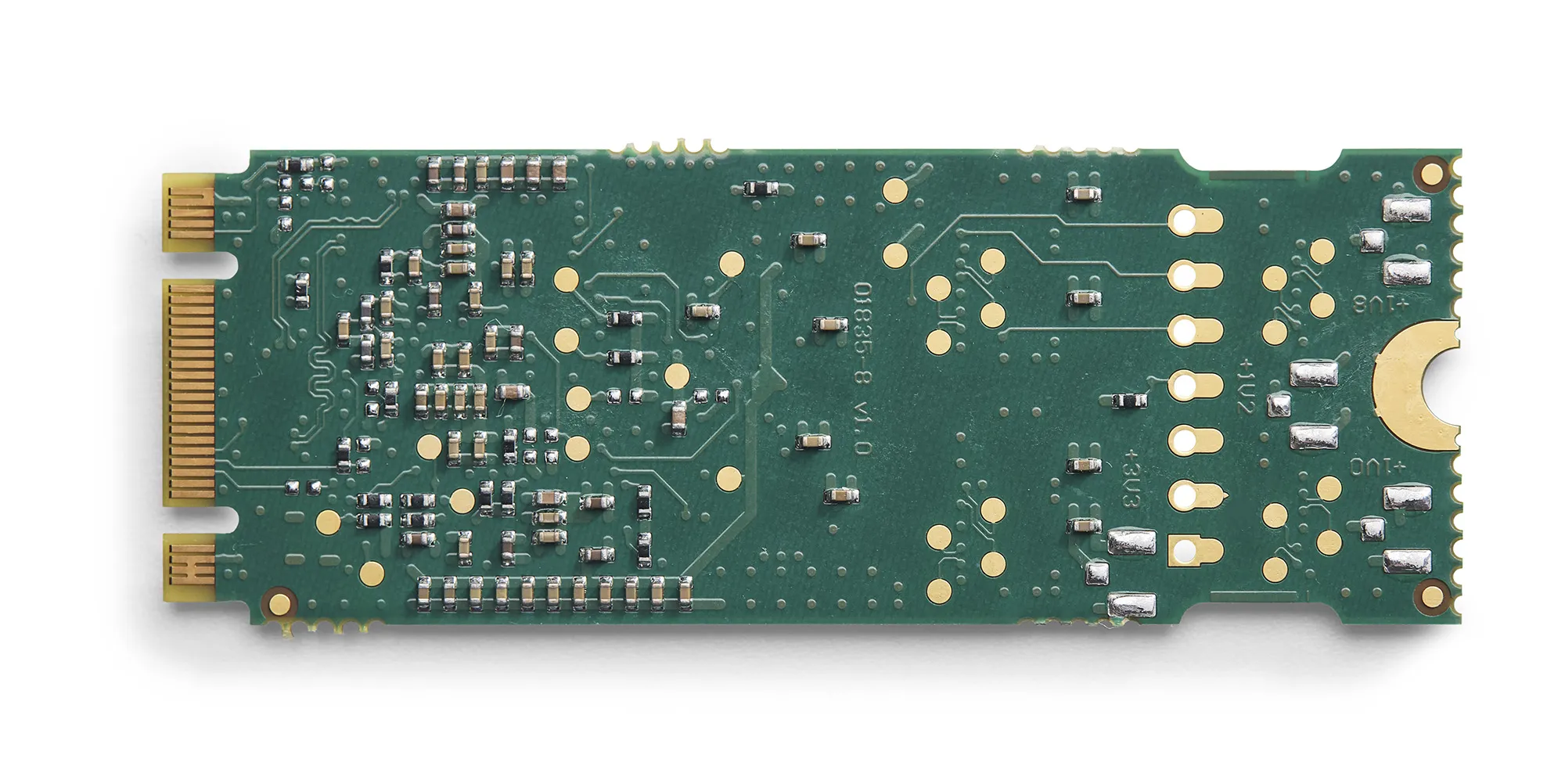

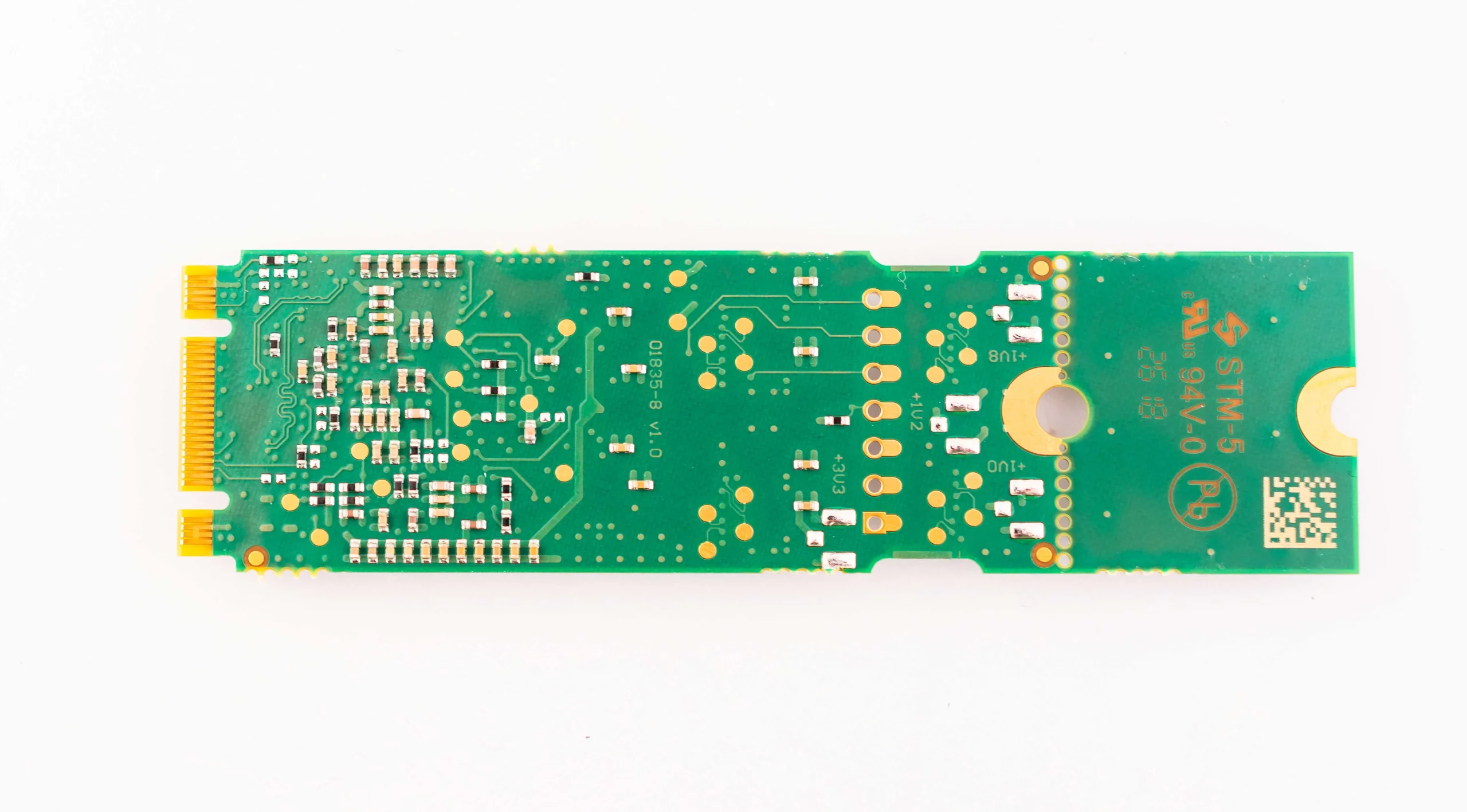

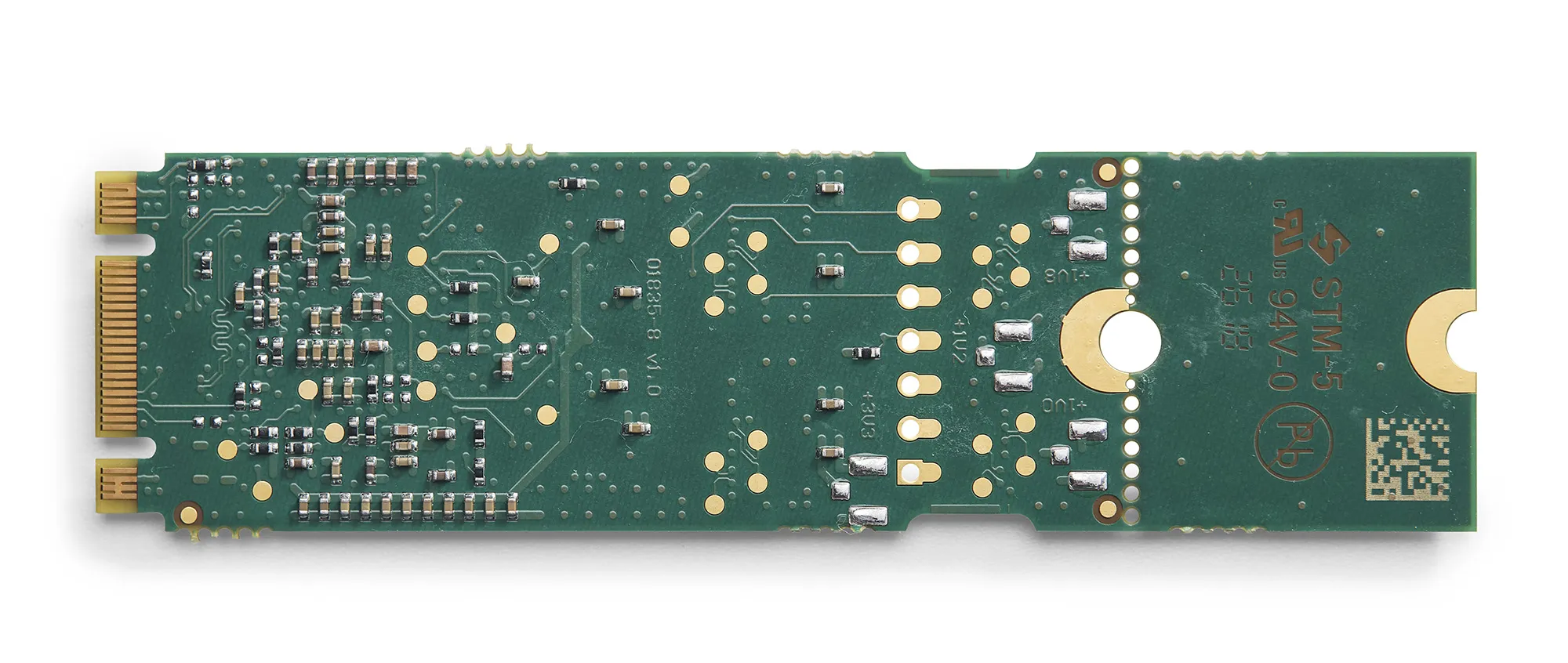

This CAN controller card has an exceptionally compact footprint, as it supports adjustable M.2 lengths. The card measures 22 × 80 mm and can also be configured as 22 × 60 mm for even tighter integrations. Its industry-leading height is just 2 mm.
Â

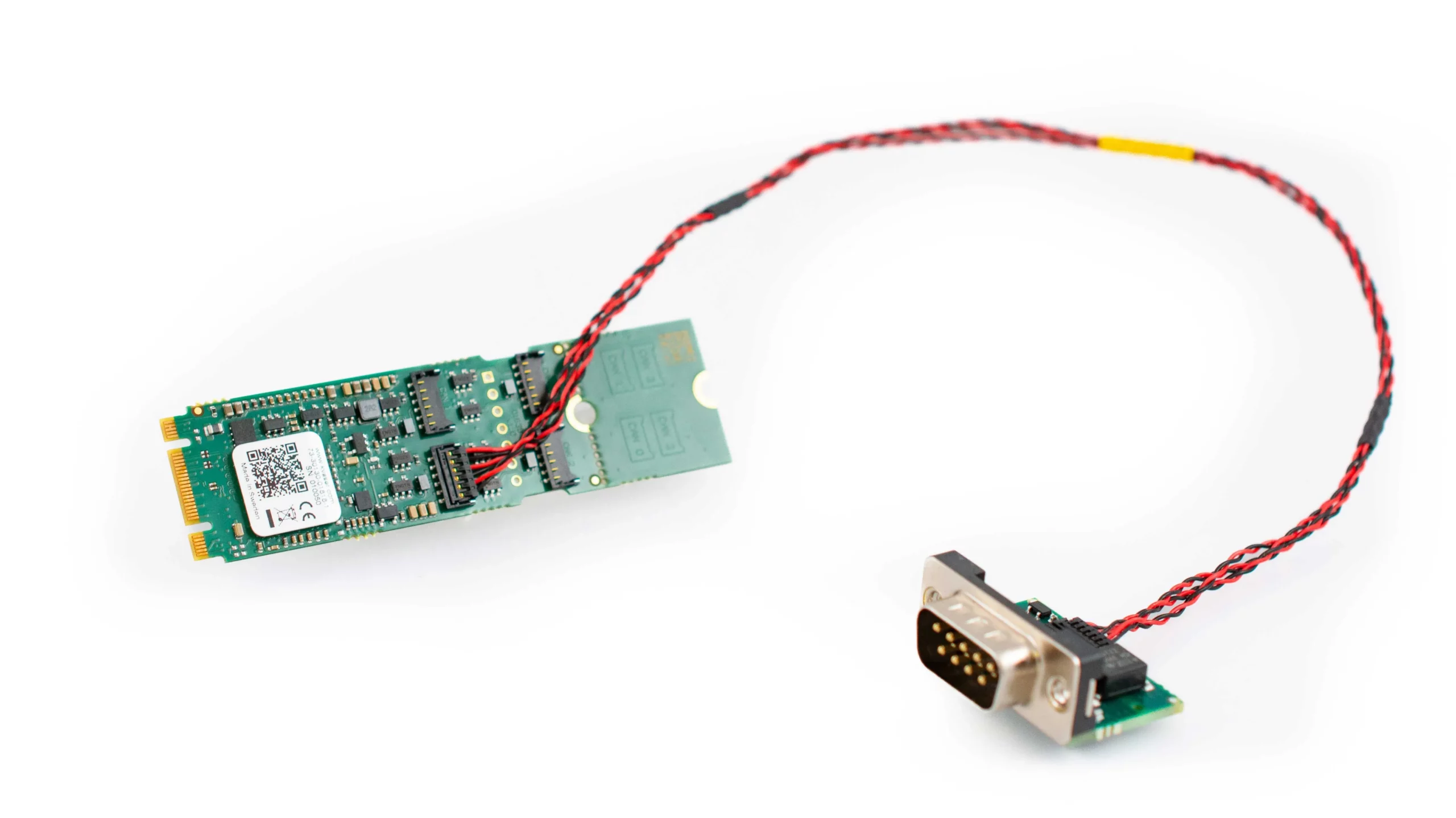

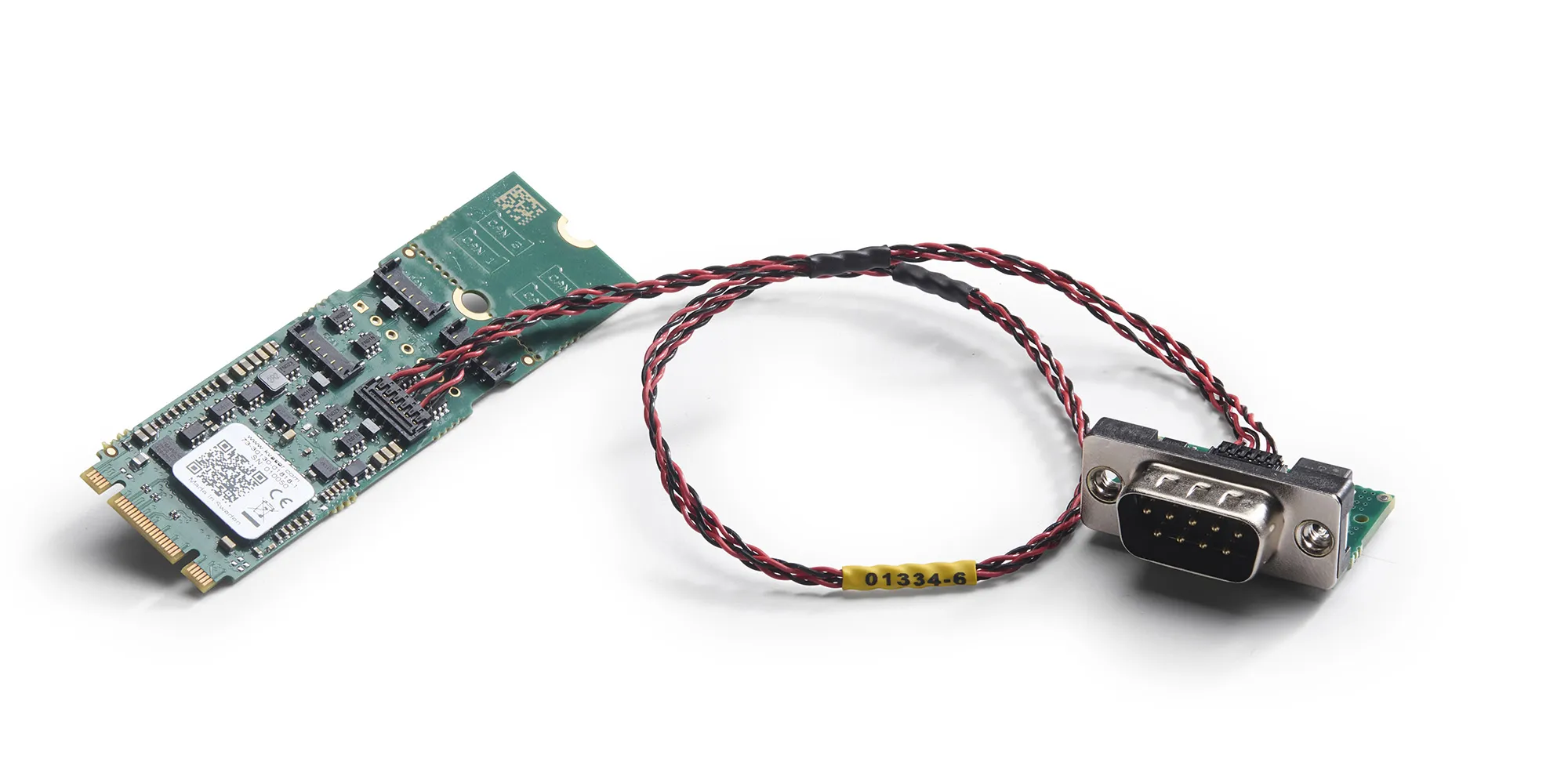

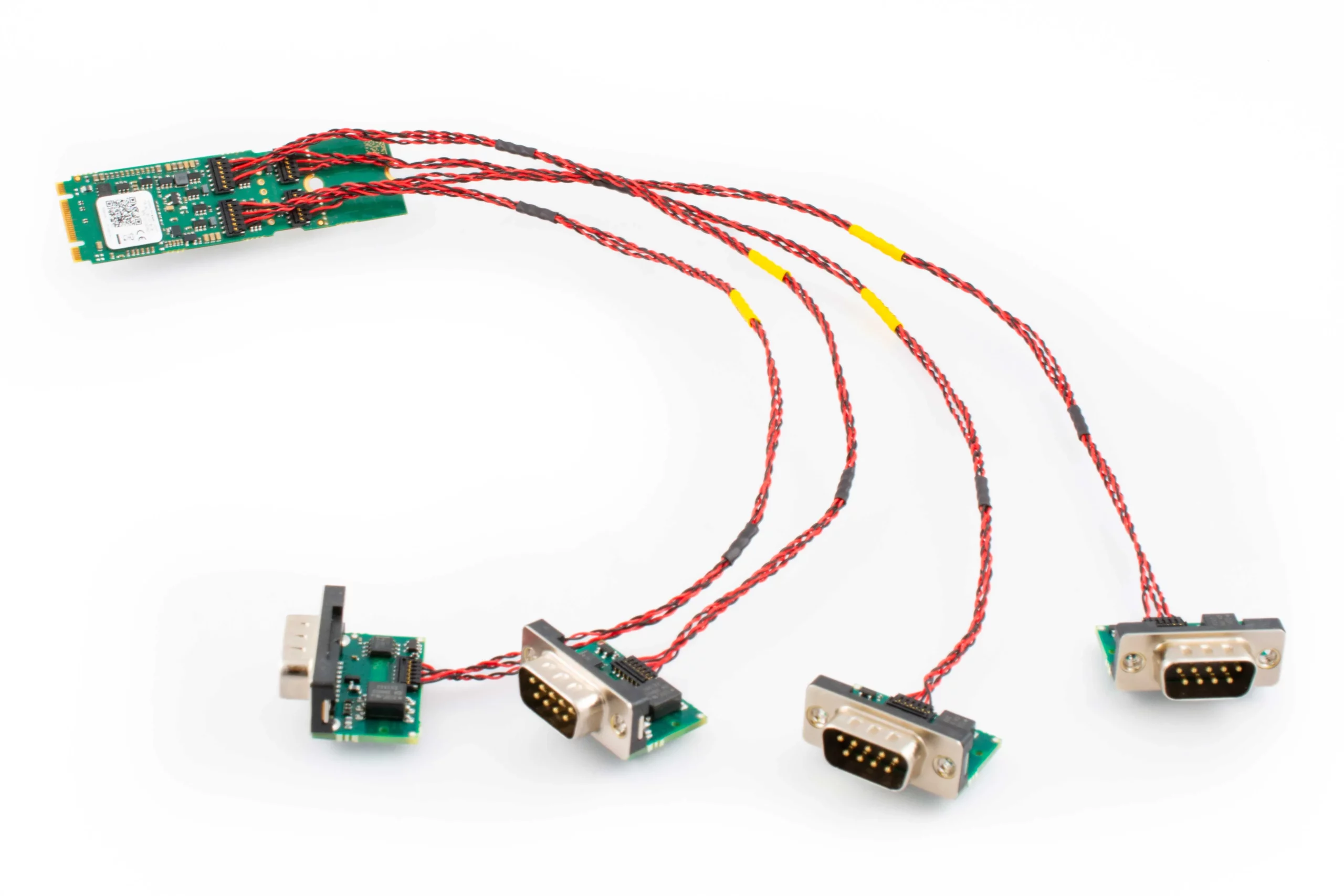

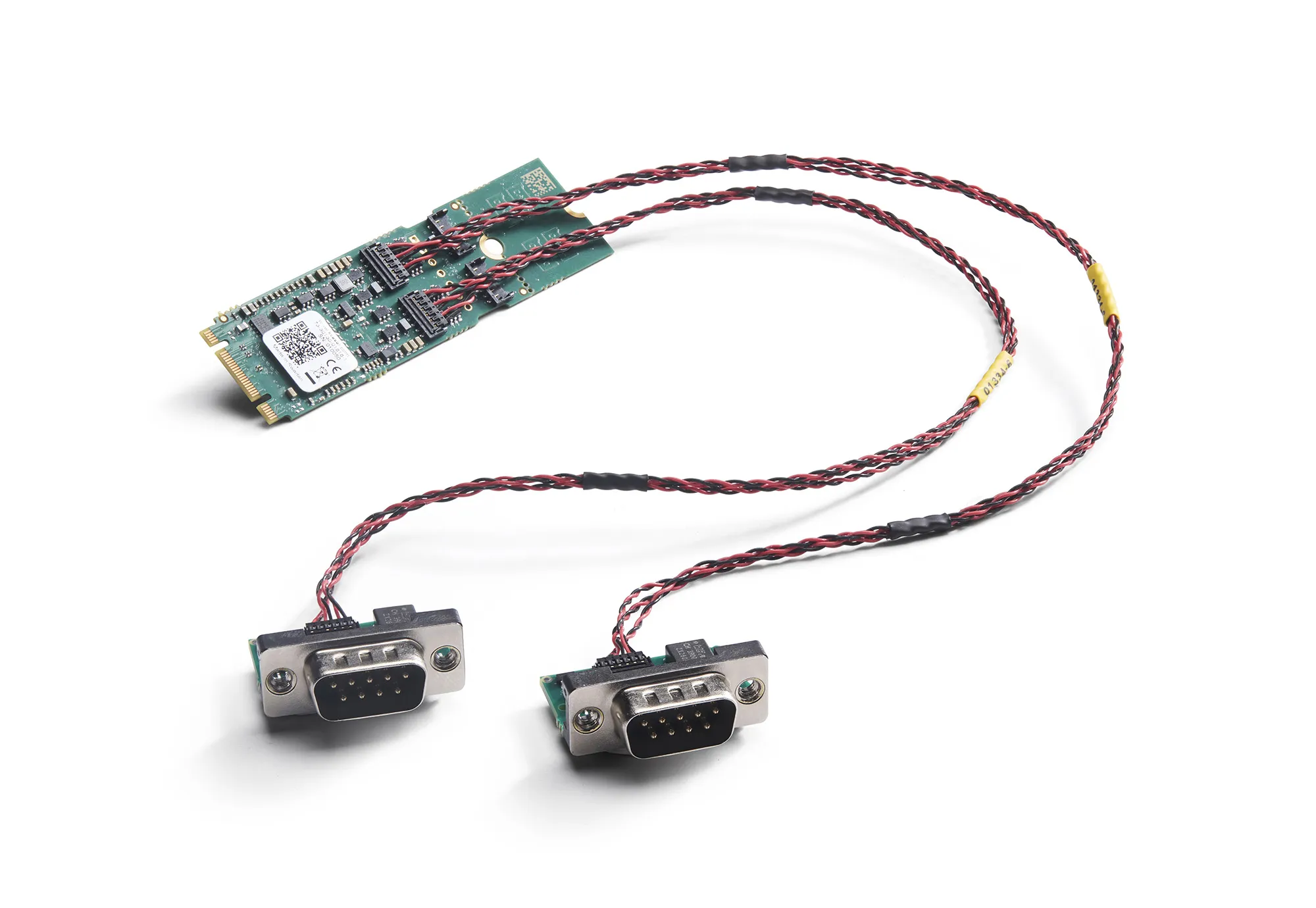

Its CAN transceivers are implemented as separate off-board modules Kvaser Flex DB9Â
01821-1Â enabling flexible placement close to the CAN networks for improved signal integrity while also facilitating easier EMC zone boundary management.
Â
With 1 μs timestamp resolution, up to 20,000 messages/s per channel, and features such as silent mode and error frame detection/generation, it is designed for advanced embedded systems.
Select Required
Kvaser M.2 PCIe xCAN
73-30130-01818-1
Kvaser Software included
CanKing 7
CanKing 7 is Kvaser's CAN & LIN bus analysis software, compatible with all Kvaser CAN and LIN interfaces. Download here separately.
FREE with this product
-
Downloads
Documentation
Download Datasheet
US Letter
Version 1.1.261007
Kvaser M.2 PCIe xCAN User’s Guide
Kvaser M.2 PCIe xCAN User's Guide
Driver
Version 4.1.0
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version 5.53.673
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also con
Version 5.53.676
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
Version 1.24.471
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardwar
Firmware
Version 4.42.0
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Development Kits and Tools
Version 5.53.676
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for
Version 1.0.1
Kvaser D-PDU Library
D-PDU API (ISO-22900) for Kvaser CANLib Modules (Interfaces) as a C library
Version 7.0.0
Kvaser DBC Editor 7 for Linux amd64
The Kvaser DBC Editor 7 is a powerful tool for creating and editing .dbc files, with support for both Windows and Linux.
Version 7.0.0
Kvaser DBC Editor 7 for Windows x86-64
The Kvaser DBC Editor 7 is a powerful tool for creating and editing .dbc files, with support for both Windows and Linux.
Version 1.0.0
Kvaser ISO-TP Library
Kvaser ISO-TP (ISO 15765-2) Library
Version 1.0.1
Kvaser J1939 Library
J1939 transport protocol and address claim for Kvaser CANLib
Version 1.0.0
Kvaser J2534 05.00 PassThru API
The J2534 05.00 PassThru API, supporting all Kvaser CAN interfaces with both 32-bit and 64-bit application support.
Version 23.1.0
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version 1.34.0
Kvaser PyCANlib
A python wrapper for the Kvaser CANlib SDK.
Version 6.1.0
Kvaser RP1210C API
Support library for using RP1210-compliant applications with Kvaser CAN interfaces
Version 5.53.676
Linux SDK library
Linux SDK library. Provides extended libraries for accessing dbc files, controlling data logger family, and converting/extracting log files.
Version 1.0.1
Wireshark Plugin for Linux amd64
Wireshark plugin for Kvaser CAN Interfaces.
Version 1.0.1
Wireshark Plugin for Windows
Wireshark plugin for Kvaser CAN Interfaces.
Version 7.6.0
Kvaser CanKing 7 for Linux amd64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.0
Kvaser CanKing 7 for Linux arm64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.0
Kvaser CanKing 7 for Windows x86-64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.0
Kvaser CanKing 7 Service for Linux amd64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.0
Kvaser CanKing 7 Service for Linux arm64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
-
Description
- B+M keyed M.2 PCI Express CAN interface with up to four channels.

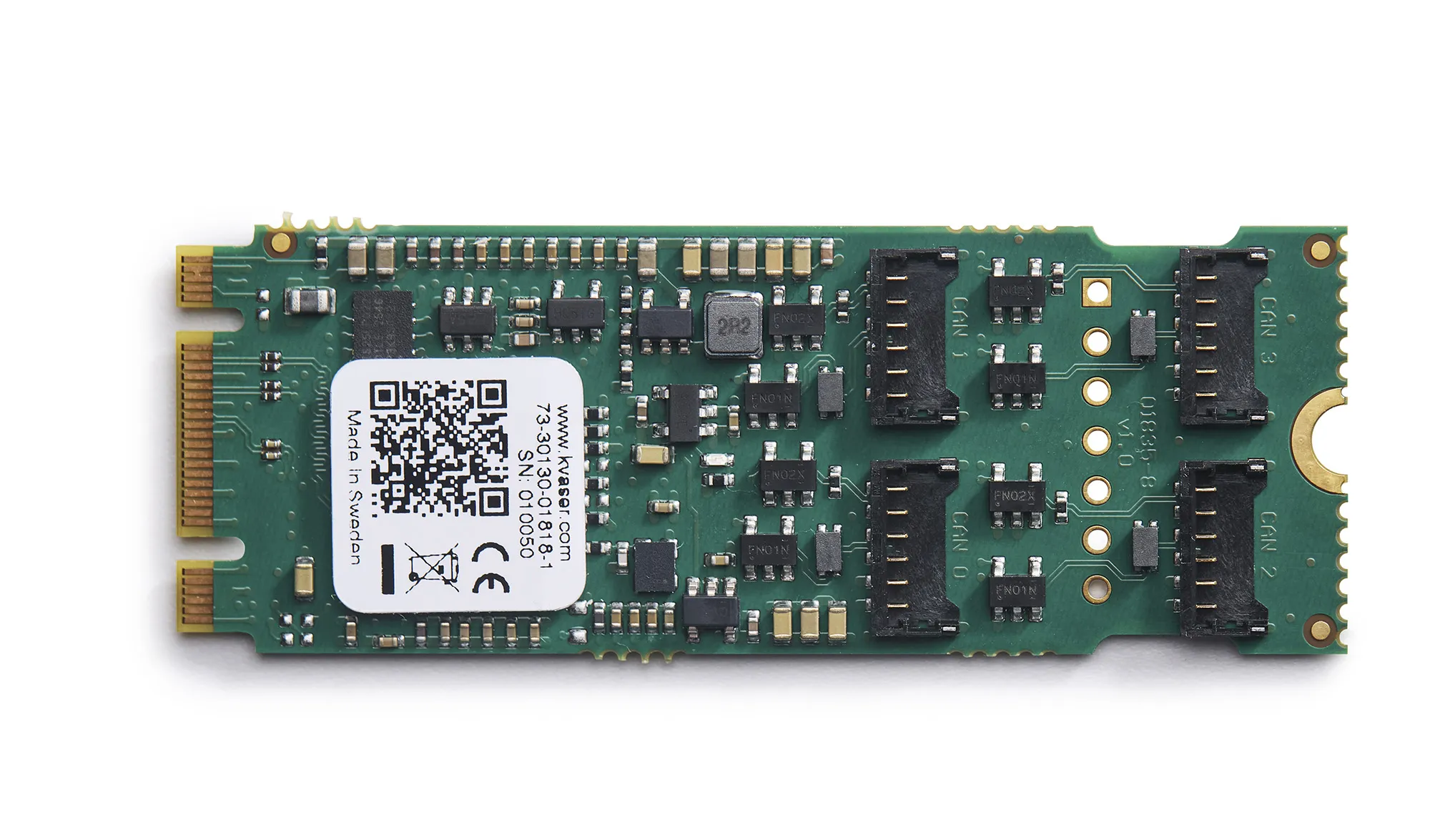

- Breakable to fit in both 60 and 80 mm slots.

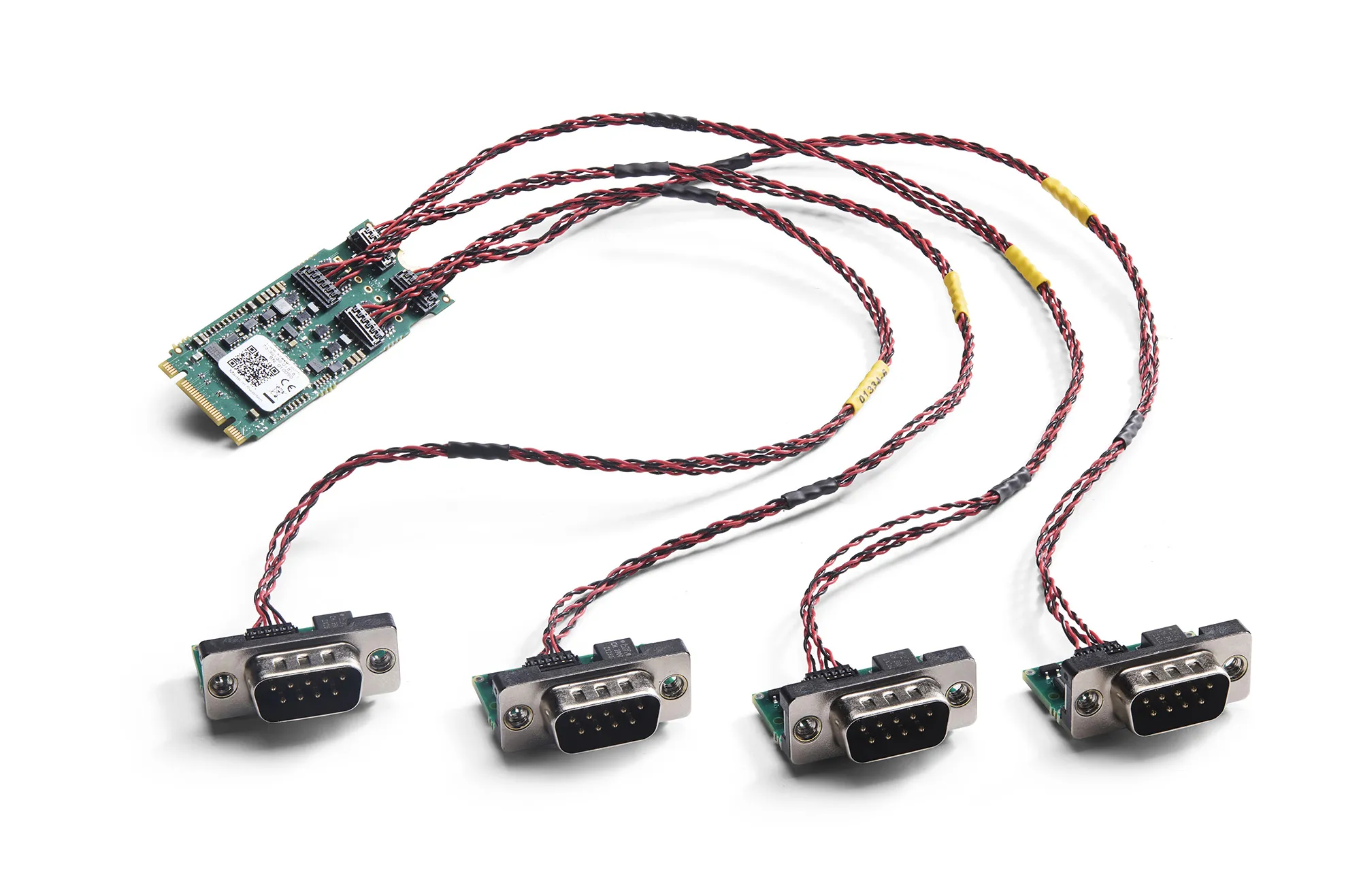

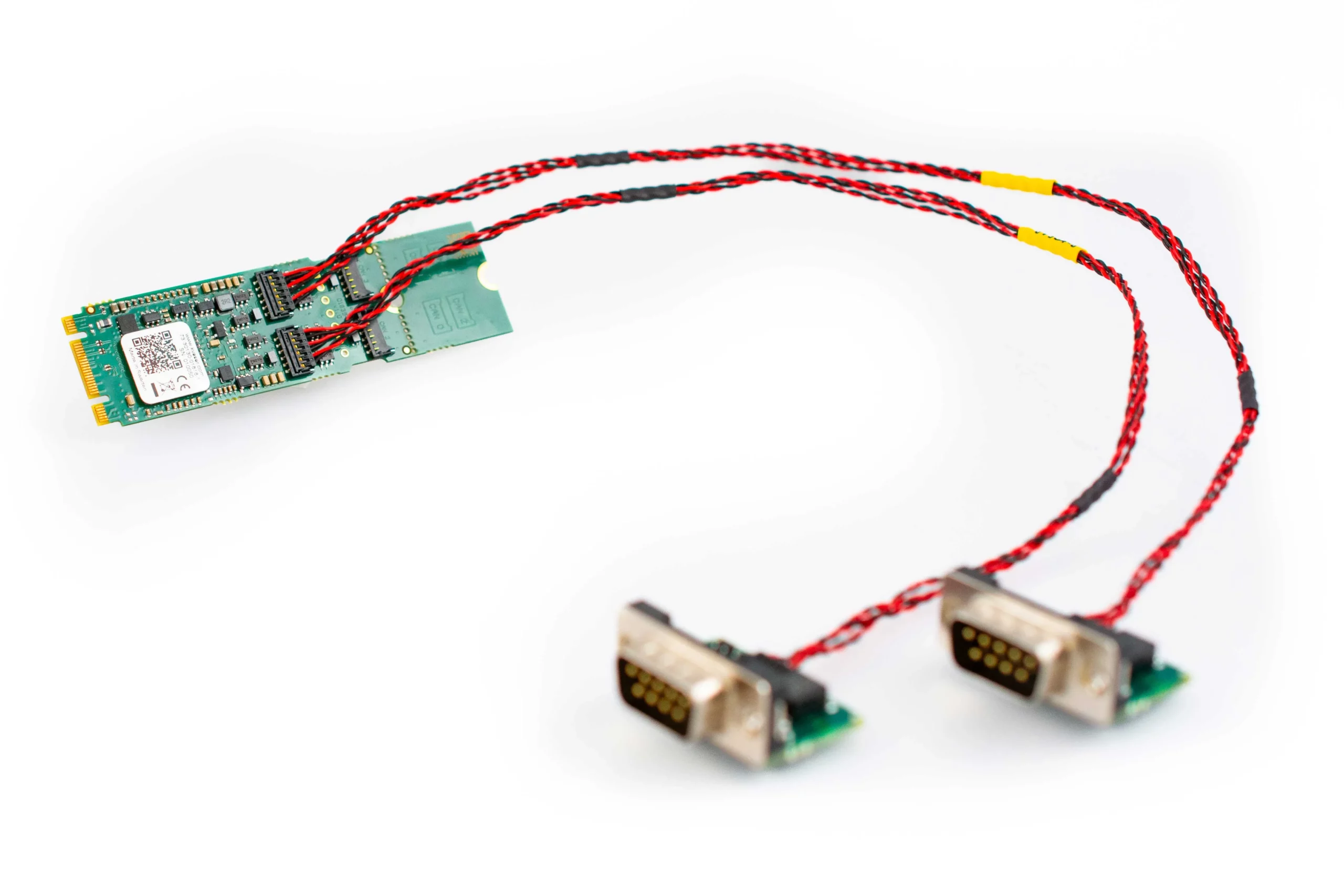

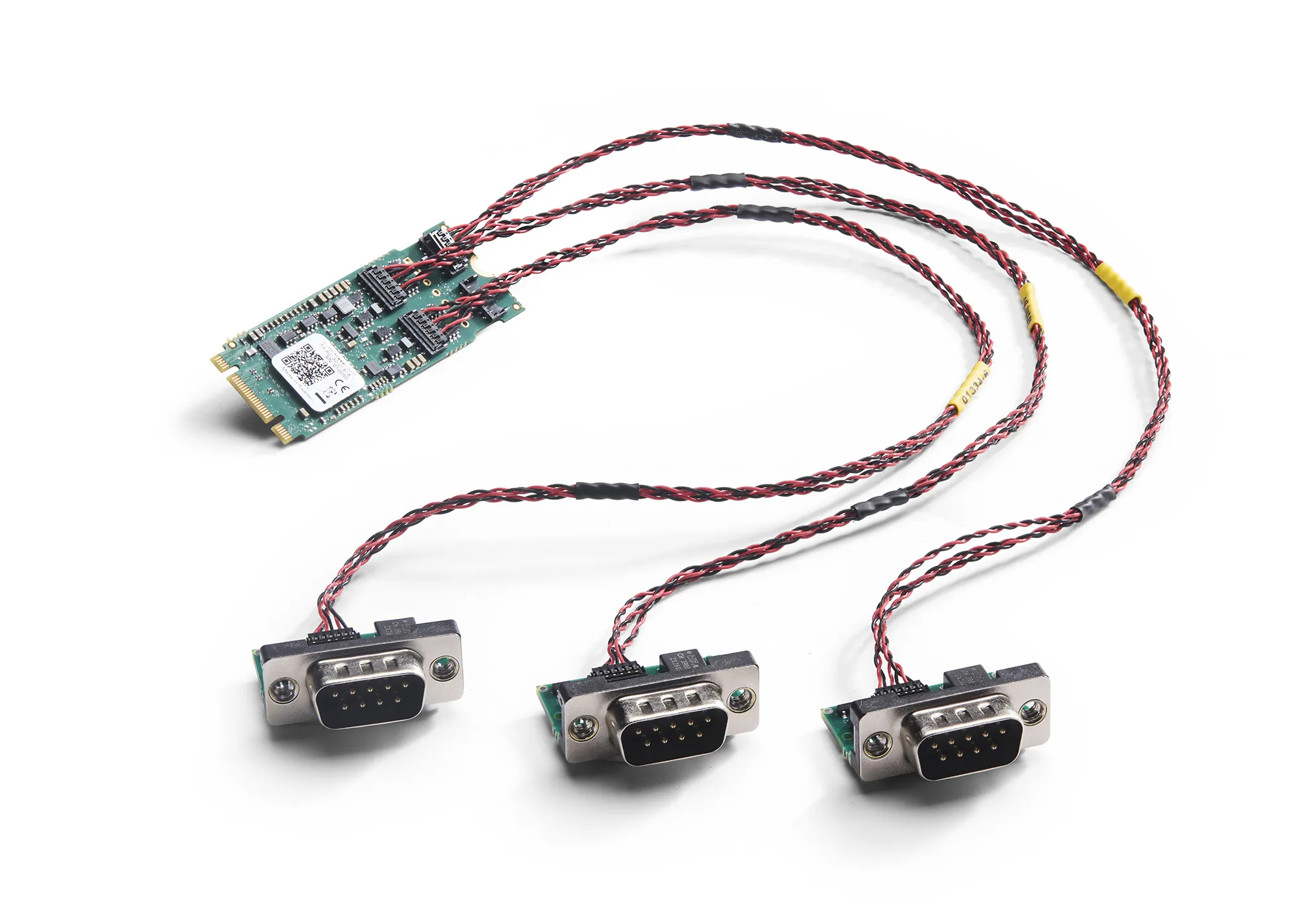

- Flexibility to select from 1 up to 4 channels, depending on current installation and needs,Â
(CAN modules sold separately, EAN: 73-30130-01821-1)
- Distributed CAN modules minimise the signal integrity impact when connected to CAN-bus systems.
- Facilitates easier EMC zone boundary management.
- Supports CAN FD, up to 8 Mbit/s.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces and SocketCAN.
- Quick and easy plug-and-play installation.
- Kvaser’s free of charge CANLIB SDK can be used to develop software for these boards.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application. For software support please see our Technical Associates products and our Software Download page (www.kvaser.com).Â
-
Tech Specs
Windows 10 (IA-32 and x86-64), Windows 11 (x86-64), Linux
-
