EAN: 73-30130-01494-7
ShareKvaser Air Bridge M12
A compact, advanced wireless device that seamlessly bridges CAN networks, with easy setup, free pairing and flexible configuration.
USD682.00
EAN: 73-30130-01494-7
ShareKvaser Air Bridge M12
A compact, advanced wireless device that seamlessly bridges CAN networks, with easy setup, free pairing and flexible configuration.
USD682.00

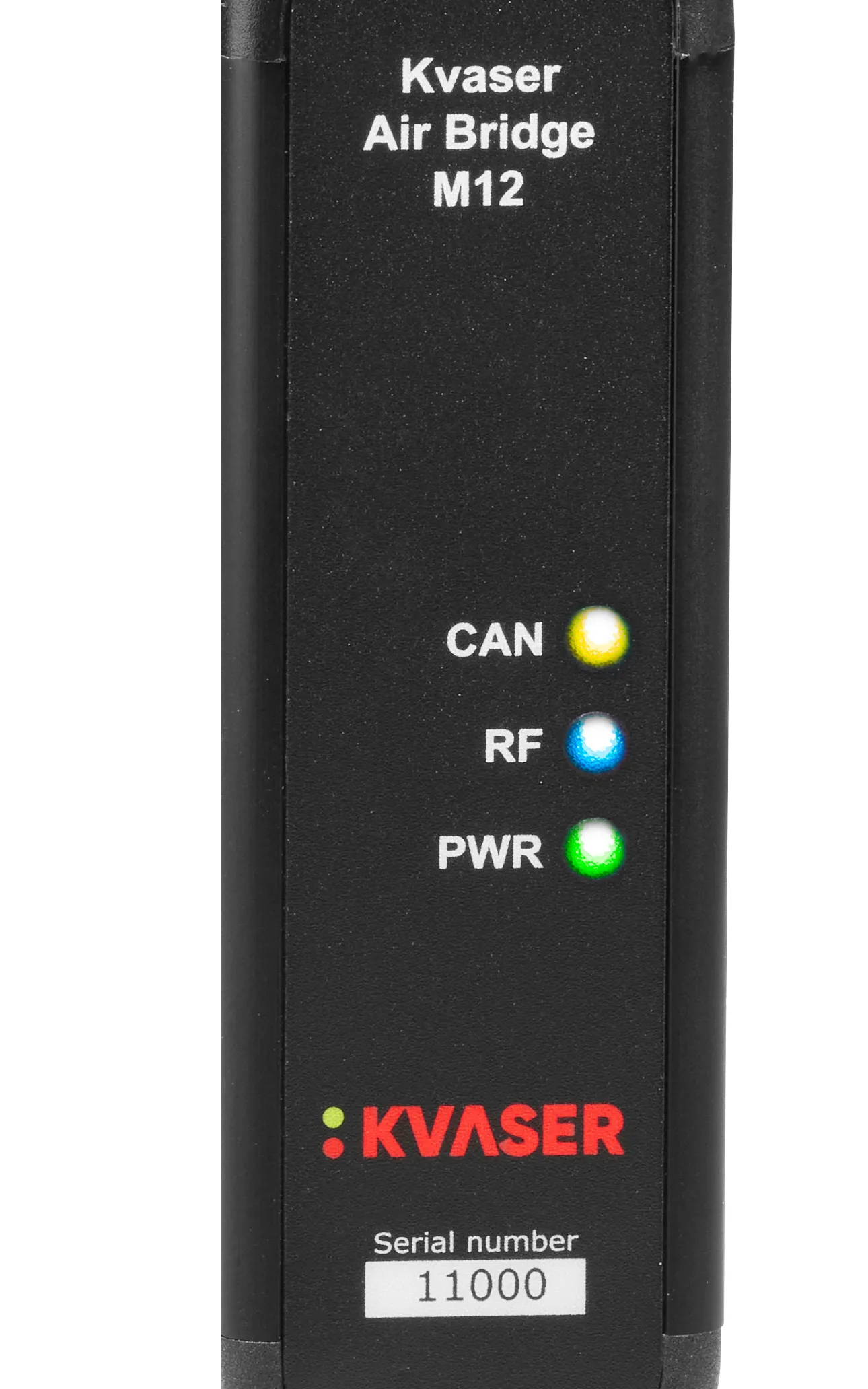

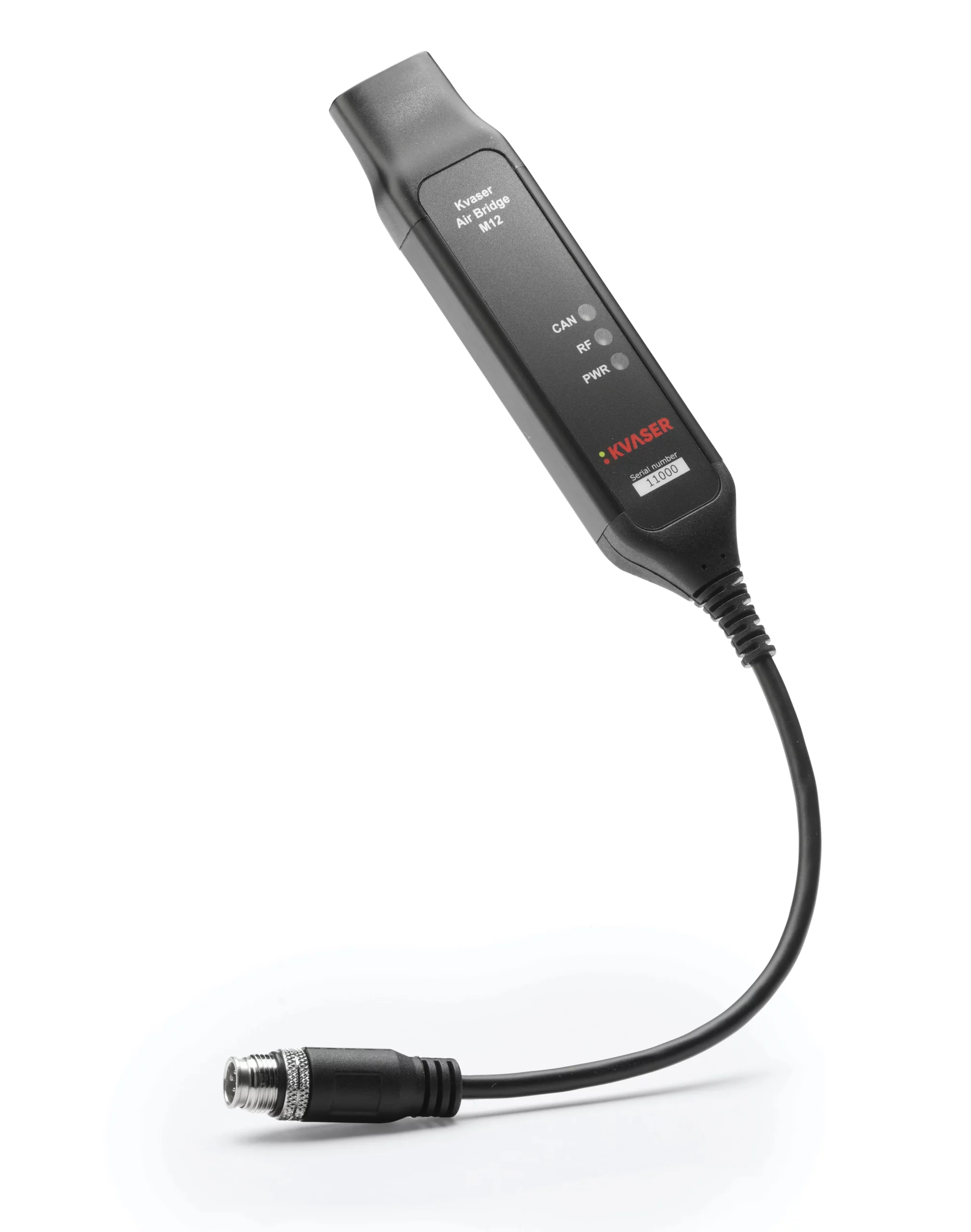

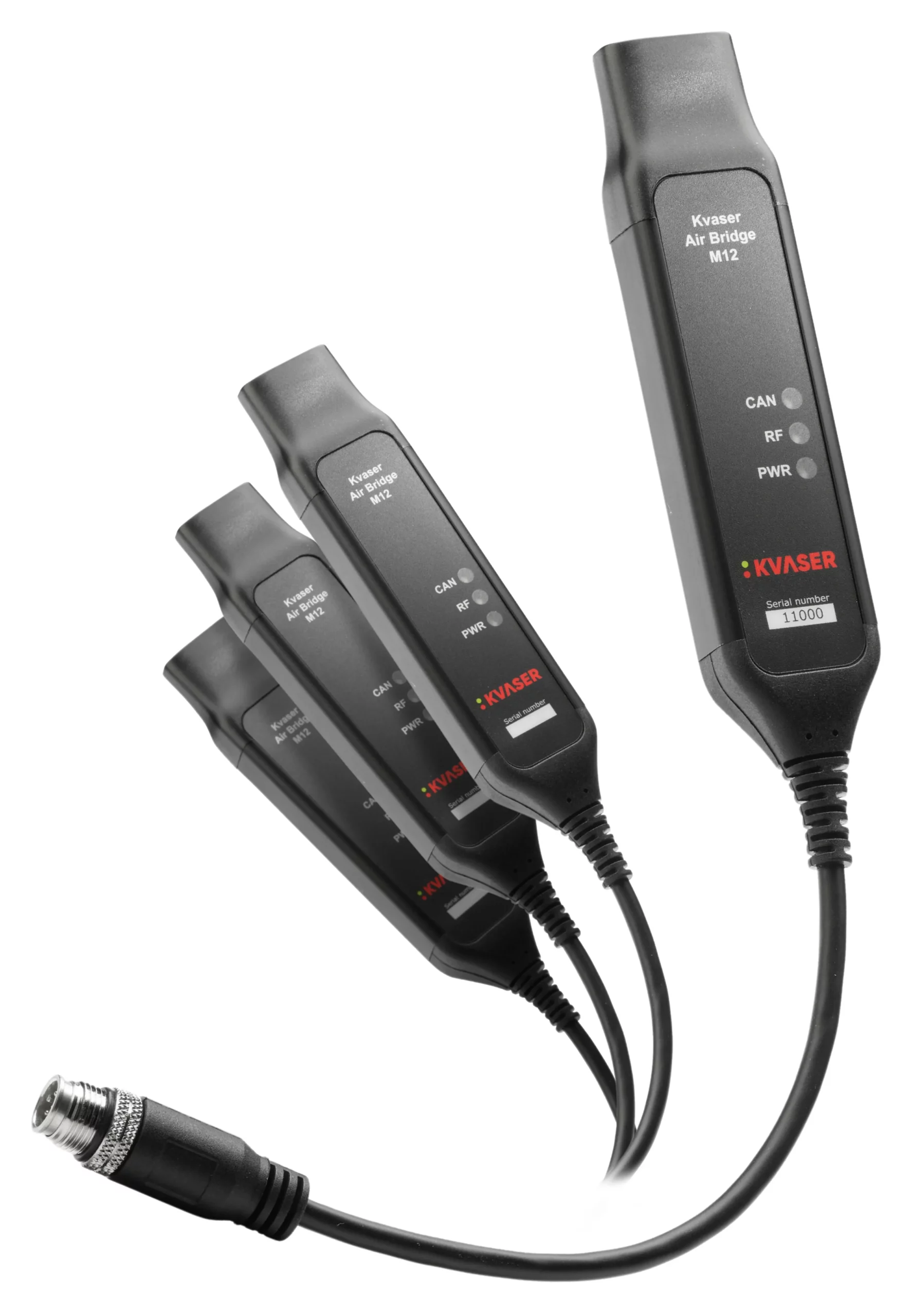

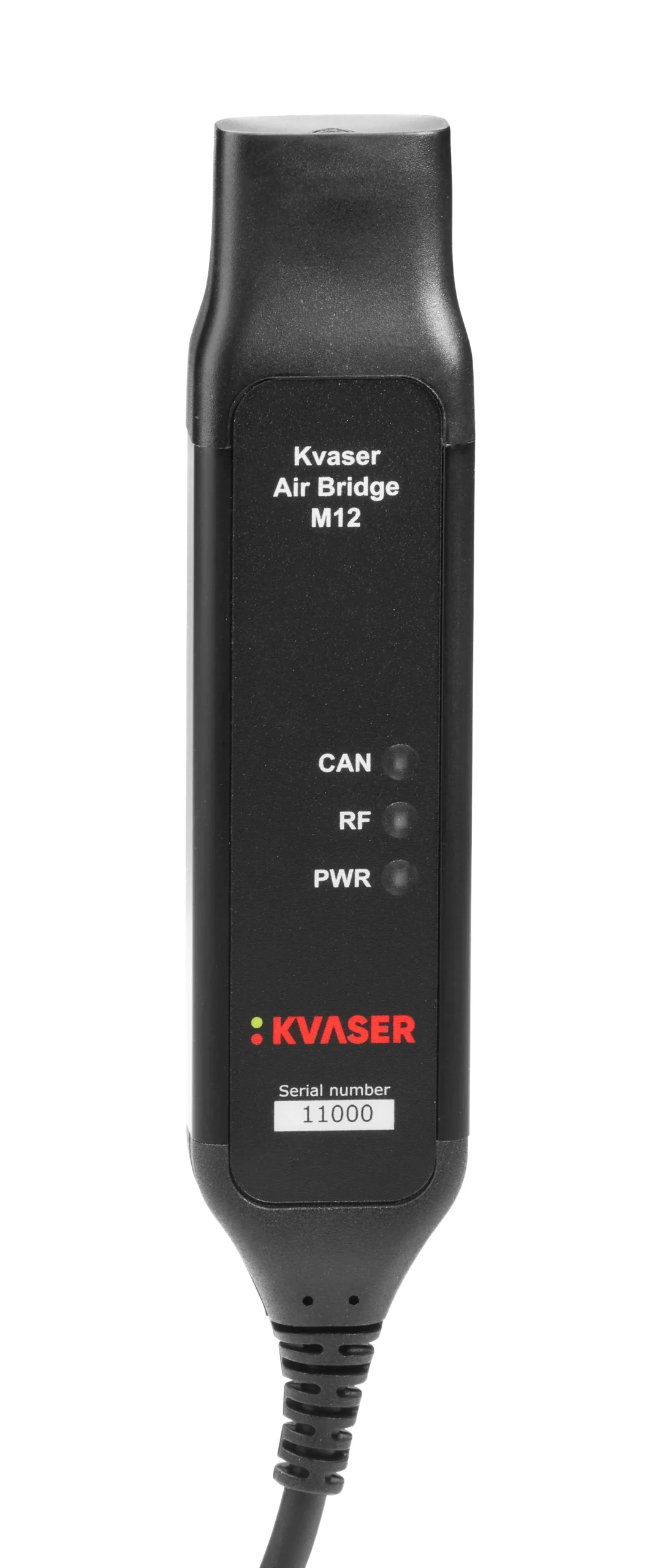

Kvaser Air Bridge M12 is a small, yet advanced, wireless CAN bridge that can be used to form a CAN system bridge between two CAN networks. This radio solution can be used to connect CAN based control systems and test equipment in scenarios and situations where it is desirable to replace cabling and related parts.
The Kvaser Air Bridge M12 is designed for ease of use, while retaining a certain flexibility for the user by means of configuration; choose between ’one to one’, or ’one to any’. With uniquely low and predictable latency compared to other wireless technologies, the Kvaser Air Bridge M12 is well-suited for control tasks in remote-control applications with systems that require rapid response. The Kvaser Air Bridge Utility CLI enables a user to commission Kvaser Air Bridge M12 devices in a simple and straight-forward fashion.
-
Downloads
-
Description
Major features
- Forms a wireless CAN bridge between two Kvaser Air Bridge devices.
- Can be paired with any other Kvaser Air Bridge M12Â device to form a point-to-point radio link.
- High-speed CAN connection (compliant with ISOÂ 11898-2), up to 1 Mbit/s.
- Driver-free and only limited configuration required.
- Provides configuration flexibility to support a wide variety of application requirements.
- Pairing, configuration and link status via management protocol over the CAN bus.
- Active discovery feature that detects available Kvaser Air Bridge M12 devices for pairing.
- Proprietary wireless protocol for high robustness, very low latency and to enable link establishment and connection in an instant.
- Internal antenna design with polarization diversity.
- Automatic bit rate detection or user configured.
- Bit rate conversion between CAN bus systems with different bit rates.
- IP65-rated, dust- and water-resistant housing.
- IP67-rated M12 connector for cabling with extra dustand water-tightness, suitable for outdoor installation.
- Extended operating temperature range.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation is handled by the user´s application. For software support please see our Technical Associates products and our Software Download page (www.kvaser.com).
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at www.kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com. -
Tech Specs
CAN FD Bitrate1 Mbit/s, 500 kbit/s, 250 kbit/s and 125 kbit/s
CategoriesCABLES, Interfaces, Hardware, CAN, Accessories
CertificatesCE, RoHS
Channels1
ConnectorsM12 5 pin
Error Counters ReadingNo
Error Frame GenerationNo
Galvanic IsolationNo
Height17 mm
Length151 mm
OSWin 7, Win 8, Win 10, Linux
Silent modeNo
SoundNo
Temp range-40 °C to 70 °C
Timestamp Resolution (µs)1 µs
Weight85 g
-
Media
-
Where to Buy
-
View Software
WE HAVE OVER 79 UNIQUE SOFTWARE OPTIONS TO PAIR WITH KVASER HARDWARE
As well as having a premium global reseller network, Kvaser provides all it’s customers with access to a large number of tailored software that works perfectly with Kvasrer hardware.
Kvaser-Compatible Software Provided by 79 Software Partners
Share

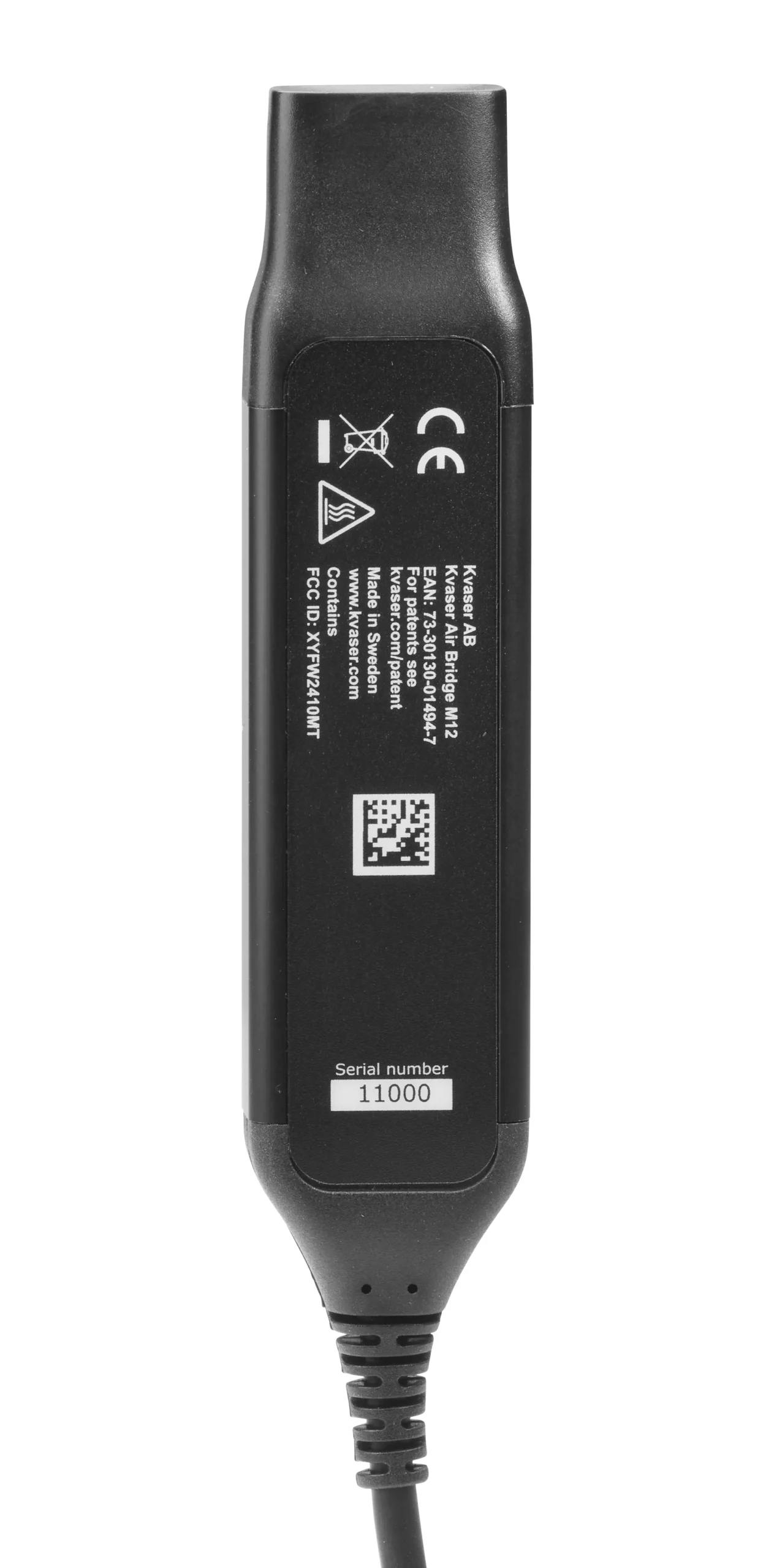

Where is the Serial Number?
