EAN: 73-30130-01524-1
ShareKvaser USBcan Pro 5xCAN
$2,064.00 USD

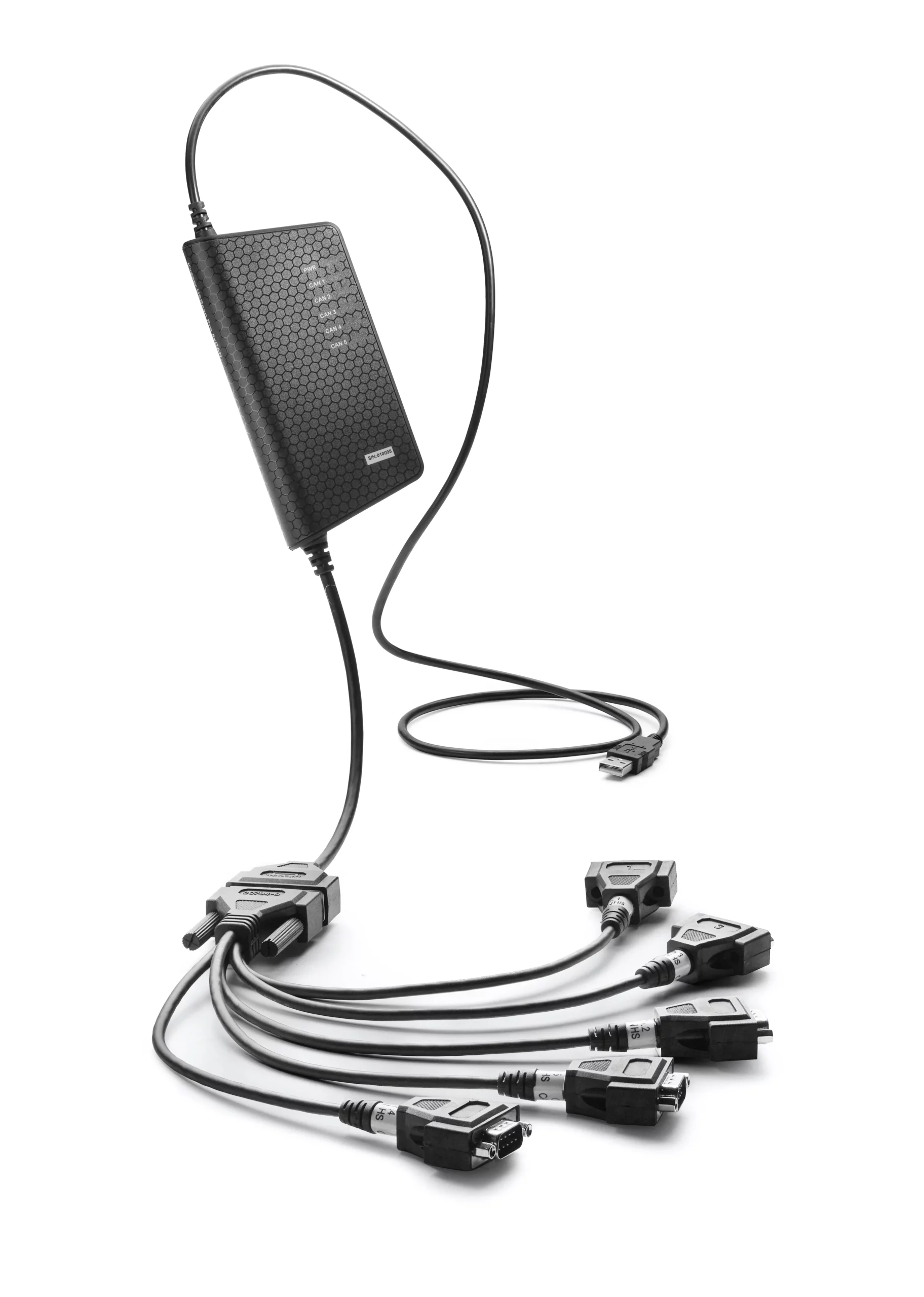

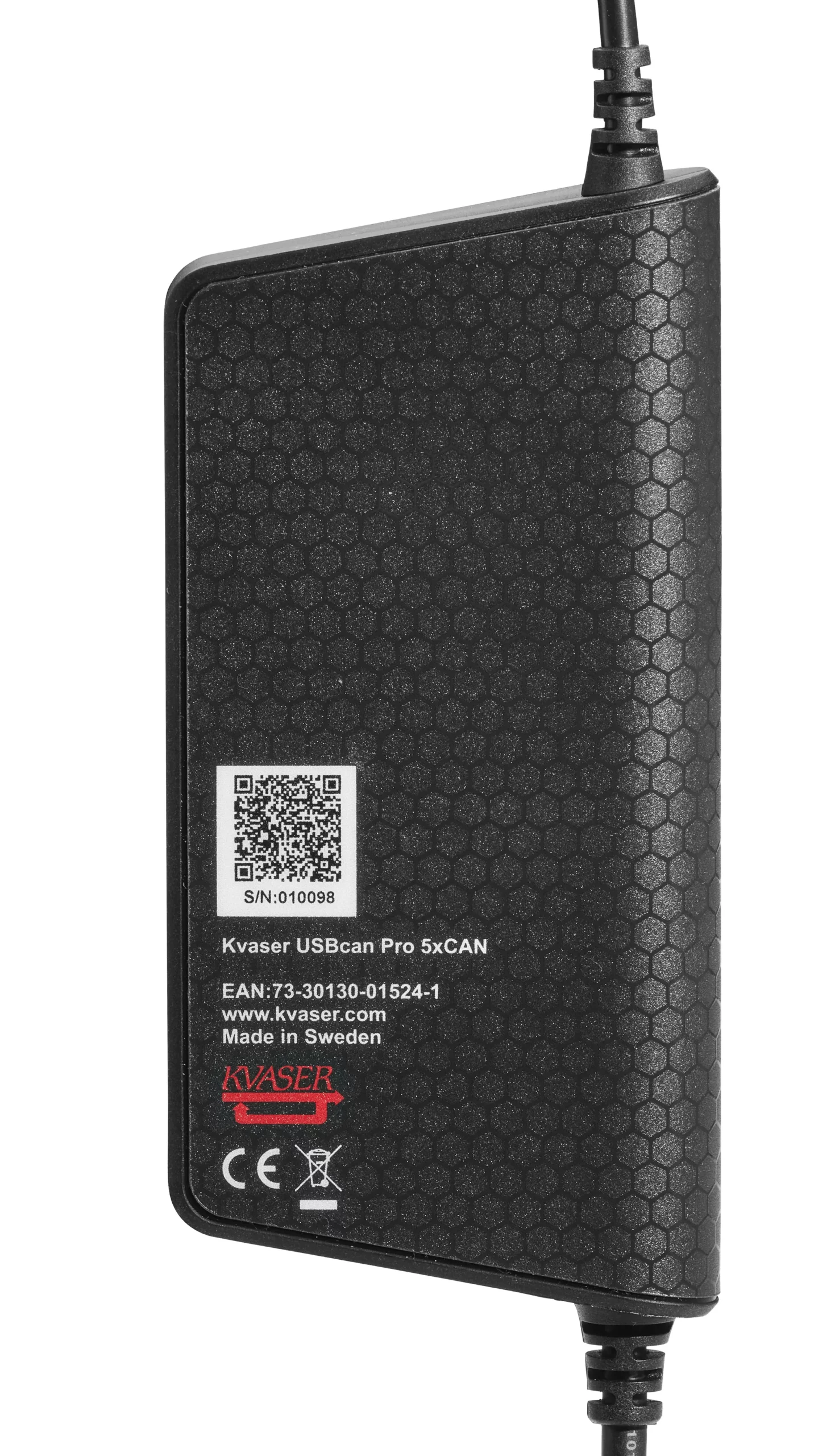

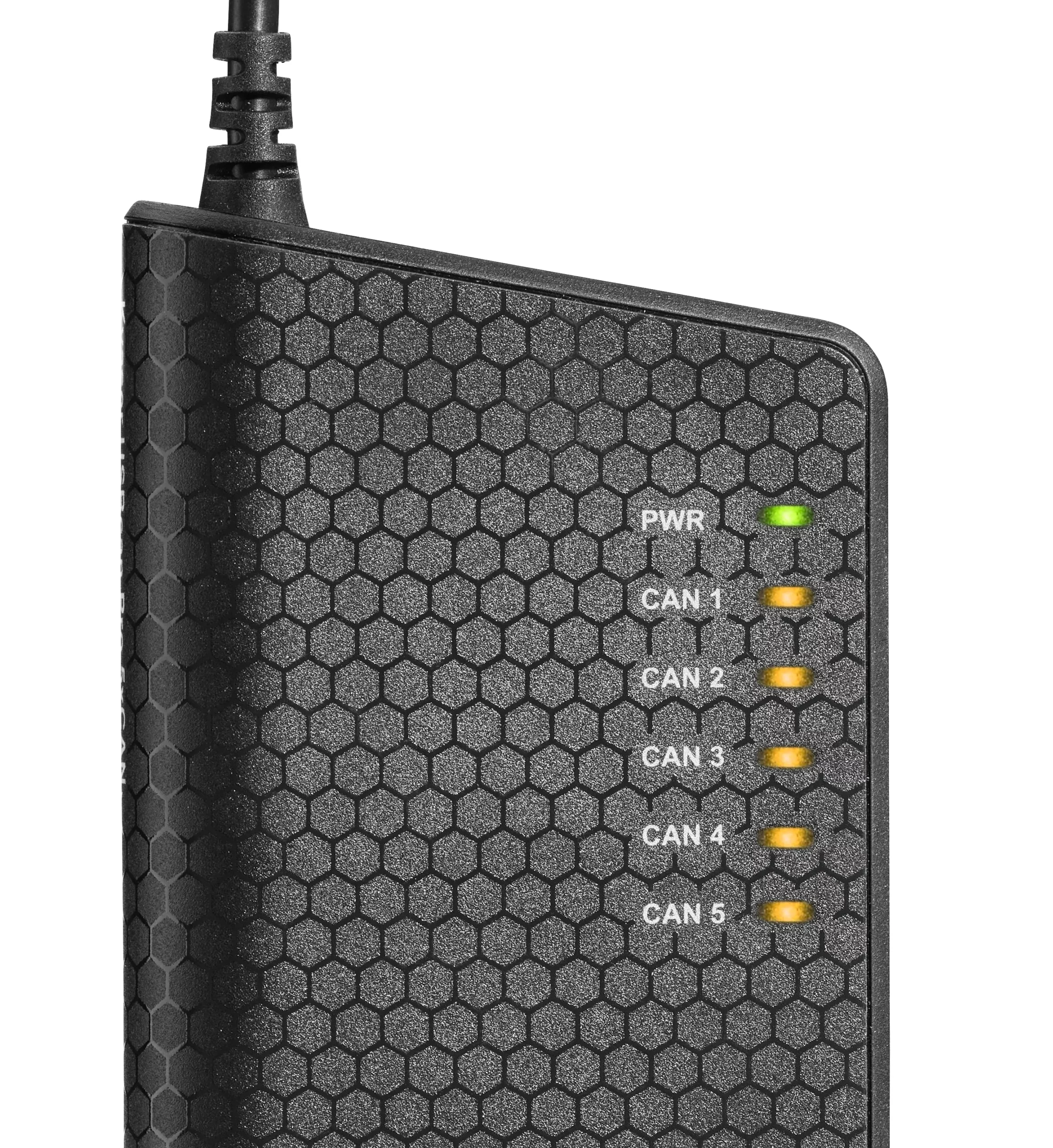

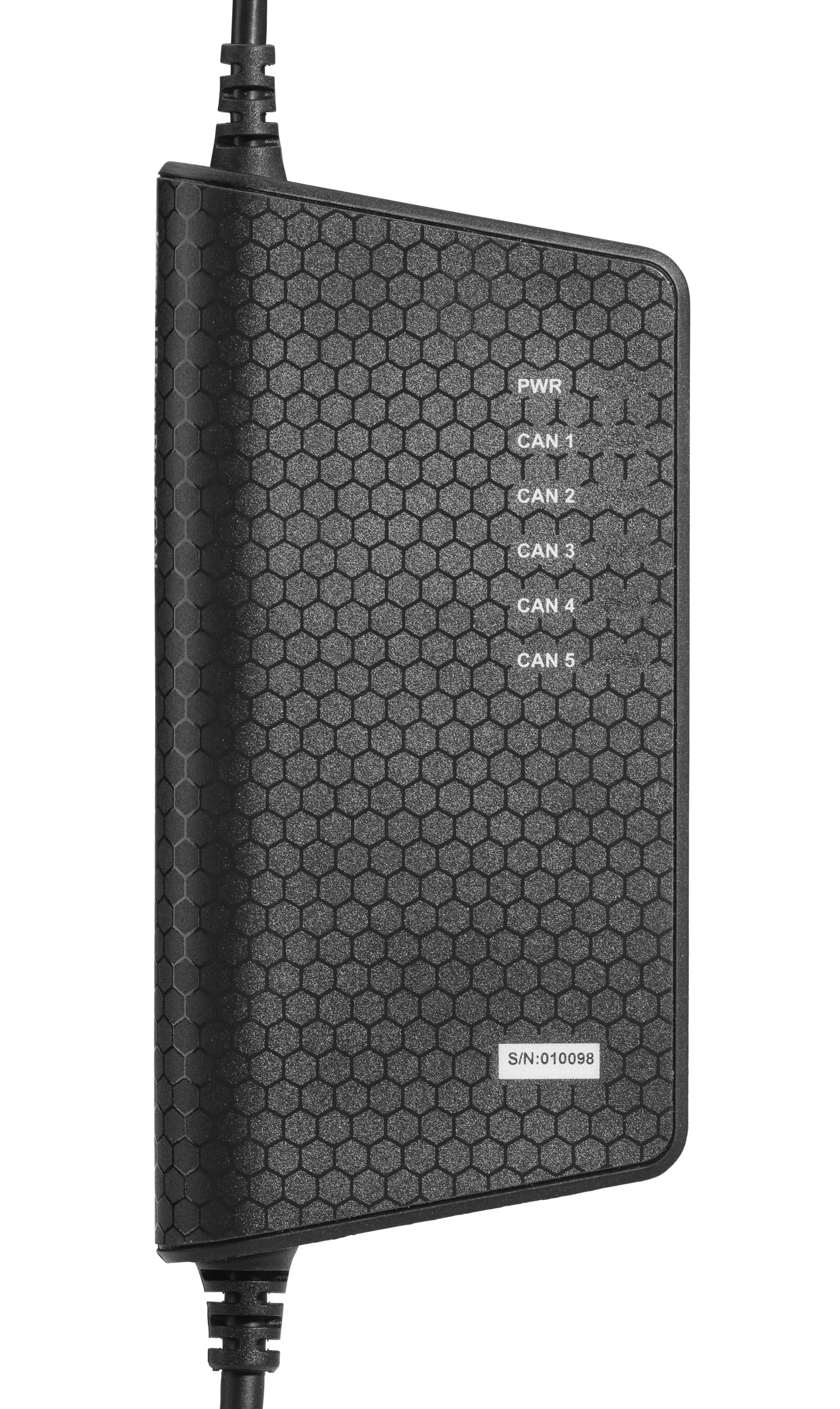

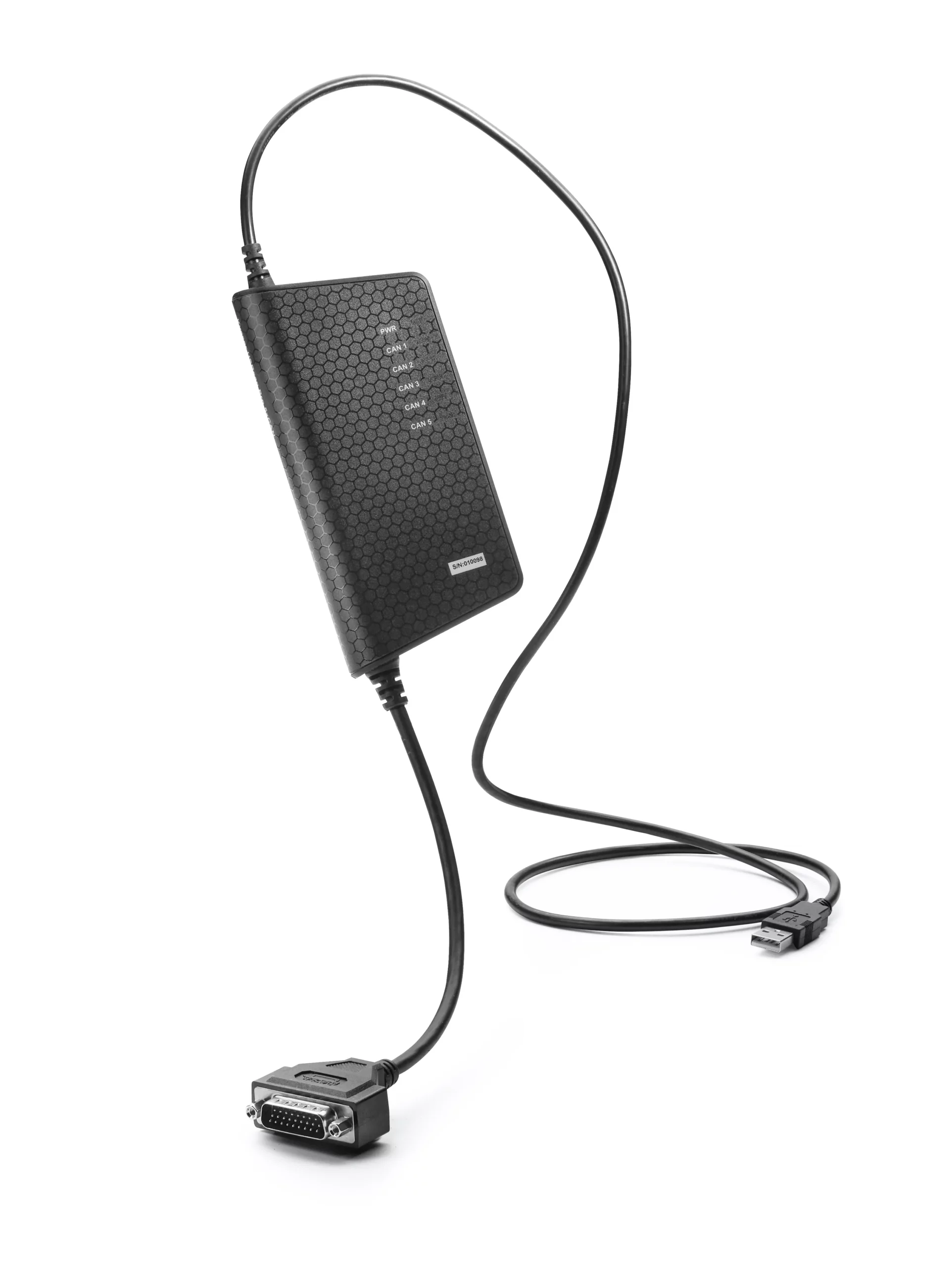

Kvaser USBcan Pro 5xCAN is a small, yet advanced, portable multi channel CAN to USB real time interface that handles transmission and reception of Classic CAN and CAN FD messages on the CAN bus with a high timestamp precision. The Kvaser USBcan Pro 5xCAN is compatible with applications that use Kvaser‘s CANlib.Â
-
Downloads
-
Description
- USB CAN interface with Kvaser t programmability.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Power is taken from the USB port, or from the USB port together with the CAN connector. External power is recommended when using all 5 channels simultaneously.
- 100% compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Kvaser MagiSync – automatic time synchronization.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.

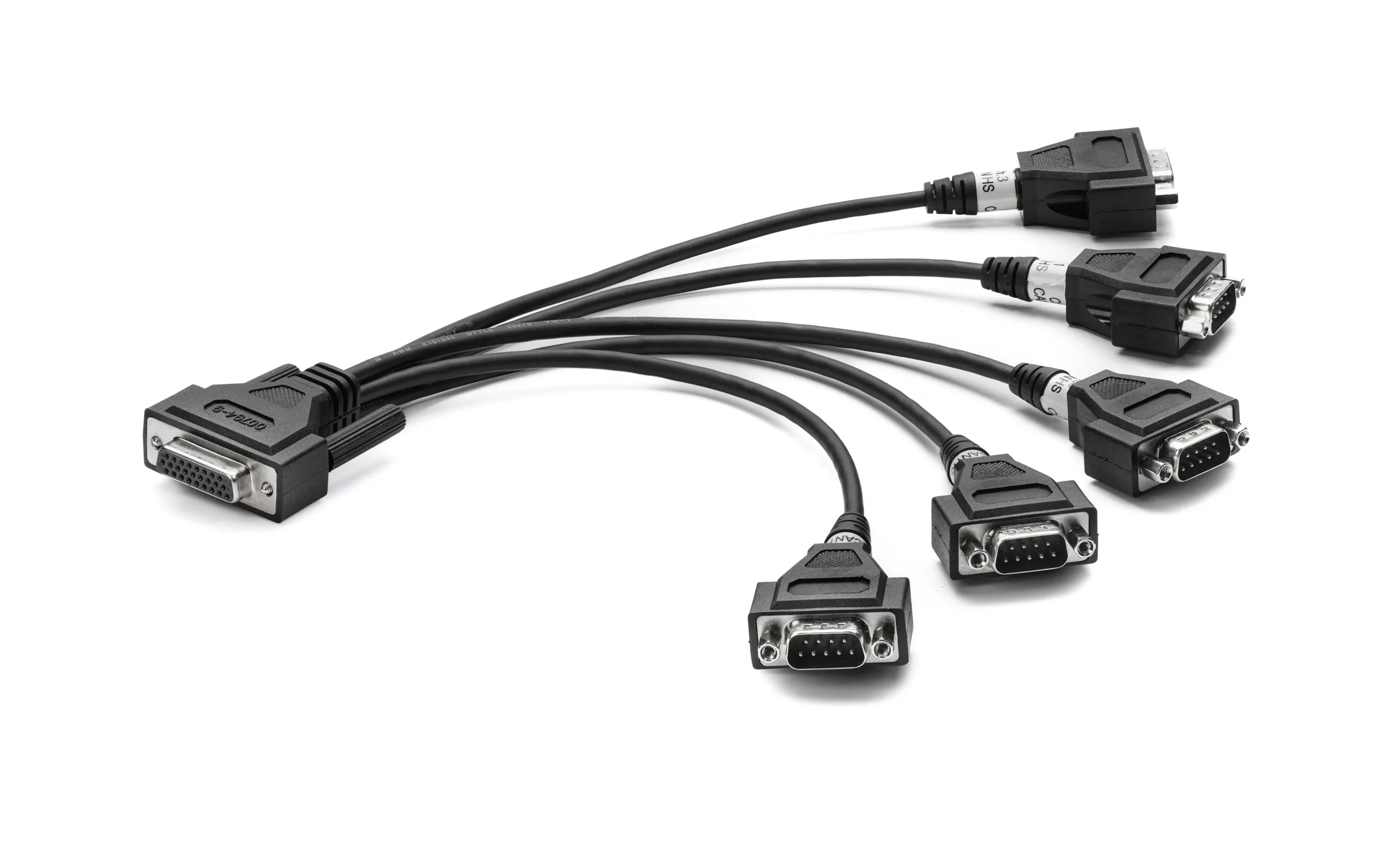

- Includes 5 channel breakout cable.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application. For software support please see our Technical Associates products and our Software Download page (www.kvaser.com).
-
Tech Specs
Bitrate20 - 1000kbps
CAN FD BitrateUp to 8 Mbit/s
CategoriesHardware, Interfaces, CAN
CertificatesCE, RoHS
Channels5
Connectors26-pin HD D-SUB
Error Frame GenerationYes
Galvanic IsolationYes
Height23 mm
Length170 mm
OSWindows 7 (IA-32 and x86-64), Windows 8 (IA-32 and x86-64), Windows 10 (IA-32 and x86-64), Windows 11 (x86-64), Linux
Silent modeYes
Temp range-40 °C to 85 °C
Timestamp Resolution (µs)1 µs
Weight150 g
-
