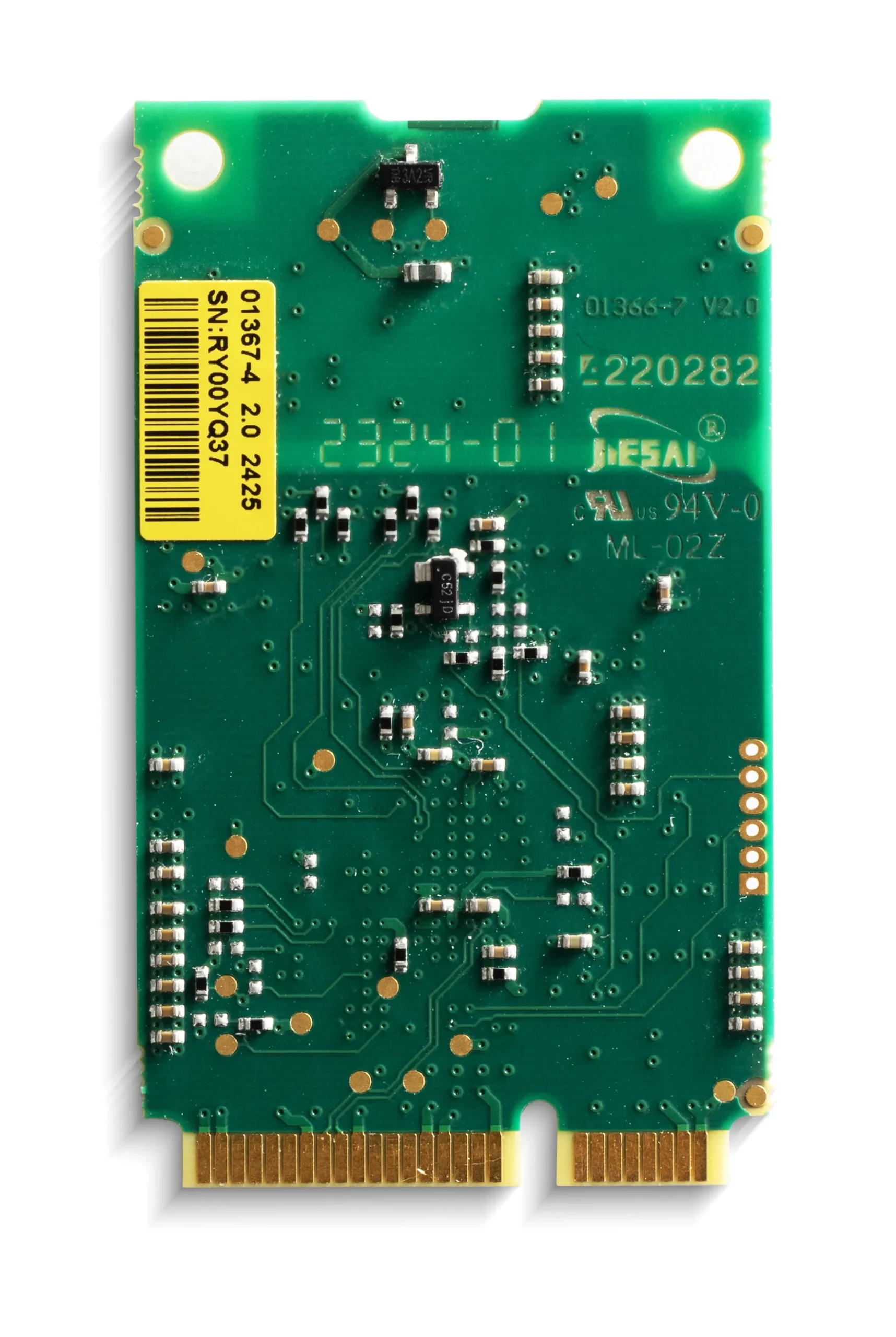

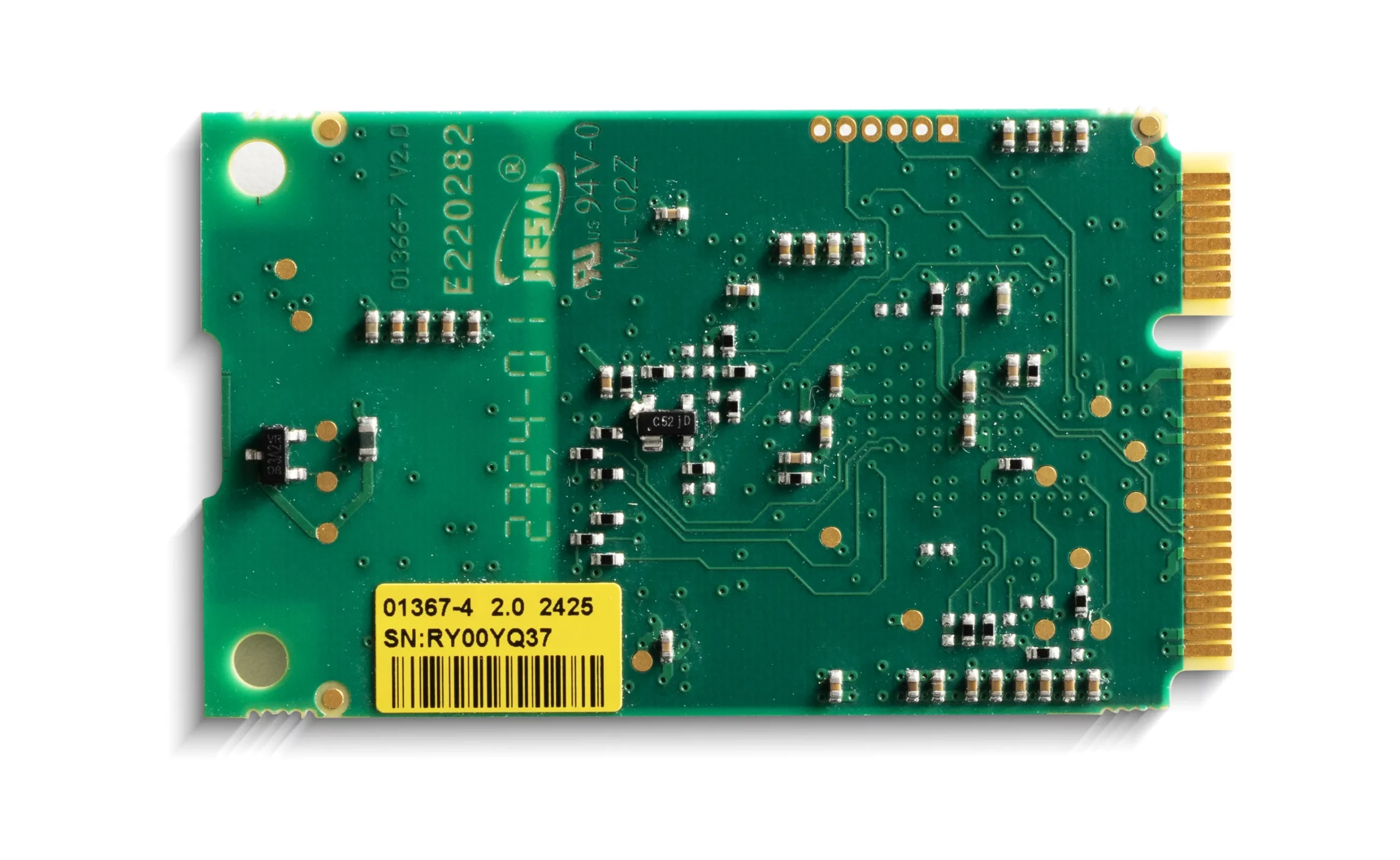

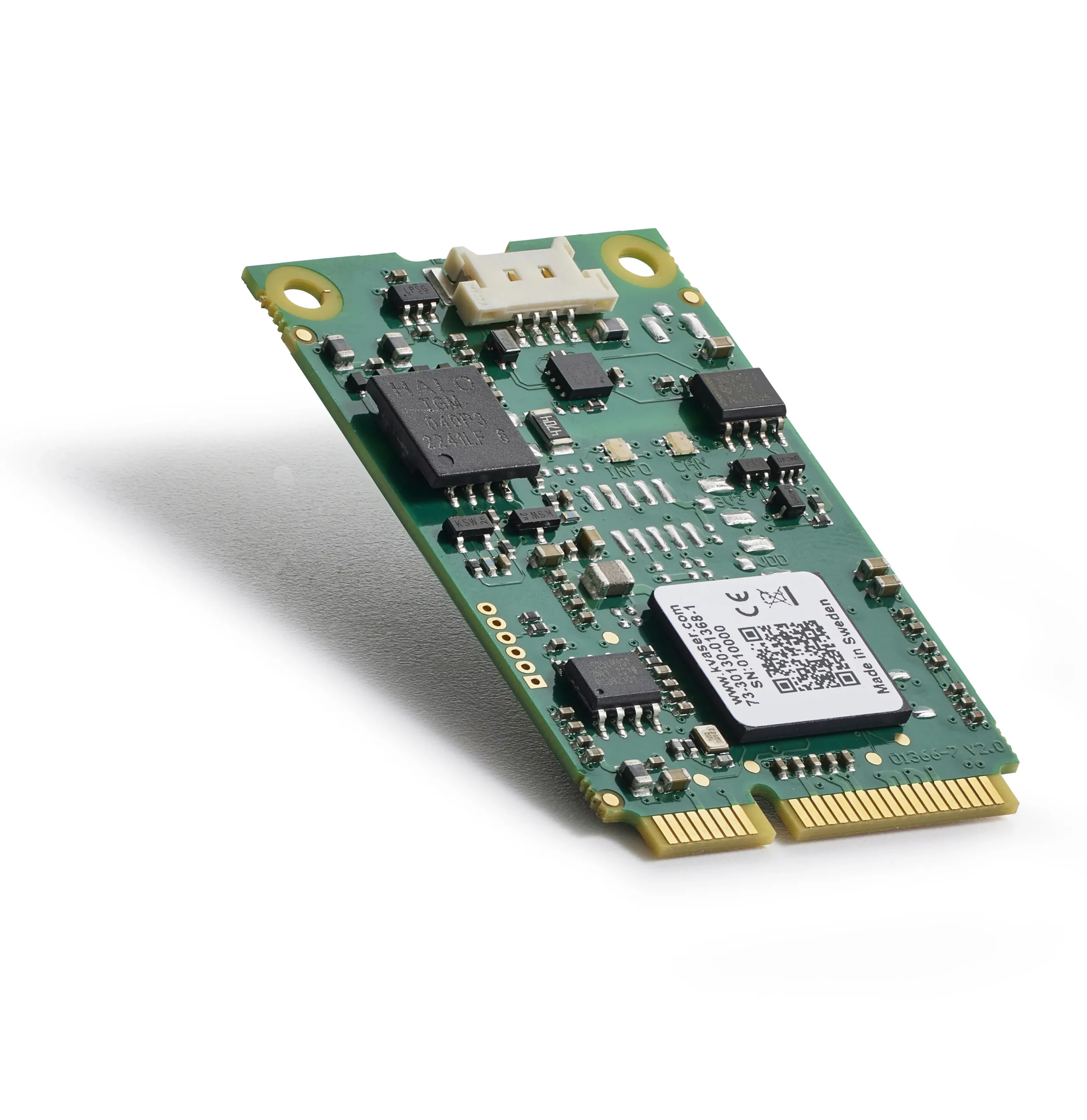

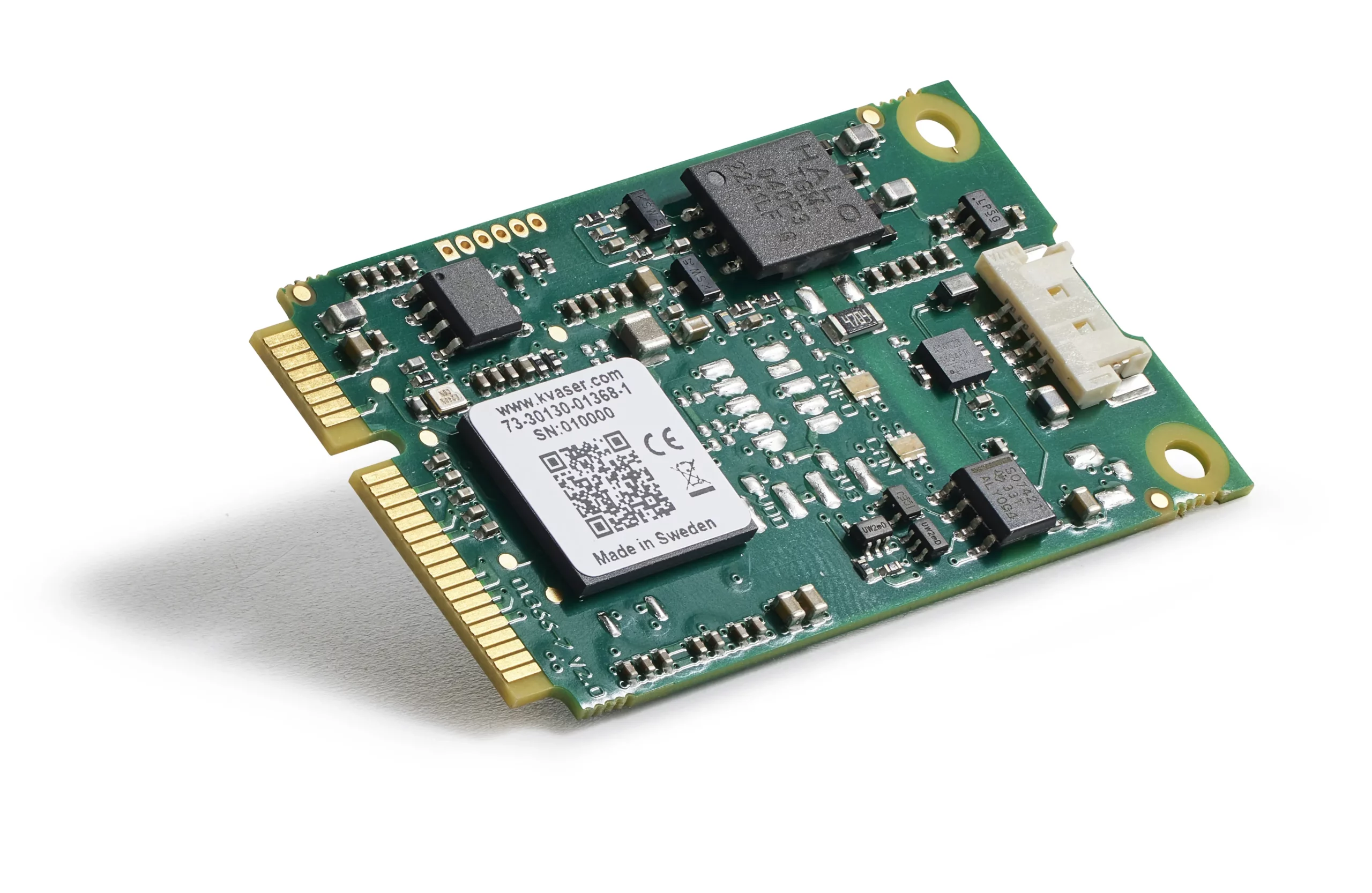

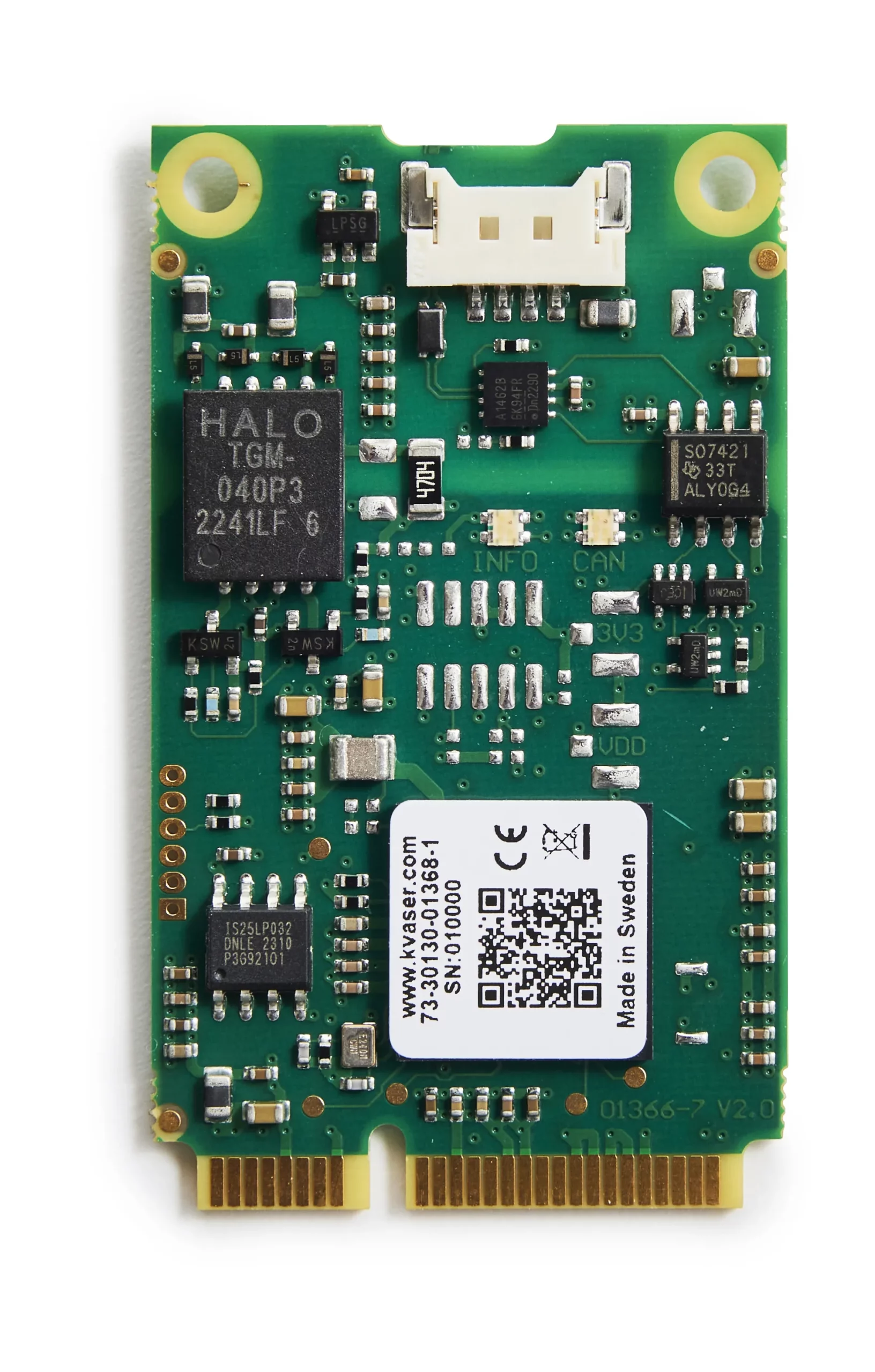

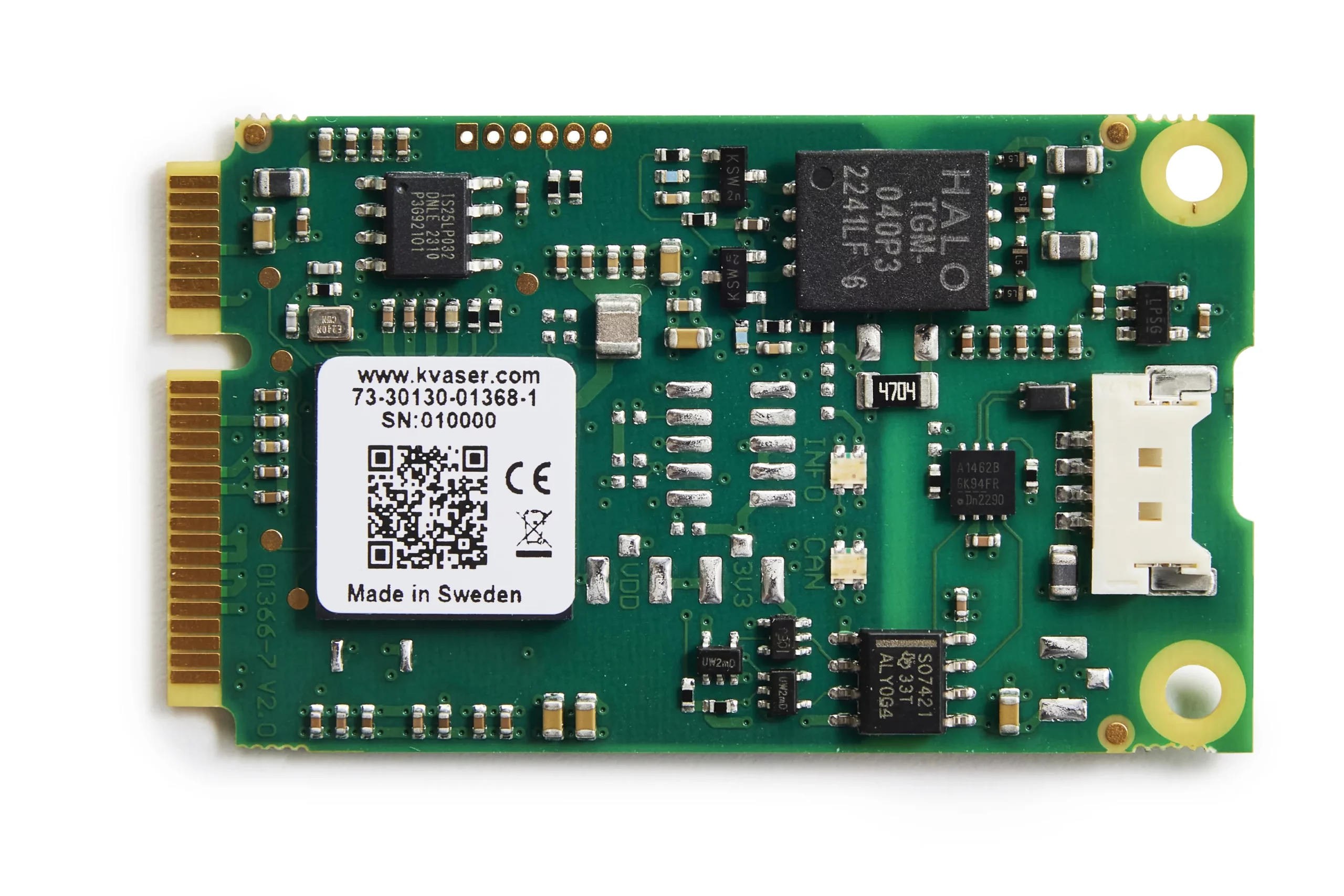

The Kvaser Mini PCIe 1xCAN (01368-1) is a highly integrated CAN board that enables CAN/CAN FD functionality to be added to any standard computer. Successor to the Kvaser Mini PCI Express HS (00688-1), this version supports CAN FD up to 8 Mbit/s and has a high timestamp resolution of 1 µs, a wide CAN bitrate of 20 kbit/s to 1 Mbit/s and an exceptionally high message rate of 20,000 msg/s.Â
A key feature of the Kvaser Mini PCIe 1xCAN is that it connects to a computer via USB2.0 in a Mini PCI Express socket. This is a useful feature when there are competing peripherals for the PCI Express lane. The Mini PCI Express 1xCAN (01420-6) should be selected when it is necessary to use the USB lanes within the Mini PCI Express socket for communication.Â
This board integrates new generation SIC transceivers, which can be credited for improved signal quality at higher bitrates and a reduction in signal ringing. Ringing is a common problem in higher speed networks, such as CAN FD, particularly those with longer stubs. Error frame generation is also a feature of this board.
Â
-
Downloads
-
Description
Major features
• Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
• Quick and easy plug-and-play installation.
• Equipped with an SIC transceiver.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
• Supports simultaneous usage of multiple Kvaser interfaces.
• Supports silent mode for analysis tools –listen to the bus without interfering.

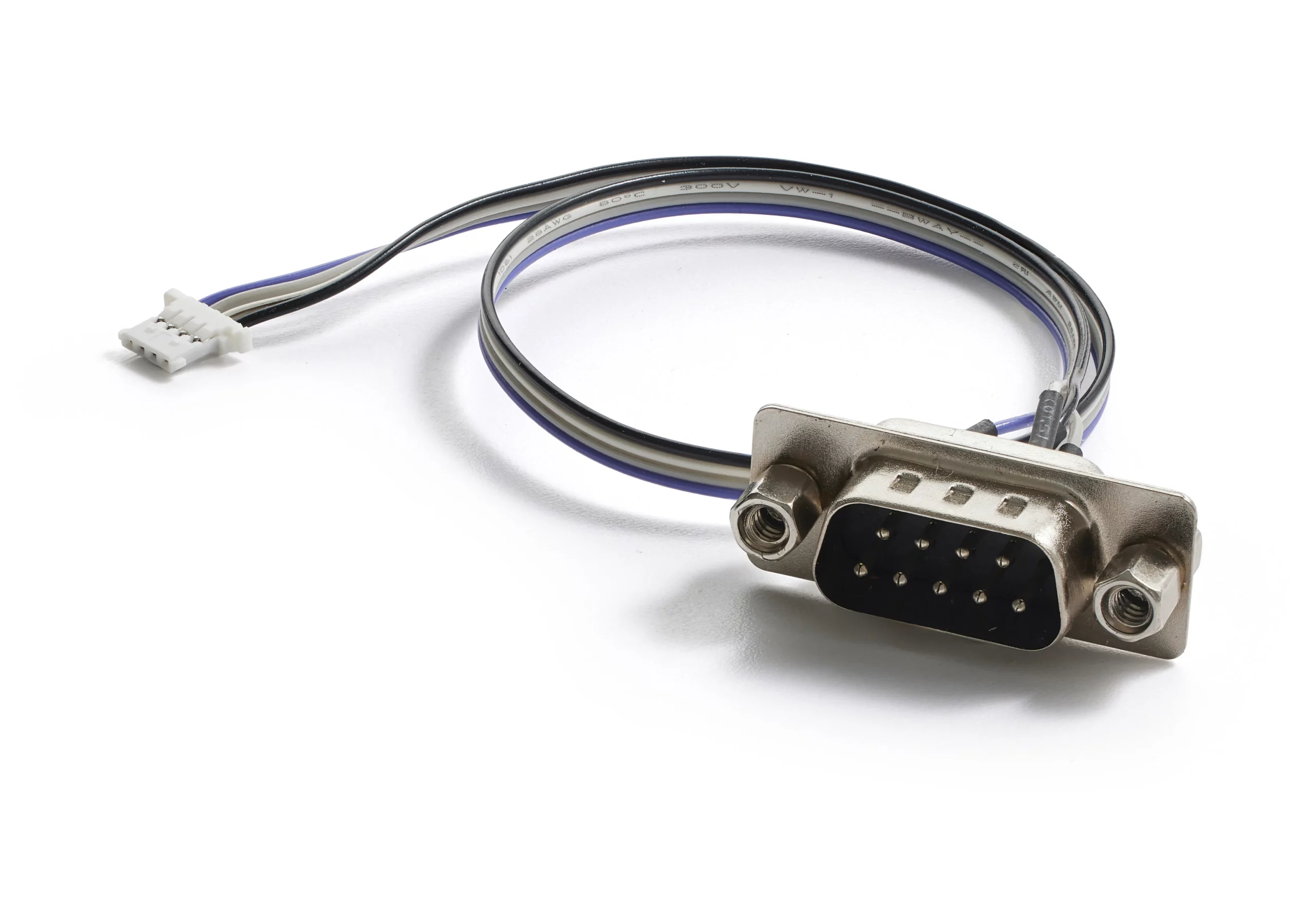

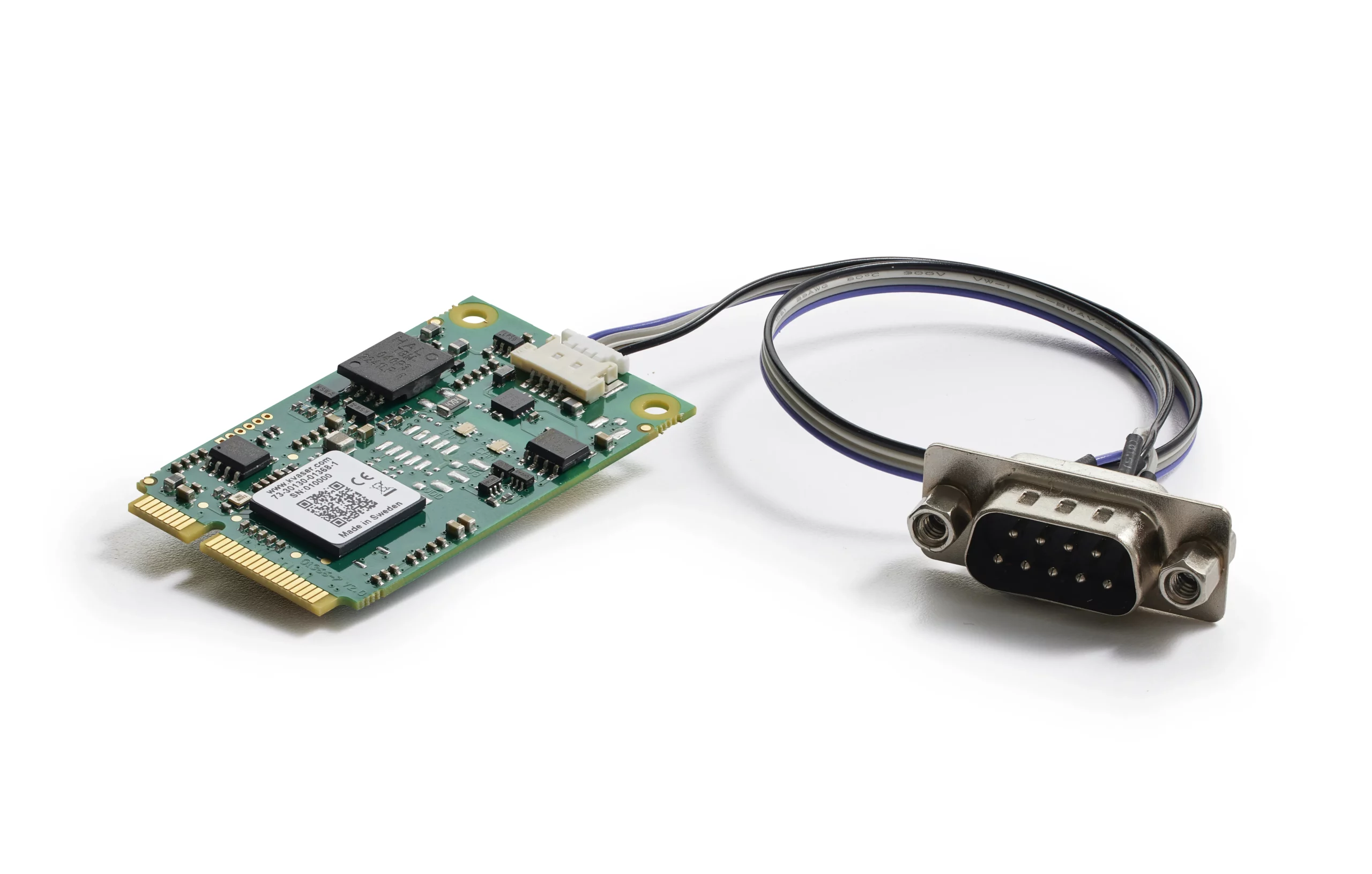

• Includes 1 channel breakout cable.
• Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application. For software support please see our Technical Associates products and our Software Download page (www.kvaser.com). -
Tech Specs
Bitrate20 - 1000kbps
CategoriesHardware, Interfaces
CertificatesCE, RoHS
Channels1
ConnectorsMolex 53780 PanelMate TM
Error Counters ReadingNo
Error Frame GenerationYes
Galvanic IsolationYes
Height5 mm
InterfacesMini PCI Express
Length51 mm
Messages Per Second Receive20000 mps
Messages Per Second Sending20000 mps
OSWindows 7 (IA-32 and x86-64), Windows 8 (IA-32 and x86-64), Windows 10 (IA-32 and x86-64), Windows 11 (x86-64), Linux
Silent modeYes
Temp range-40 °C to 85 °C
Timestamp Resolution (µs)1 µs
Weight5 g
-
