EAN: 73-30130-01688-0
Kvaser Edge WL400S

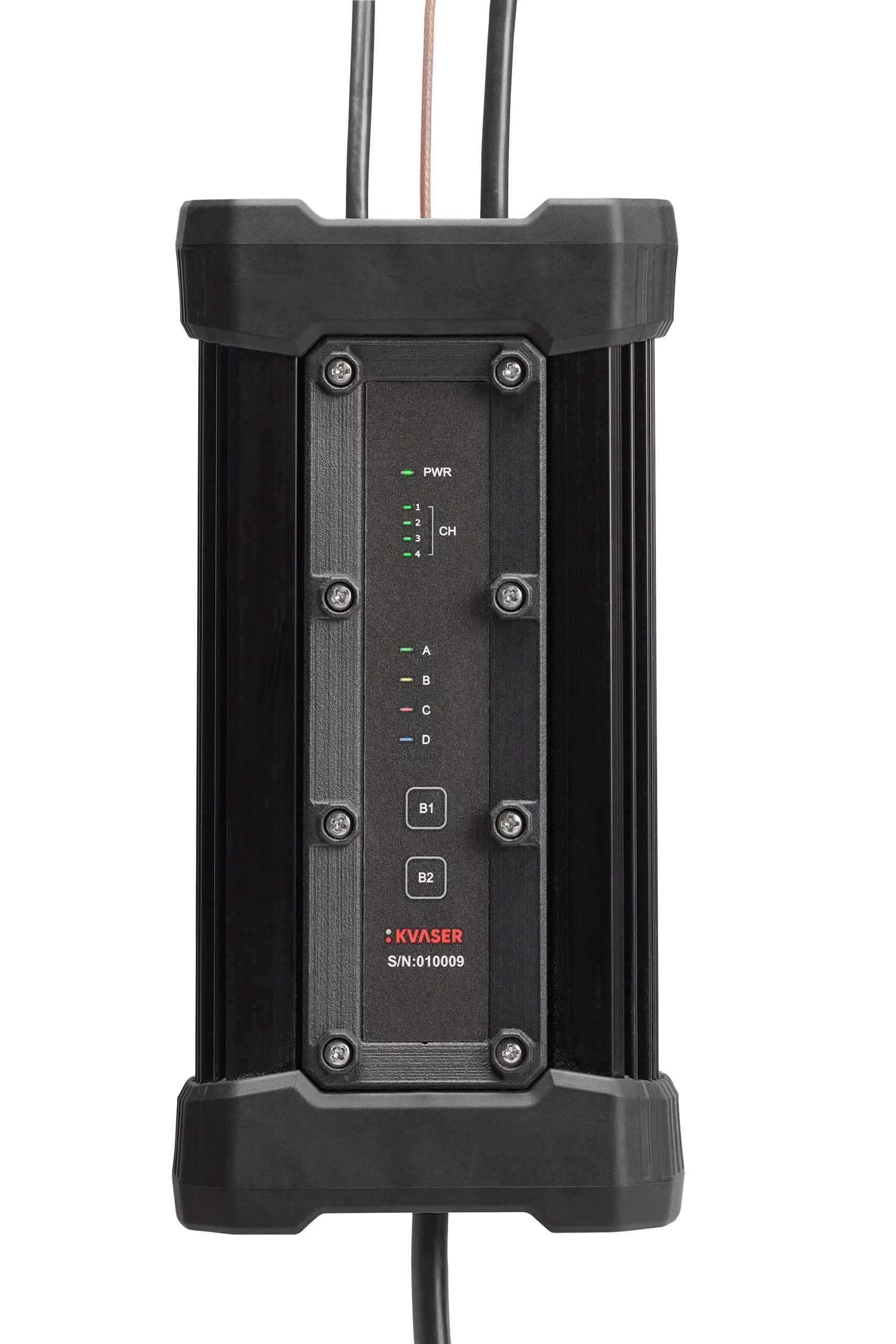

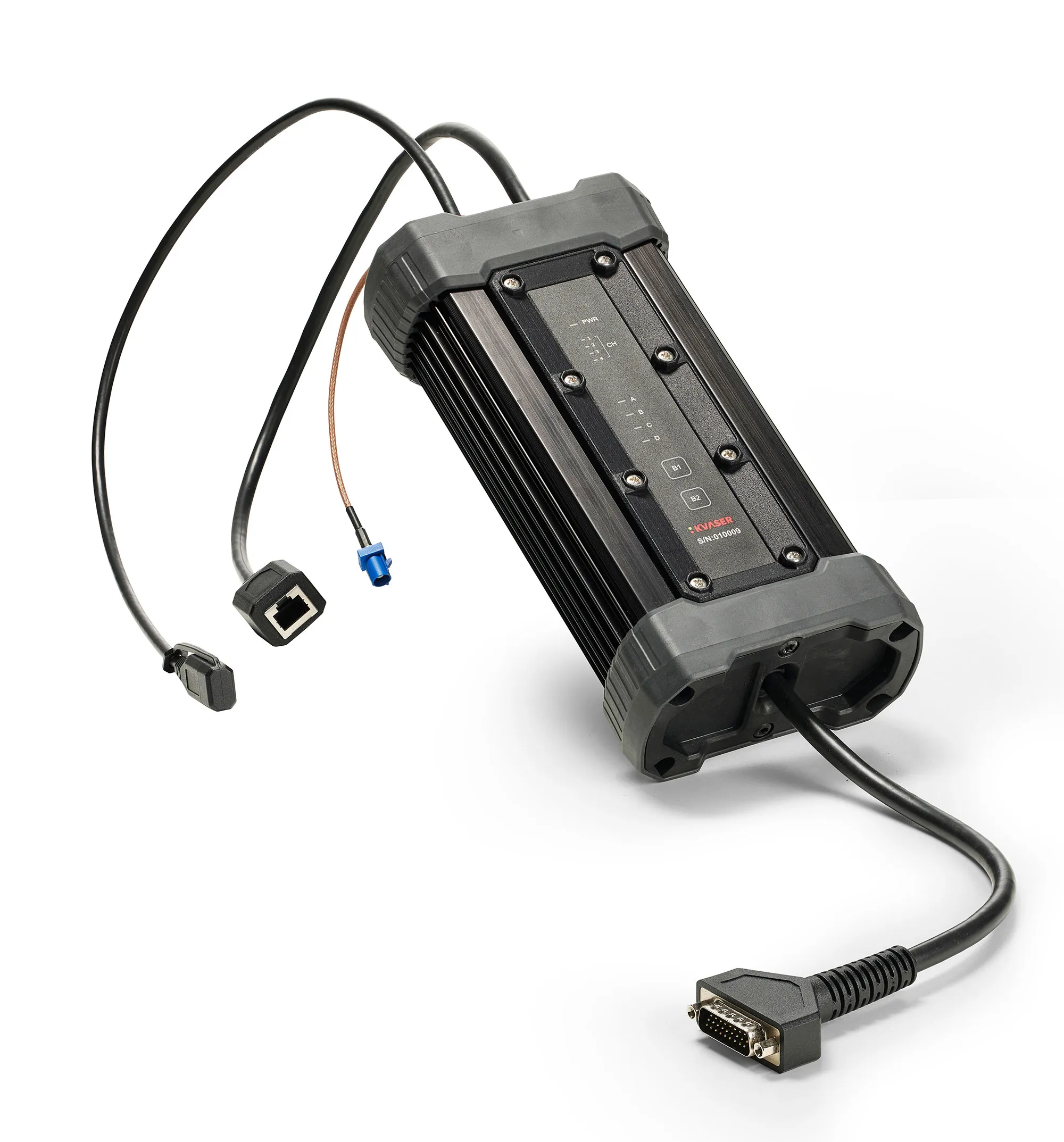

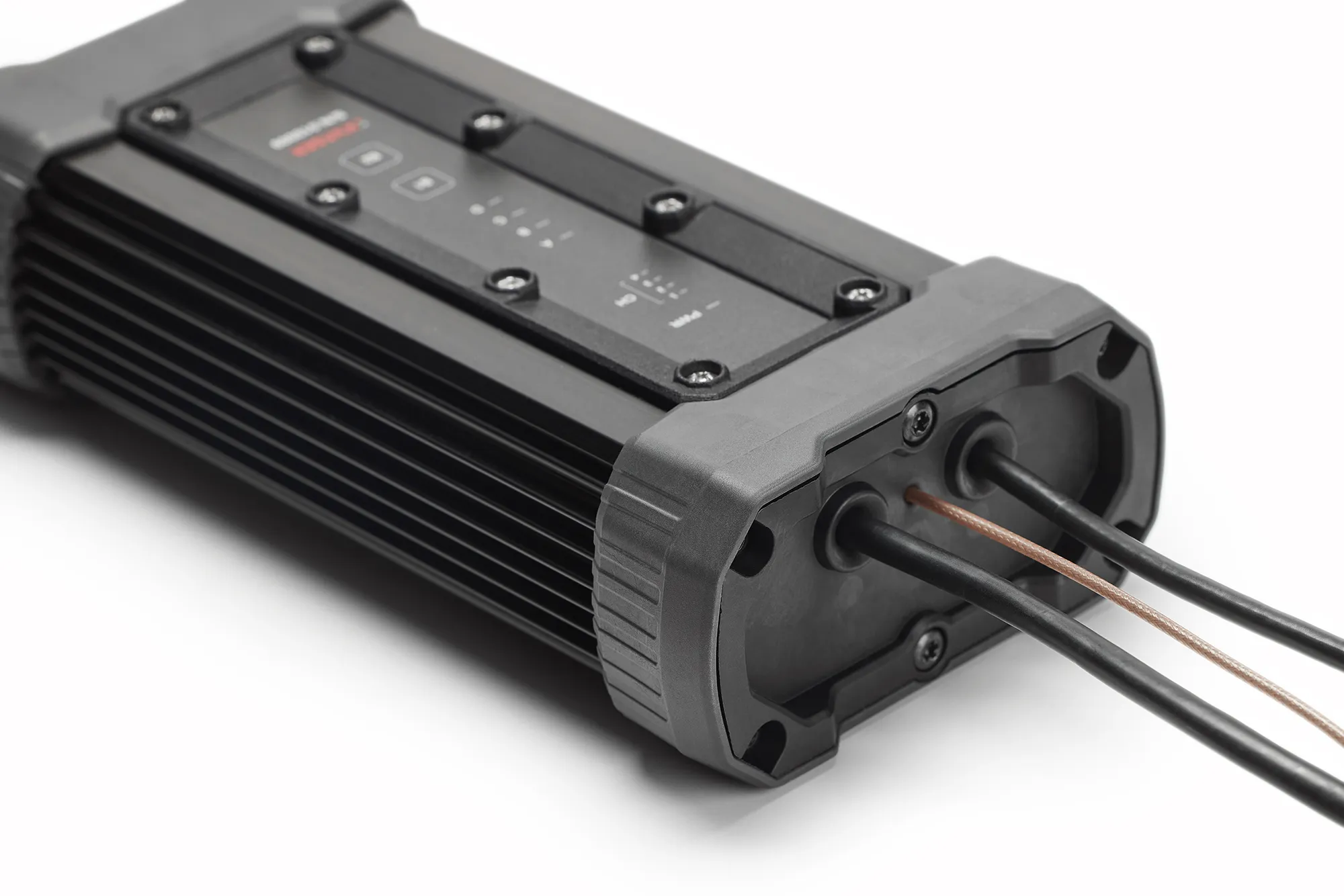

The Kvaser Edge is a secure, rugged ARM-based Linux computer tailored for demanding real-time data acquisition, edge analytics and seamless cloud integration, all within a compact form factor.
Beyond its robust hardware, the Edge offers great flexibility. Its containerized software architecture ensures secure isolation, allowing you to choose your own Linux distribution, and leverage apps for data processing. You maintain full control of your data, protecting both collected information and your intellectual property. This makes Edge ideal for proof-of-concept testing or scalable production rollouts.

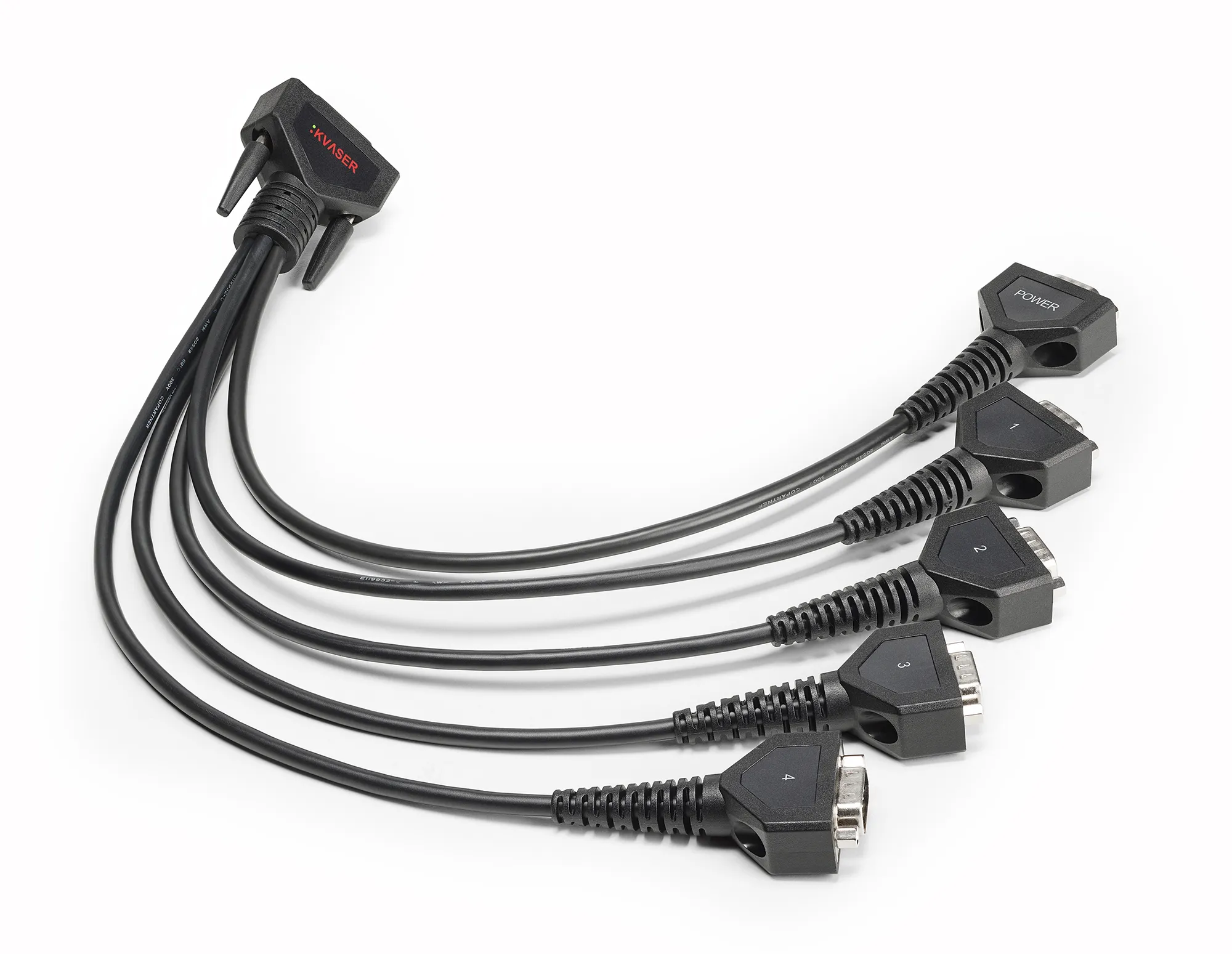

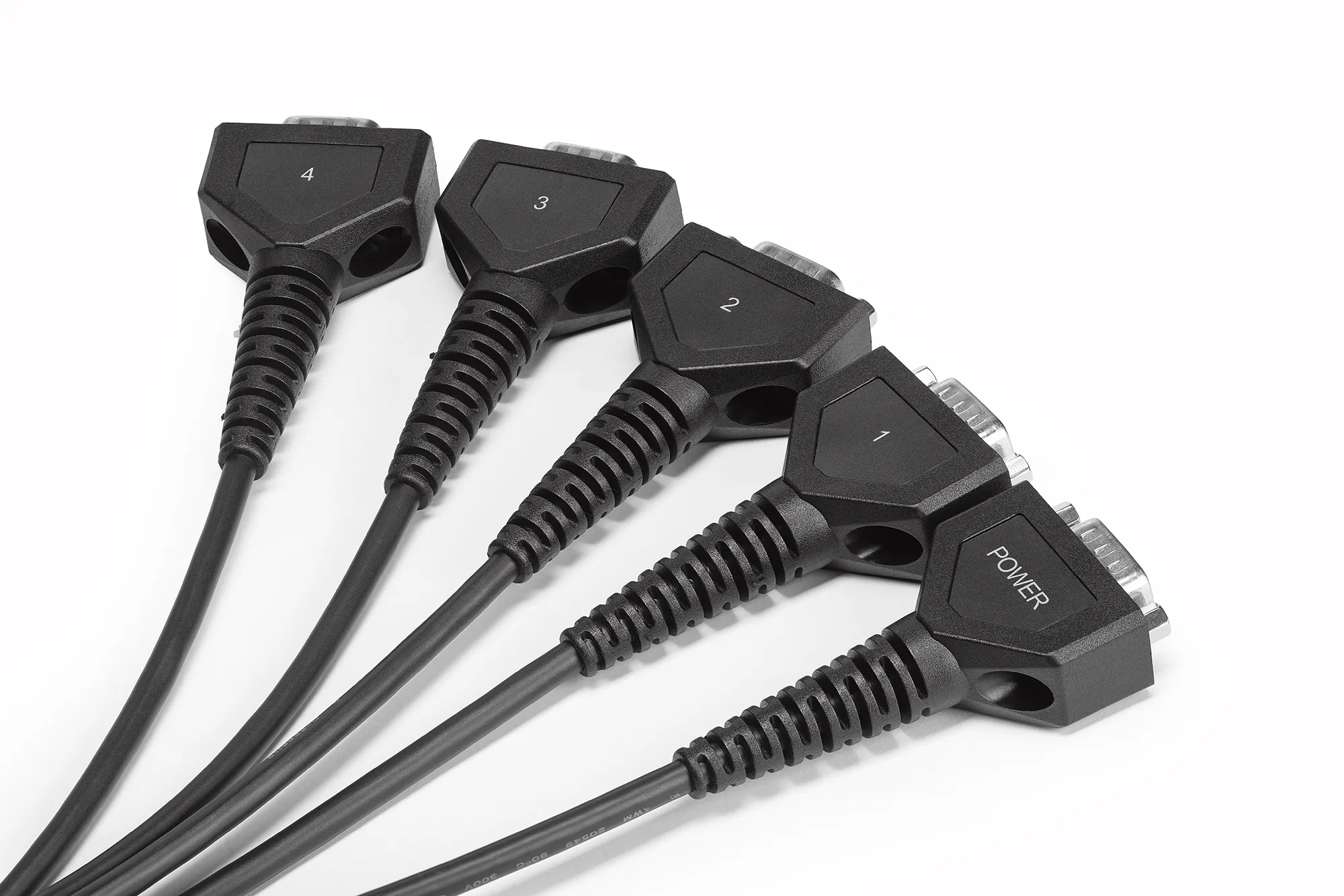

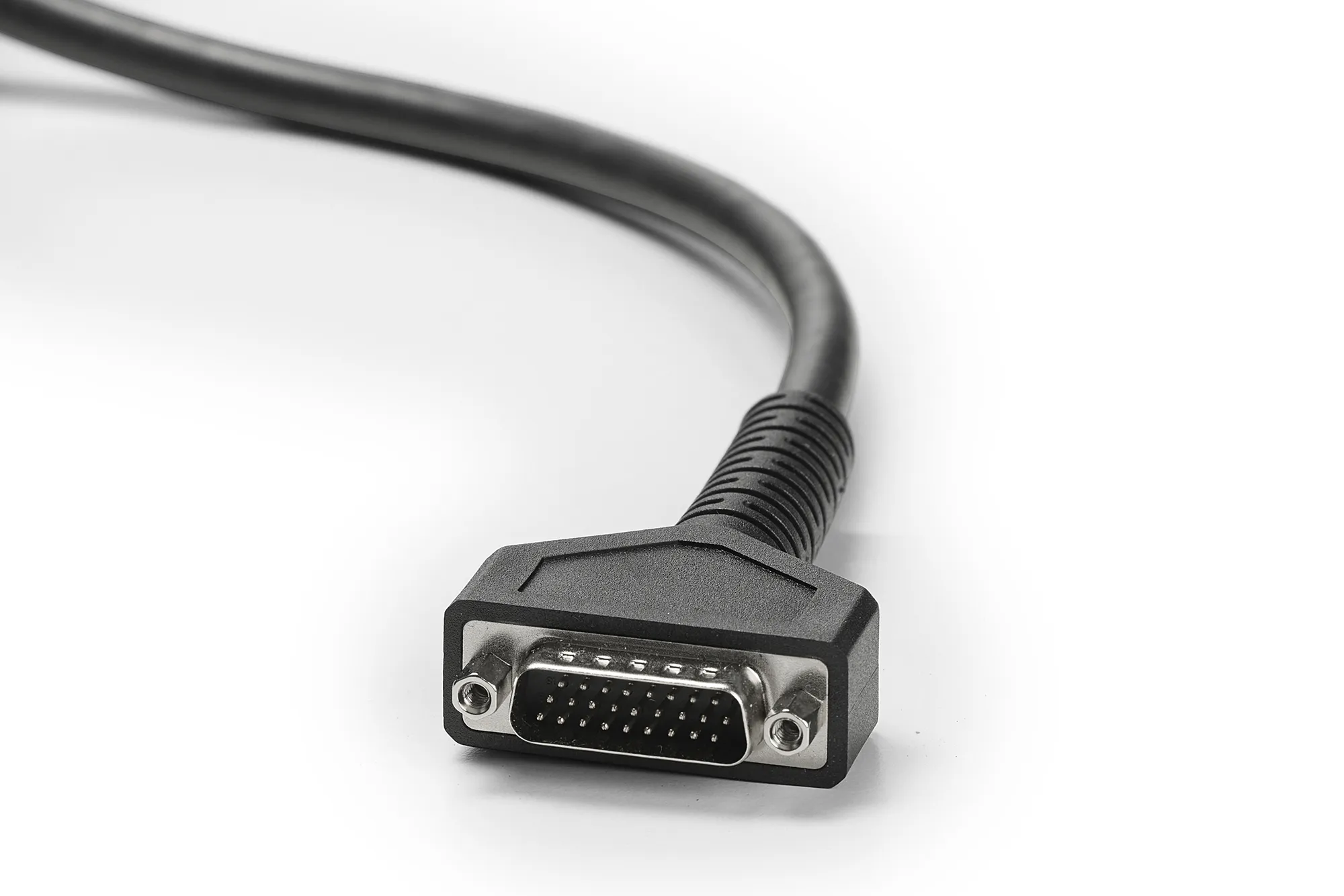

Please Note: To split the four channels into separate connections and enable power, a splitter cable, is required. This cable is sold separately.
Discover more:
Kvaser Edge Platform – Explore all features and capabilities
Kvaser Edge Help Center – Documentation, setup guides, and technical reference
Kvaser Edge on GitHub – Edge Log Relay example application for CAN data logging, local processing, and remote data transfer. Use the demos to evaluate Kvaser Edge for your own data acquisition, testing, fleet, or connected workflow.
-
Downloads
Documentation
Download Datasheet
US Letter
Version 2.0.261007
Kvaser Edge 4xCAN, Type WL400S User’s Guide
Kvaser Edge 4xCAN, Type WL400S User's Guide
Driver
Version 5.53.673
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also con
Version 5.53.676
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
Firmware
Version 1.2.0
Kvaser Edge OS (KEOS)
Firmware for Kvaser Edge
Development Kits and Tools
Version 5.53.676
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for
Version 1.0.1
Kvaser D-PDU Library
D-PDU API (ISO-22900) for Kvaser CANLib Modules (Interfaces) as a C library
Version 7.0.0
Kvaser DBC Editor 7 for Linux amd64
The Kvaser DBC Editor 7 is a powerful tool for creating and editing .dbc files, with support for both Windows and Linux.
Version 7.0.0
Kvaser DBC Editor 7 for Windows x86-64
The Kvaser DBC Editor 7 is a powerful tool for creating and editing .dbc files, with support for both Windows and Linux.
Version 1.0.0
Kvaser ISO-TP Library
Kvaser ISO-TP (ISO 15765-2) Library
Version 1.0.1
Kvaser J1939 Library
J1939 transport protocol and address claim for Kvaser CANLib
Version 1.0.0
Kvaser J2534 05.00 PassThru API
The J2534 05.00 PassThru API, supporting all Kvaser CAN interfaces with both 32-bit and 64-bit application support.
Version 1.34.0
Kvaser PyCANlib
A python wrapper for the Kvaser CANlib SDK.
Version 6.1.0
Kvaser RP1210C API
Support library for using RP1210-compliant applications with Kvaser CAN interfaces
Version 5.53.676
Linux SDK library
Linux SDK library. Provides extended libraries for accessing dbc files, controlling data logger family, and converting/extracting log files.
Version 1.0.1
Wireshark Plugin for Linux amd64
Wireshark plugin for Kvaser CAN Interfaces.
Version 1.0.1
Wireshark Plugin for Windows
Wireshark plugin for Kvaser CAN Interfaces.
Version 7.6.2
Kvaser CanKing 7 for Linux amd64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.2
Kvaser CanKing 7 for Linux arm64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.2
Kvaser CanKing 7 for Windows x86-64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.2
Kvaser CanKing 7 Service for Linux amd64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.2
Kvaser CanKing 7 Service for Linux arm64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
-
Description
Major Features
- Designed for effortless execution of data logging and processing missions at the edge.
- Powerful embedded ARM-based Linux computer with ”Secure Element”, NXP SE051C2 faciliating CRA compliance with target software applications.
- Four fully featured, time-synchronized, individually galvanically isolated CAN-FD channels utilizing Kvaser CAN-IP implemented in FPGA.
- Wi-Fi 6 and Gigabit Ethernet Interfaces enables remote connectivity.
- Ruggedized housing with IP67 ingress protection.
- Wired intefaces for durable flexible connections.
- Integrated positioning and inertial measurement units.
- Galvanically isolated GPIO intefaces enabling trigger-based logging.
- Separate galvanically isolated power supply with support of activation via ignition signal.
- High-capacity battery ensures safe shutdown and supports intermediate operation.
- Multi-GNSS (Global Navigation Satellite System) support (GPS, Galileo, GLONASS) for enhanced positioning accuracy and reliability.
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting [email protected].
-
Tech Specs

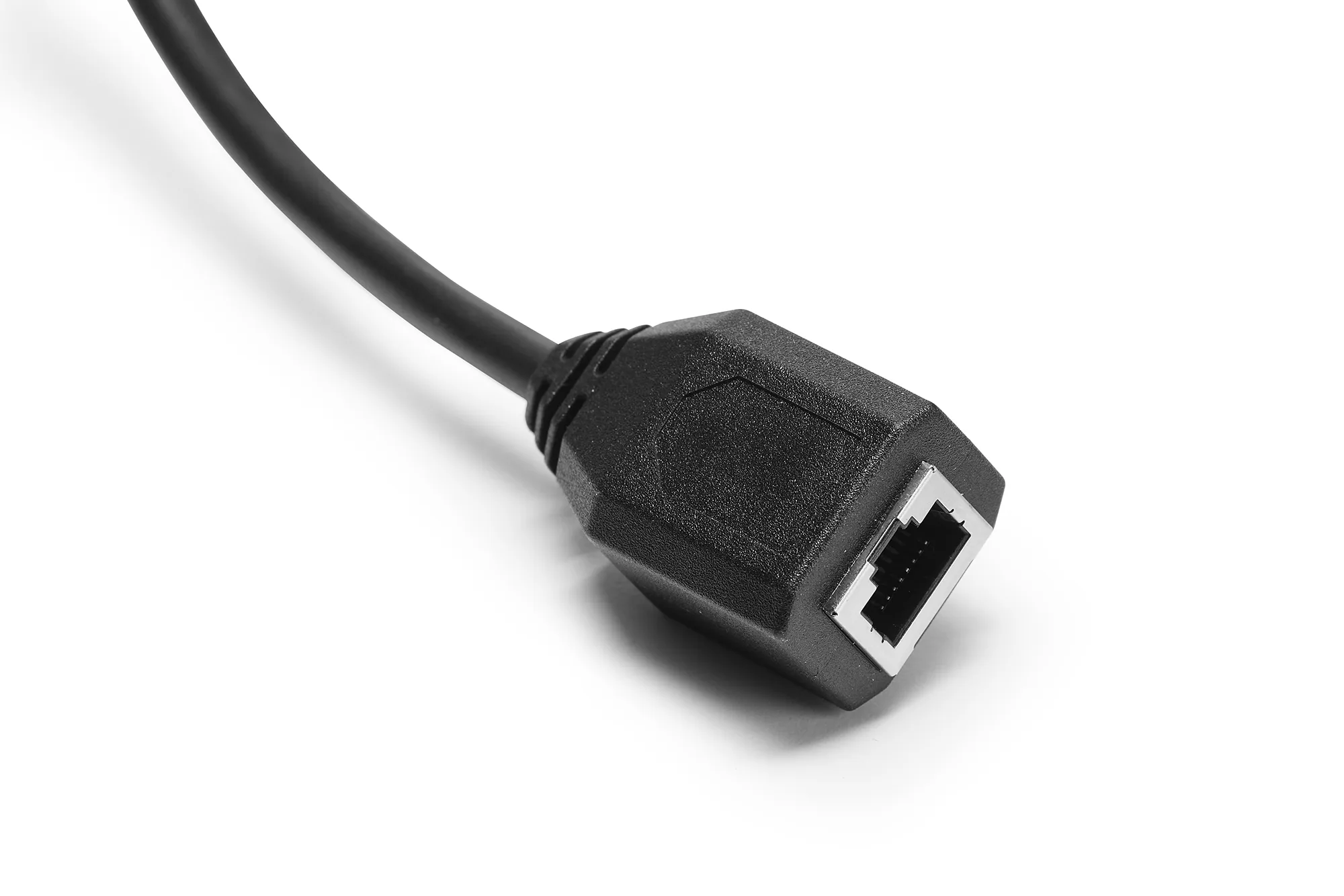

1 x Gigabit Ethernet 1000BASE-T, RJ45 Socket
-
