EAN: 73-30130-01758-0
Kvaser Edge WL420S

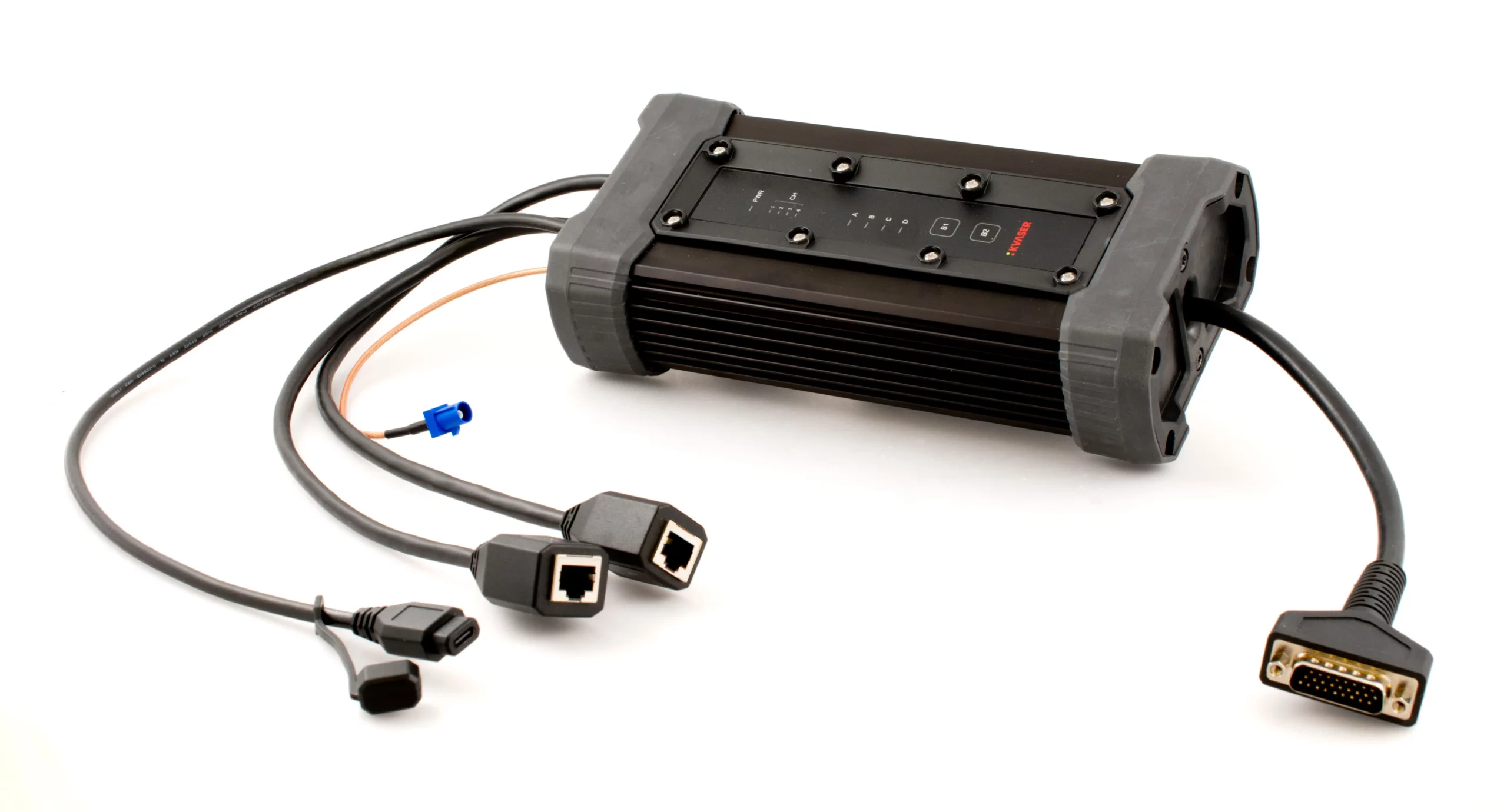

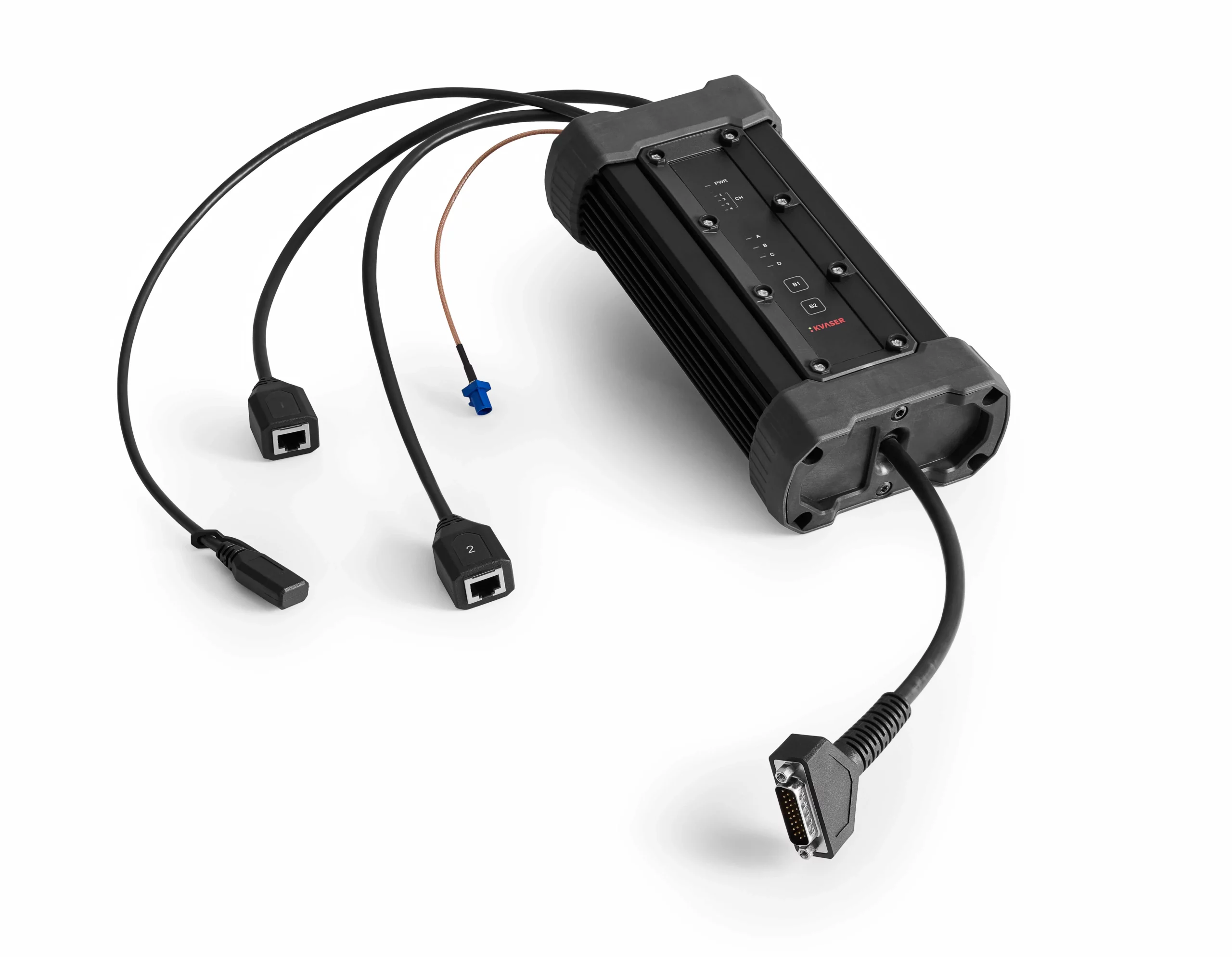

The Kvaser Edge WL420S is a rugged, IP67-rated Linux based Edge computer that is targeted at telematic, logging, and controls applications for vehicles, primarily within the automotive, off-highway, rail, marine and industrial markets.
The WL420S features a powerful i.MX8 multicore processor with integrated NPU, four galvanically isolated CAN/CAN FD ports, two Gigabit Ethernet interfaces, WiFi 6, GNSS positioning, and an onboard IMU.
Running the Linux-based operating system Kvaser Edge OS (KEOS), the WL420S supports multiple Linux distributions and integrated container technology for secure deployment of custom applications.
The WL420S is well suited for both advanced development projects and large-scale production deployments.
Please Note: To split the four channels into separate connections and enable power, a splitter cable, product 01633-0 is required, sold separately.
Discover more:
Kvaser Edge Platform – Explore all features and capabilities
Kvaser Edge Help Center – Documentation, setup guides, and technical reference
Kvaser Edge on GitHub – Edge Log Relay example application for CAN data logging, local processing, and remote data transfer. Use the demos to evaluate Kvaser Edge for your own data acquisition, testing, fleet, or connected workflow.Â
-
Downloads
Documentation
Download Datasheet
US Letter
Version 2.0.261007
Kvaser Edge 4xCAN, Type WL420S User’s Guide
Kvaser Edge 4xCAN, Type WL420S User's Guide
Driver
Version 5.53.676
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
Firmware
Version 1.2.0
Kvaser Edge OS (KEOS)
Firmware for Kvaser Edge
Development Kits and Tools
Version 5.53.676
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for
Version 1.0.1
Kvaser D-PDU Library
D-PDU API (ISO-22900) for Kvaser CANLib Modules (Interfaces) as a C library
Version 7.0.0
Kvaser DBC Editor 7 for Linux amd64
The Kvaser DBC Editor 7 is a powerful tool for creating and editing .dbc files, with support for both Windows and Linux.
Version 7.0.0
Kvaser DBC Editor 7 for Windows x86-64
The Kvaser DBC Editor 7 is a powerful tool for creating and editing .dbc files, with support for both Windows and Linux.
Version 1.0.0
Kvaser ISO-TP Library
Kvaser ISO-TP (ISO 15765-2) Library
Version 1.0.1
Kvaser J1939 Library
J1939 transport protocol and address claim for Kvaser CANLib
Version 1.0.0
Kvaser J2534 05.00 PassThru API
The J2534 05.00 PassThru API, supporting all Kvaser CAN interfaces with both 32-bit and 64-bit application support.
Version 1.34.0
Kvaser PyCANlib
A python wrapper for the Kvaser CANlib SDK.
Version 6.1.0
Kvaser RP1210C API
Support library for using RP1210-compliant applications with Kvaser CAN interfaces
Version 5.53.676
Linux SDK library
Linux SDK library. Provides extended libraries for accessing dbc files, controlling data logger family, and converting/extracting log files.
Version 1.0.1
Wireshark Plugin for Linux amd64
Wireshark plugin for Kvaser CAN Interfaces.
Version 1.0.1
Wireshark Plugin for Windows
Wireshark plugin for Kvaser CAN Interfaces.
Version 7.6.2
Kvaser CanKing 7 for Linux amd64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.2
Kvaser CanKing 7 for Linux arm64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.2
Kvaser CanKing 7 for Windows x86-64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.2
Kvaser CanKing 7 Service for Linux amd64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.6.2
Kvaser CanKing 7 Service for Linux arm64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
-
Description
- Kvaser Edge OS (KEOS) provides a scalable, secure platform for a flexible remote user environment and data logging and processing at the edge.
- Powerful embedded ARM-based Linux computer with NXP SE051C2 Secure Element, facilitating CRA compliance with target software applications.
- Four fully featured, time-synchronized, individually galvanically isolated CAN-FD channels using Kvaser CAN-IP implemented in FPGA.
- Remote CanKing operation is supported by running the CK Service on the Edge while keeping the CanKing GUI on a remote computer.
- Edge devices without a running container appear as standard USB interfaces with CANlib support.

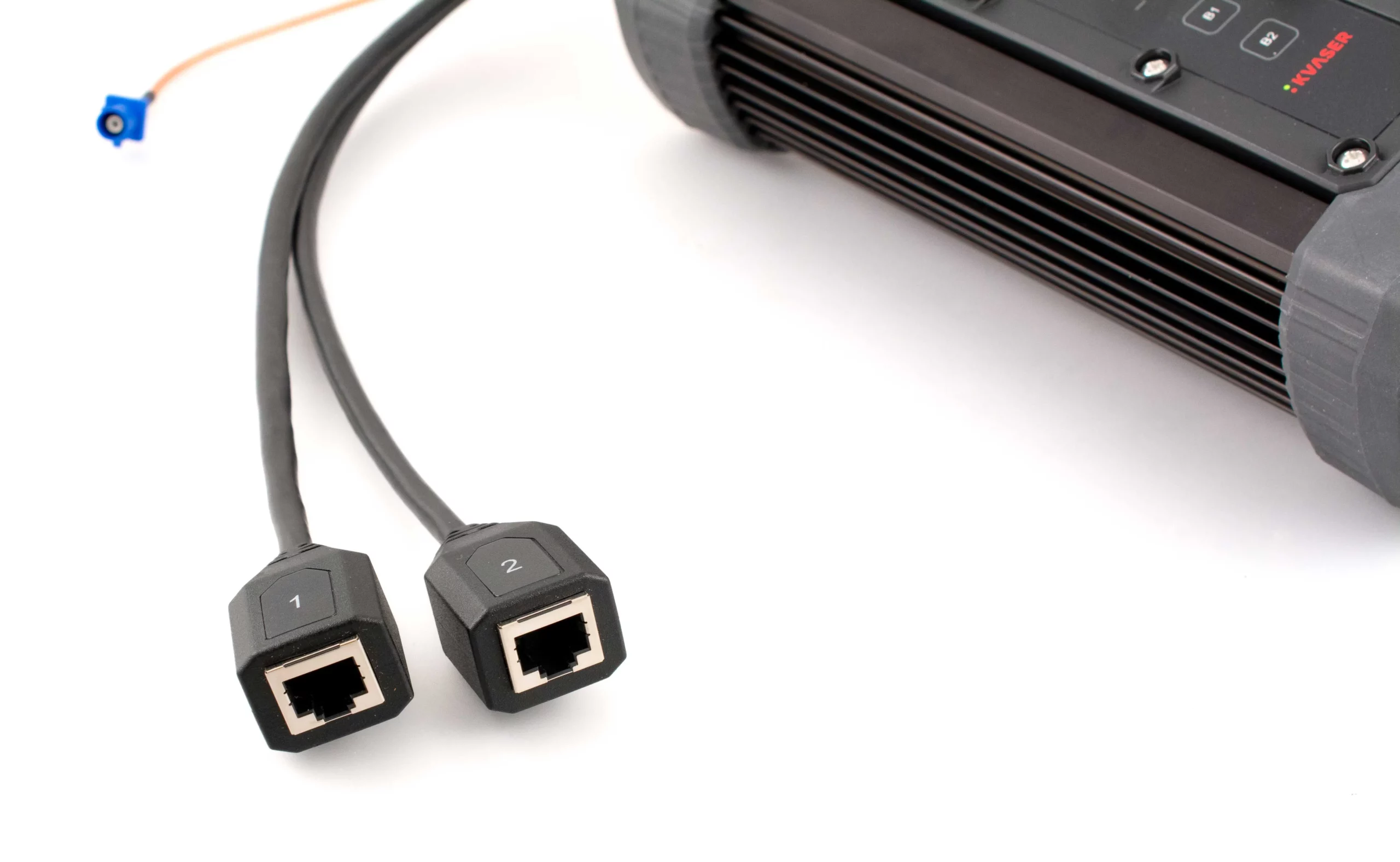

- WiFi 6 and two Gigabit Ethernet (1000BASE-T) interfaces enable remote connectivity and simultaneous access to multiple networks.

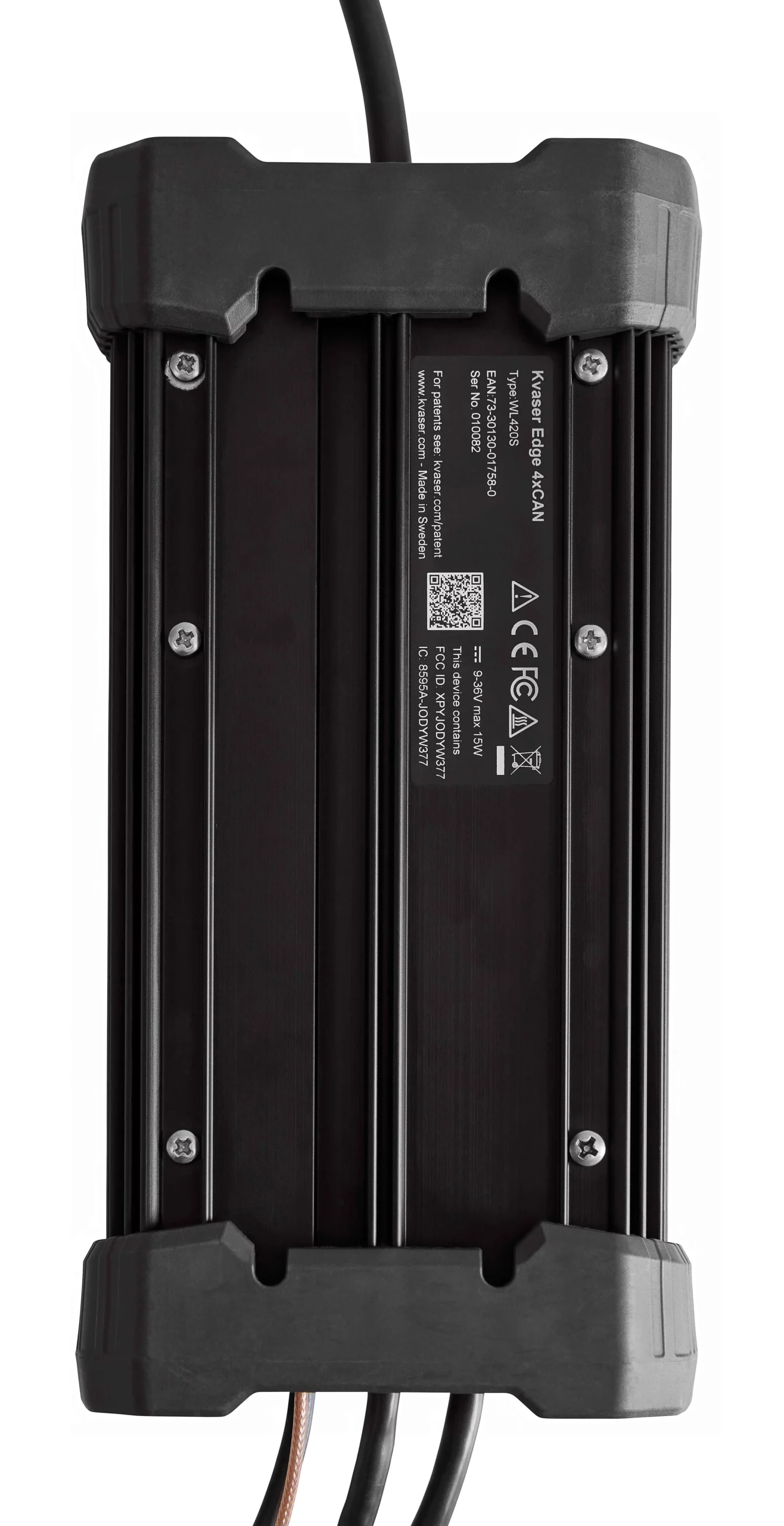

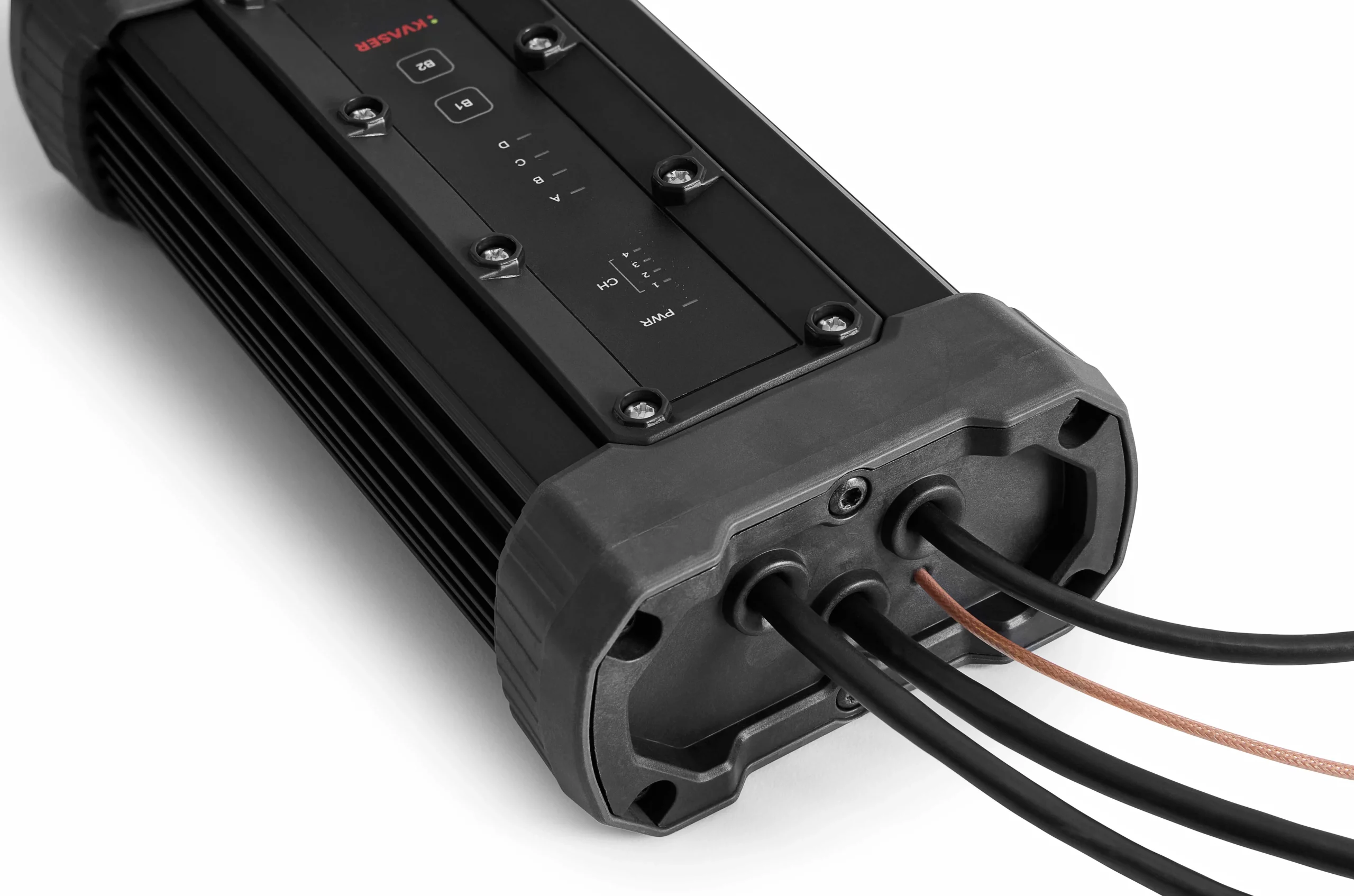

- Ruggedized housing with IP67 ingress protection and wired interfaces for durable, flexible connections.
- Inertial measurement units and Multi-GNSS support (GPS, Galileo, GLONASS, BeiDou) for enhanced positioning accuracy and reliability.
- Galvanically isolated GPIO interfaces enable trigger-based logging.
- Separate galvanically isolated power supply supports activation by ignition signal, while the high-capacity battery ensures safe shutdown and supports intermediate operation.
Â
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting [email protected].
-
Tech Specs

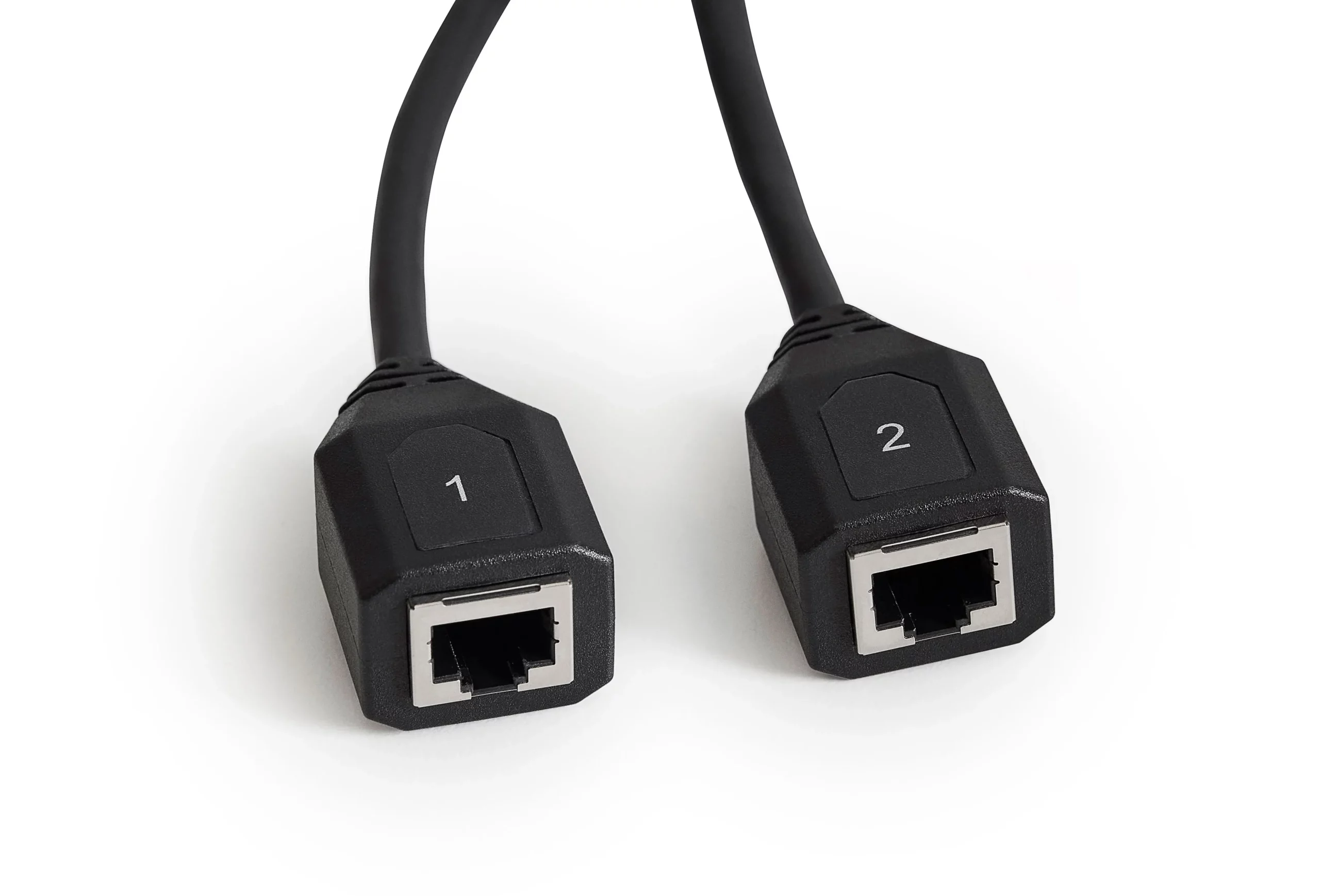

2 x Gigabit Ethernet 1000BASE-T, RJ45 Socket
-
