EAN: 73-30130-01588-3
ShareKvaser D-SUB 9 M12 Adapter 100 cm
EAN: 73-30130-01588-3
ShareKvaser D-SUB 9 M12 Adapter 100 cm

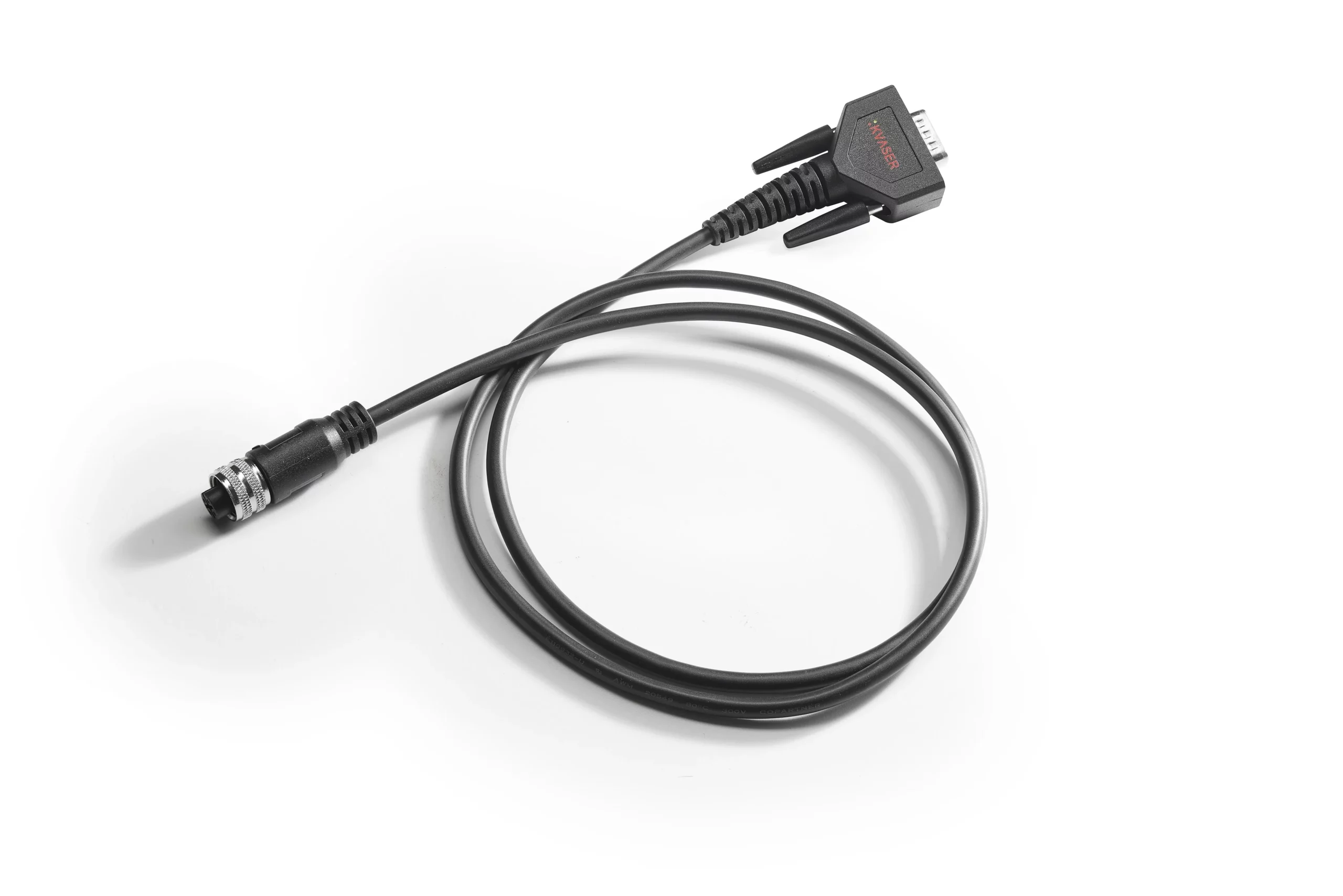

With an NMEA compatible 5-pin M12 socket connector at one end and a standard 9-pin D-SUB plug connector at the other, this 100 cm cable connects the Kvaser Air Bridge M12 or any CAN interface with M12 connector to installations based on 9-pin D-SUB connectors. It facilitates e.g. the integration of Kvaser Air Bridge M12 in a machine exposed to harsh conditions while simplifying the connection at the other end of the wireless bridge. It also facilitates the connection of Kvaser Air Bridge devices or any CAN interface with M12 connector to a computer for device configuration and firmware upgrade. Kvaser’s adapter cables have a high quality, ruggedized construction with M12 connectors that meet the IP67 standard for water and dust ingress.
Â
-
Downloads
-
Description
Major Features

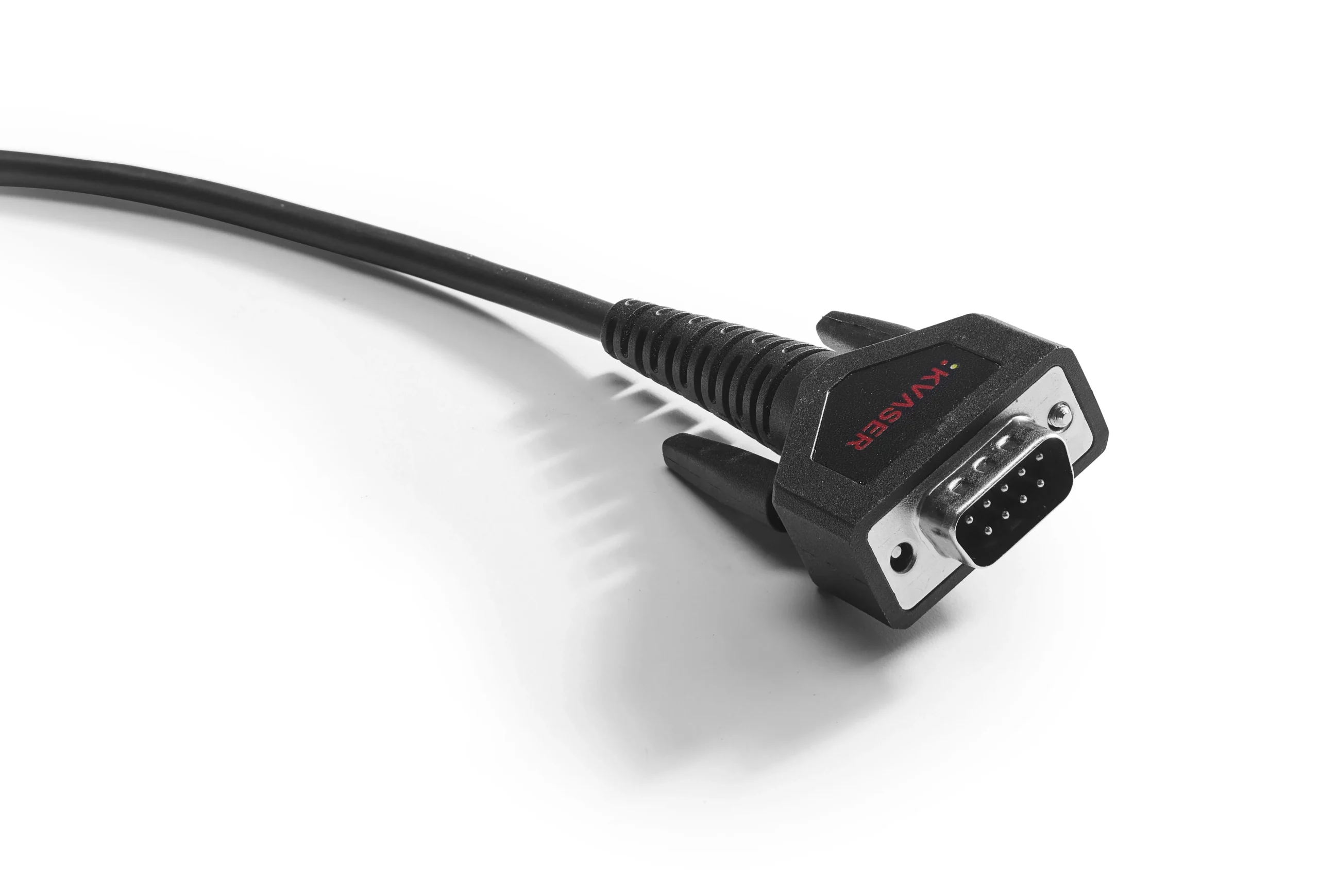

- Standard 9-pin D-SUB connector.

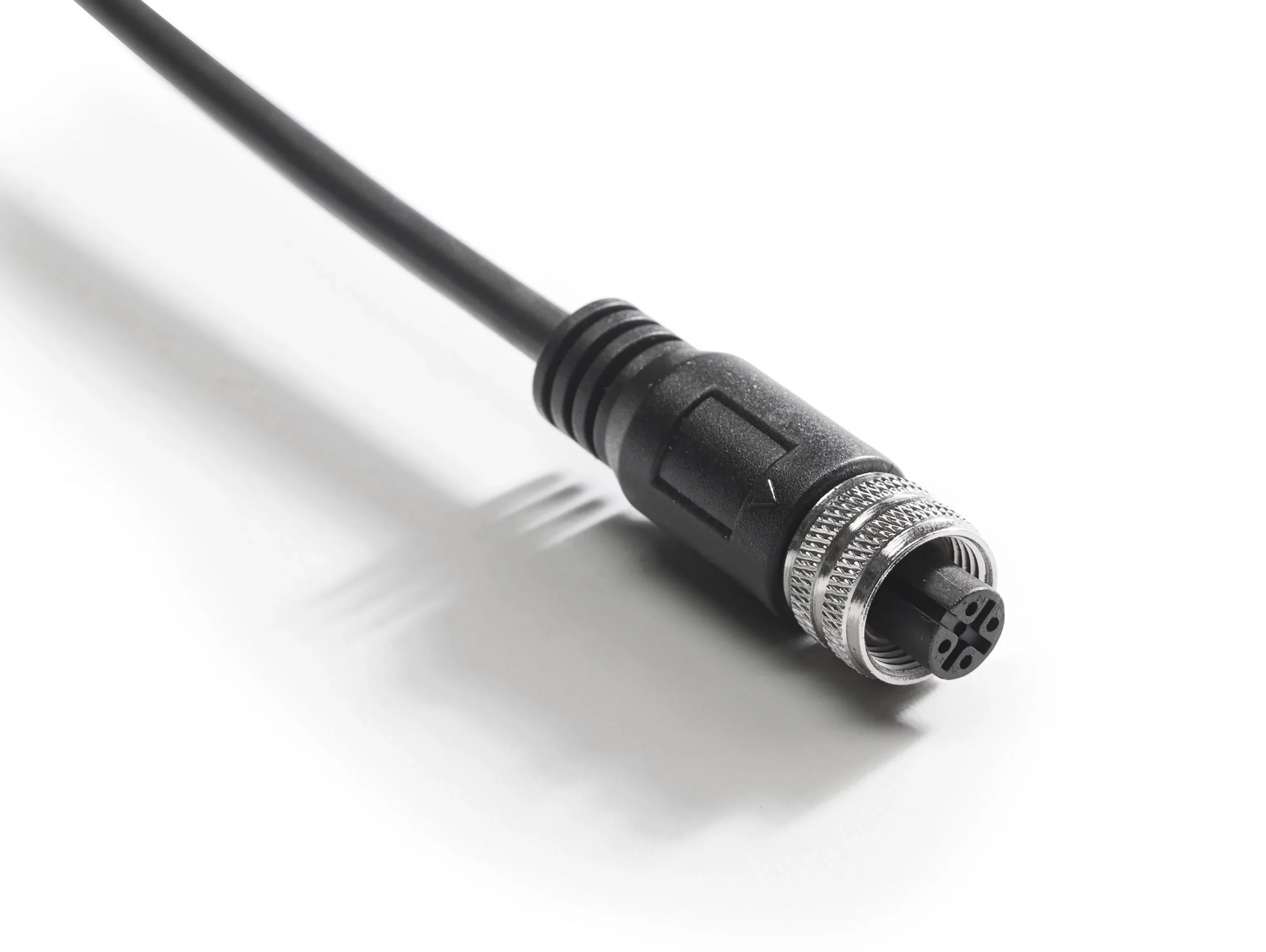

- M12 5-pin A-code connector.
- 1000 mm (3.28 ft) long cable made of durable thermoplastic rubber.
Learn more:
Youtube:Â Kvaser CAN adapter cables
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com. -
Tech Specs
CategoriesAccessories, CABLES, Hardware
CertificatesCE, RoHS
Channels1
ConnectorsDSUB 9, M12 5 pin
Length1000 mm
MaterialPolyurethane
Temp range-40 °C to 85 °C
Weight76 g
-
