Kvaser Mini PCI Express 2xHS
Dual channel Mini PCI Express CAN interface; PC communication over USB system bus.
$677.00

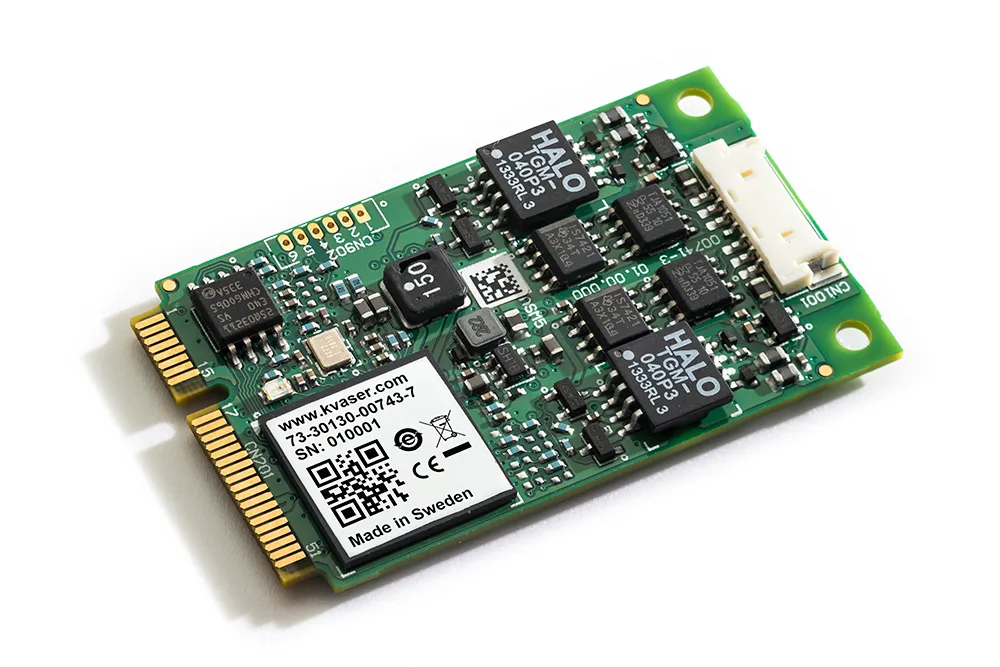

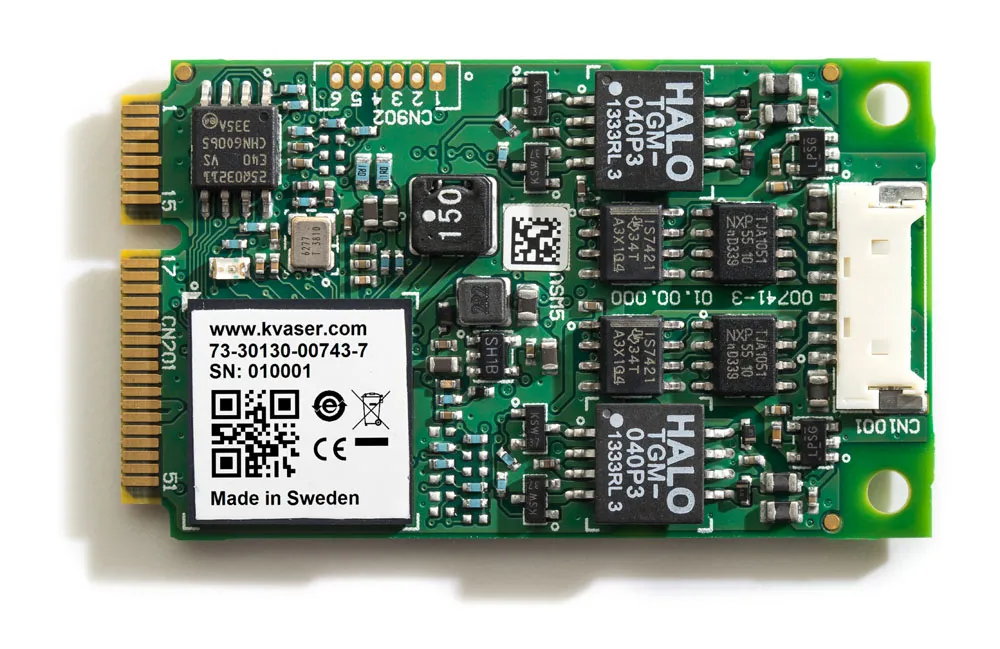

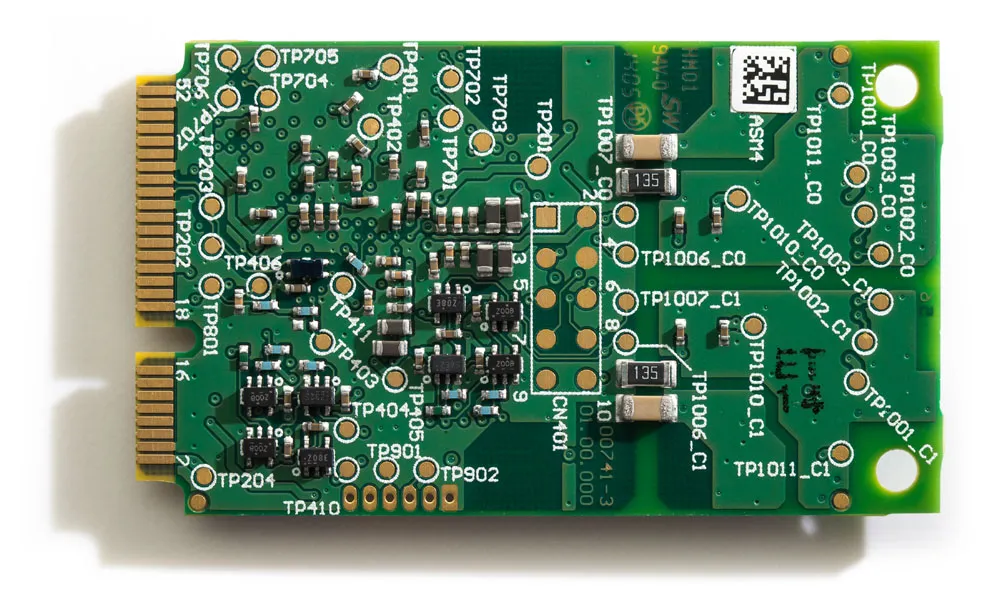

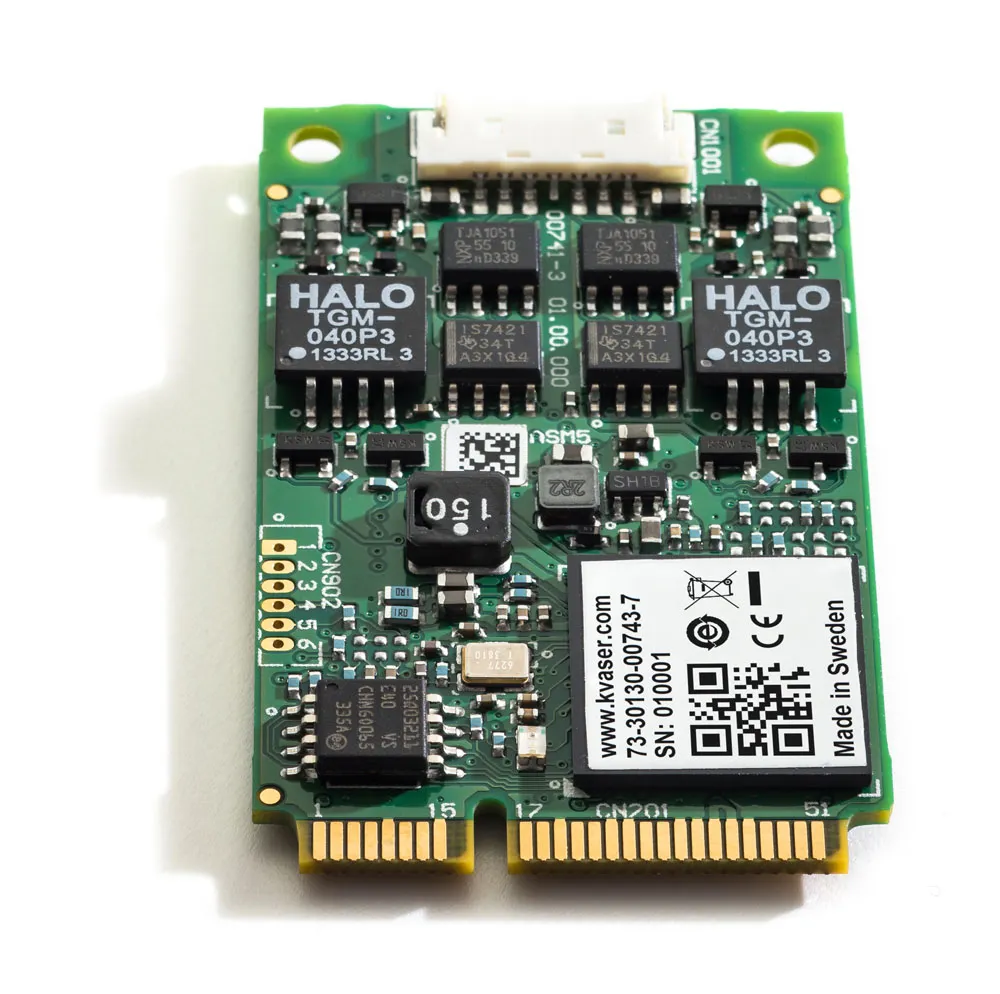

The Kvaser Mini PCI Express 2xHS is a dual channel Mini PCI Express CAN interface with PC communication over the USB 2.0 system bus. Measuring 30 x 51 mm, this highly integrated CAN (controller area network) add-on board adds two high speed CAN channels to any standard computer board with Mini PCI Express capability.
Offering silent mode, error frame detection, and an on-board buffer, the small form factor board fits embedded data acquisition systems and is particularly suitable for fleet management applications.

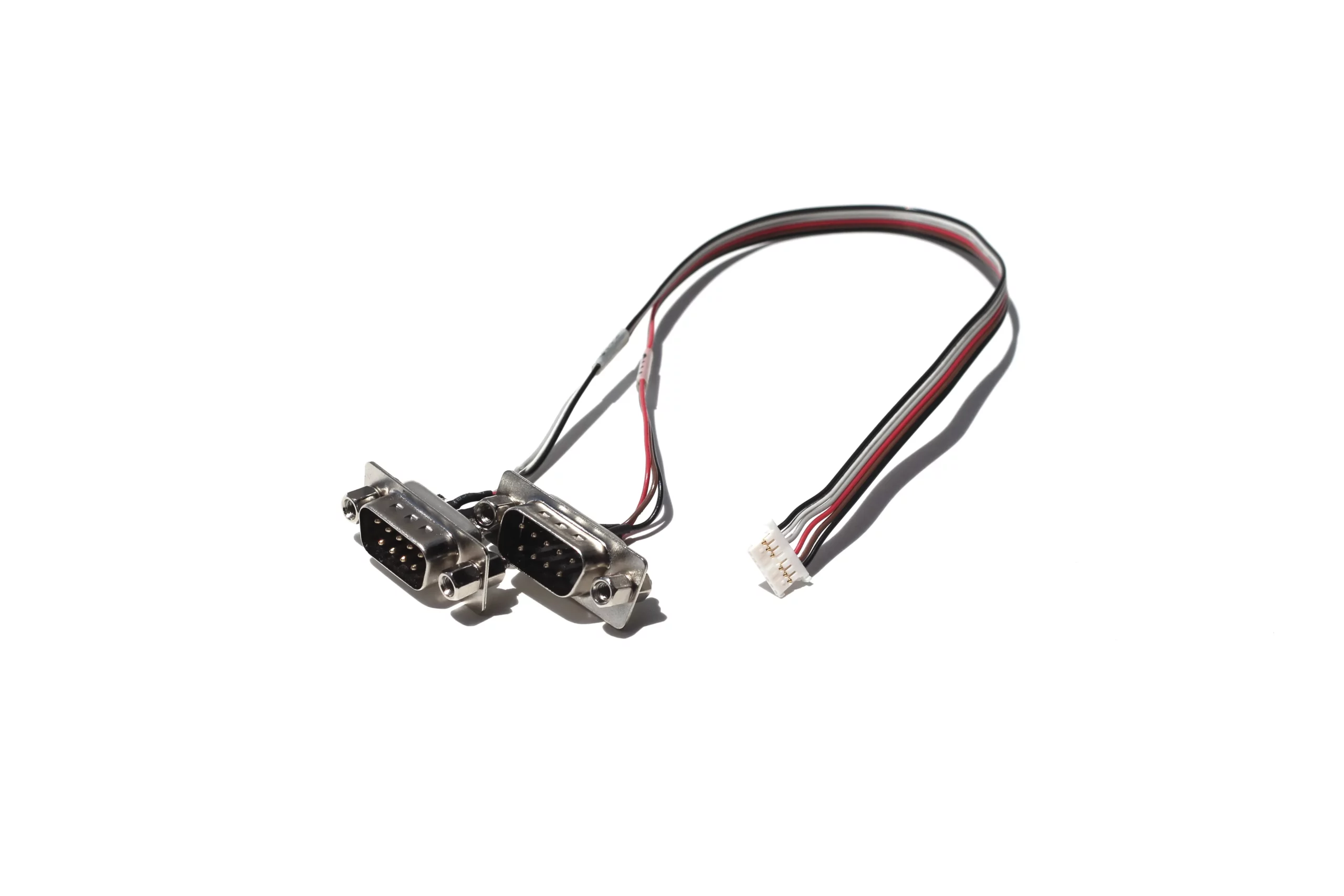

A 2xDS9 breakout cable is included.
Kvaser Software included
CanKing 7
CanKing 7 is Kvaser's CAN & LIN bus analysis software, compatible with all Kvaser CAN and LIN interfaces. Download here separately.
FREE with this product
-
Downloads
Documentation
Download Datasheet
US Letter
Version 7.6.260531
Kvaser Mini PCI Express Users Guide
User guide for Kvaser Mini PCI Express
Driver
Version 4.1.0
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version 5.52.559
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also con
Version 5.52.563
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
Version 1.23.358
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardwar
Firmware
Version 4.41.0
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Development Kits and Tools
Version 5.52.563
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for
Version 1.0.0
Kvaser D-PDU Library
D-PDU API (ISO-22900) for Kvaser CANLib Modules (Interfaces) as a C library
Version 1.0.0
Kvaser ISO-TP Library
Kvaser ISO-TP (ISO 15765-2) Library
Version 1.0.1
Kvaser J1939 Library
J1939 transport protocol and address claim for Kvaser CANLib
Version 23.1.0
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version 6.0.0
Kvaser RP1210C API
Support library for using RP1210-compliant applications with Kvaser CAN interfaces
Version 1.33.358
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version 1.0.1
Wireshark Plugin for Linux amd64
Wireshark plugin for Kvaser CAN Interfaces.
Version 1.0.1
Wireshark Plugin for Windows
Wireshark plugin for Kvaser CAN Interfaces.
Version 6.27.701
Kvaser CanKing
This is the old version of our free, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and includes support for the virtua
Version 7.5.0
Kvaser CanKing 7 for Linux amd64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.5.0
Kvaser CanKing 7 for Linux arm64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
Version 7.5.0
Kvaser CanKing 7 for Windows x86-64
CanKing 7 is Kvaser's free, general-purpose CAN and LIN bus analysis software that is compatible with all Kvaser CAN and LIN interfaces.
-
Description
Major Features
- Supports a bit rate from 40 to 1000 kbit/s and a CAN transfer rate up to 20000 messages/s.
- Time stamp accuracy is 25 µs.

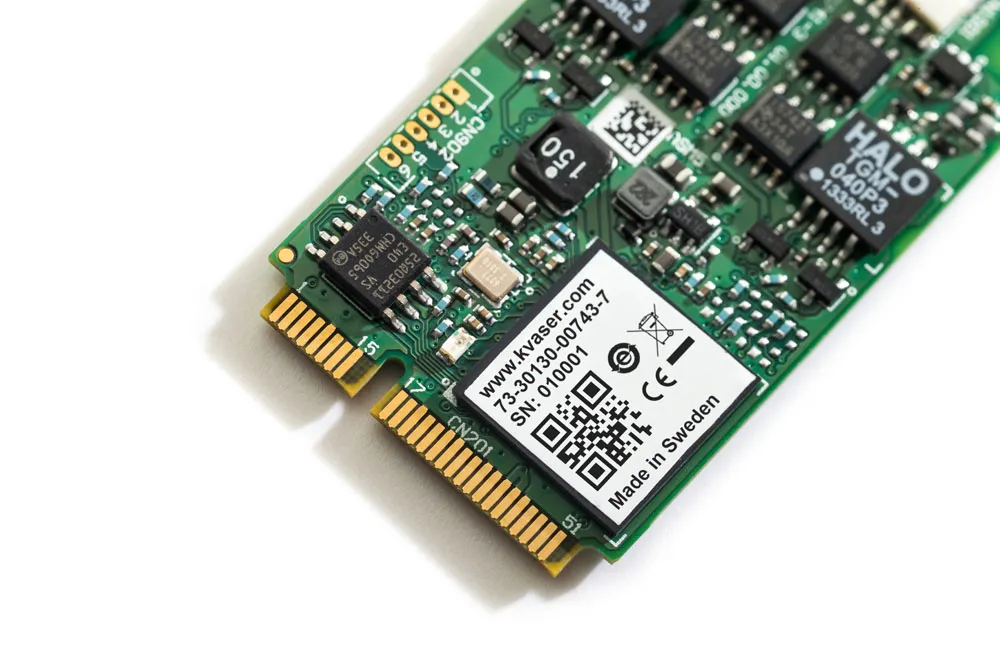

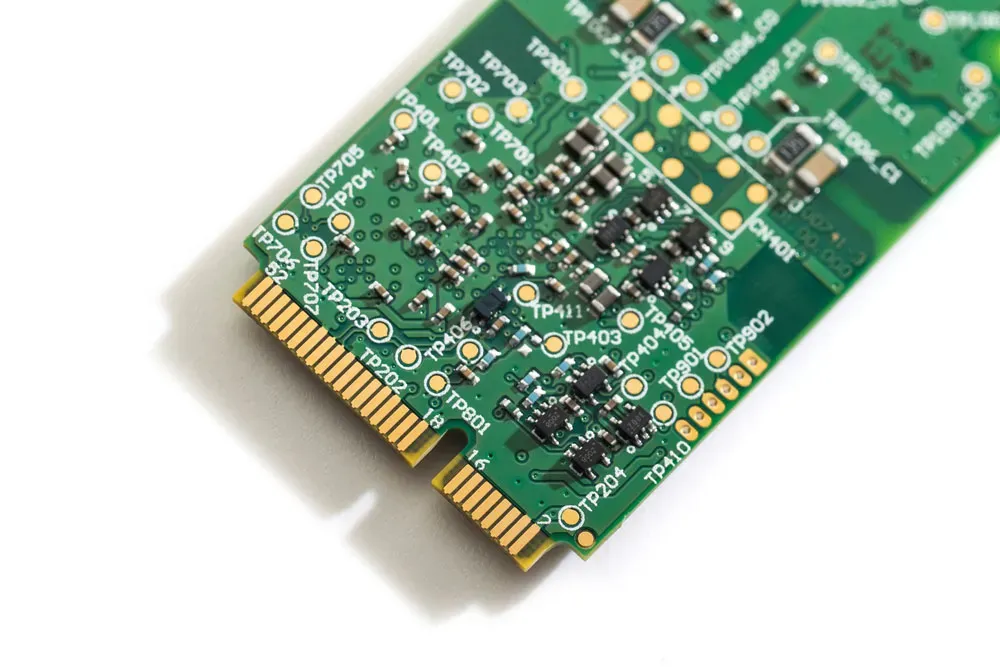

- Low profile connector complies with the mini PCI Express standard, which connects via a cable to a DSUB (or other type) at the computer housing.

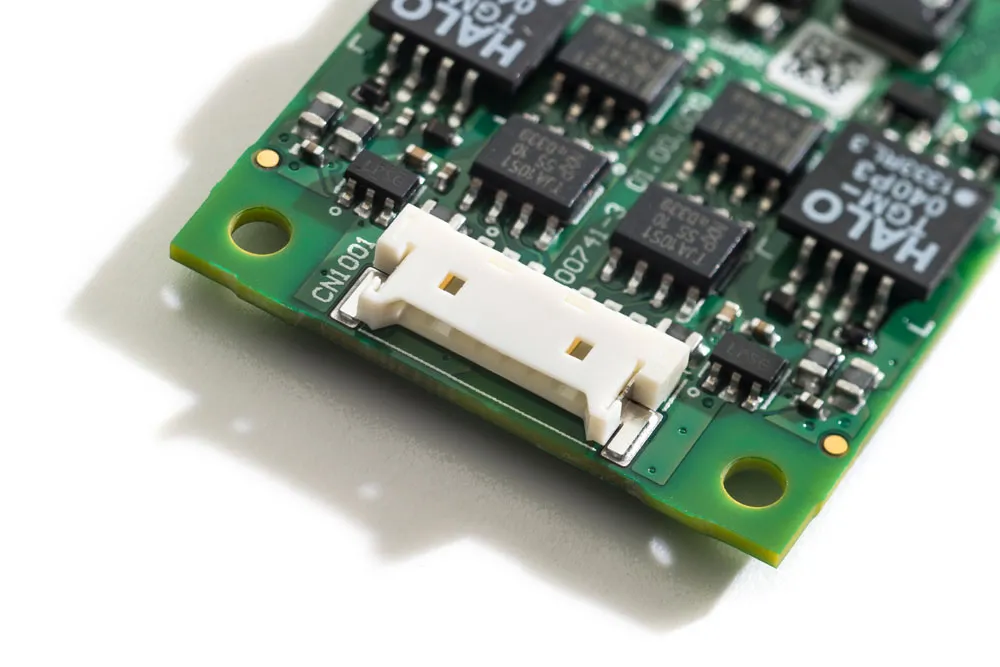

- A 7 pin Molex connector provides dual CAN channel access.
- Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
- Operates over the industrial temperature range of -40 to +85°C.
- Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS board.
- Support for Linux, in the form of drivers and a dedicated SDK, are available as a separate download
- Support for SocketCAN, see elinux.org for details.
- Includes Molex to DSUB9 cable adapter.
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting [email protected].
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
-
Tech Specs
Windows 7 (IA-32 and x86-64), Windows 8 (IA-32 and x86-64), Windows 10 (IA-32 and x86-64), Windows 11 (x86-64), Linux
-
