Description
Major Features
- Standard 9-pin DSUB connector

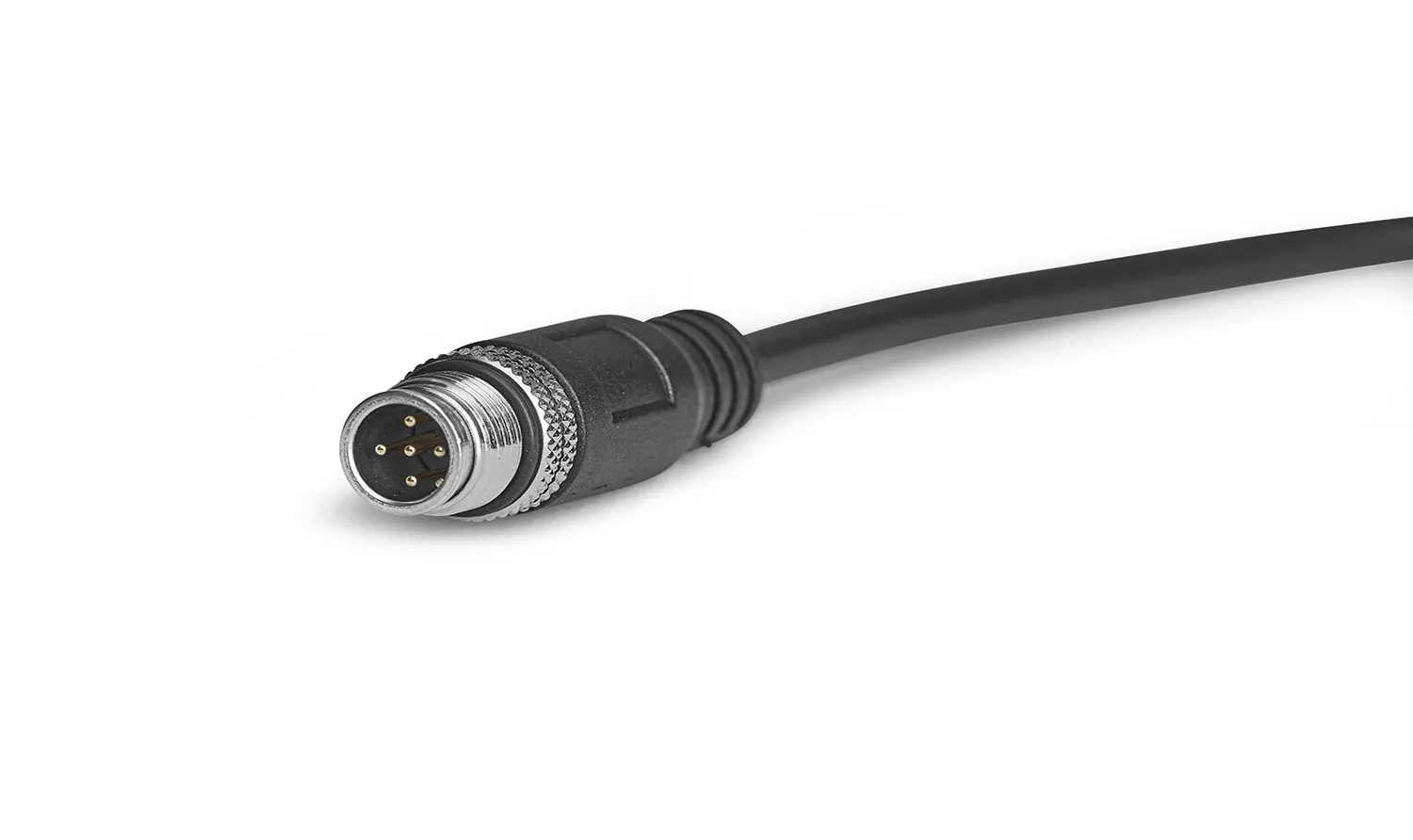

- M12 5-pin A-code connector
Learn more:
Youtube:Â Kvaser CAN adapter cables
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com. -
Tech Specs
CategoriesCABLES, Hardware, Accessories
CertificatesCE, RoHS
Channels1
ConnectorsM12 5 pin, DSUB 9
Length300 mm
Temp range-40 °C to 85 °C
Weight52 g
-
Media
Images
Video
Kvaser CAN adapter Cables
Industry-specific adapters are now available to connect a Kvaser interface to several standard vehicle connectors. These can be used with the new Kvaser Leaf v3 range or any CAN (Controller Area Network) interface with a 9-pin D-SUB. -
Where to Buy
-
View Software
WE HAVE OVER 83 UNIQUE SOFTWARE OPTIONS TO PAIR WITH KVASER HARDWARE
As well as having a premium global reseller network, Kvaser provides all it’s customers with access to a large number of tailored software that works perfectly with Kvasrer hardware.
Bus Analysis
28 Software Partners in this categoryCalibration
11 Software Partners in this categoryCANopen
17 Software Partners in this categoryData Acquisition
15 Software Partners in this categoryDiagnostics
20 Software Partners in this categoryECU Development
15 Software Partners in this categoryFlash Programming
5 Software Partners in this categoryProtocol Stack
14 Software Partners in this categorySystem Development
23 Software Partners in this categoryKvaser-Compatible Software Provided by 83 Software Partners

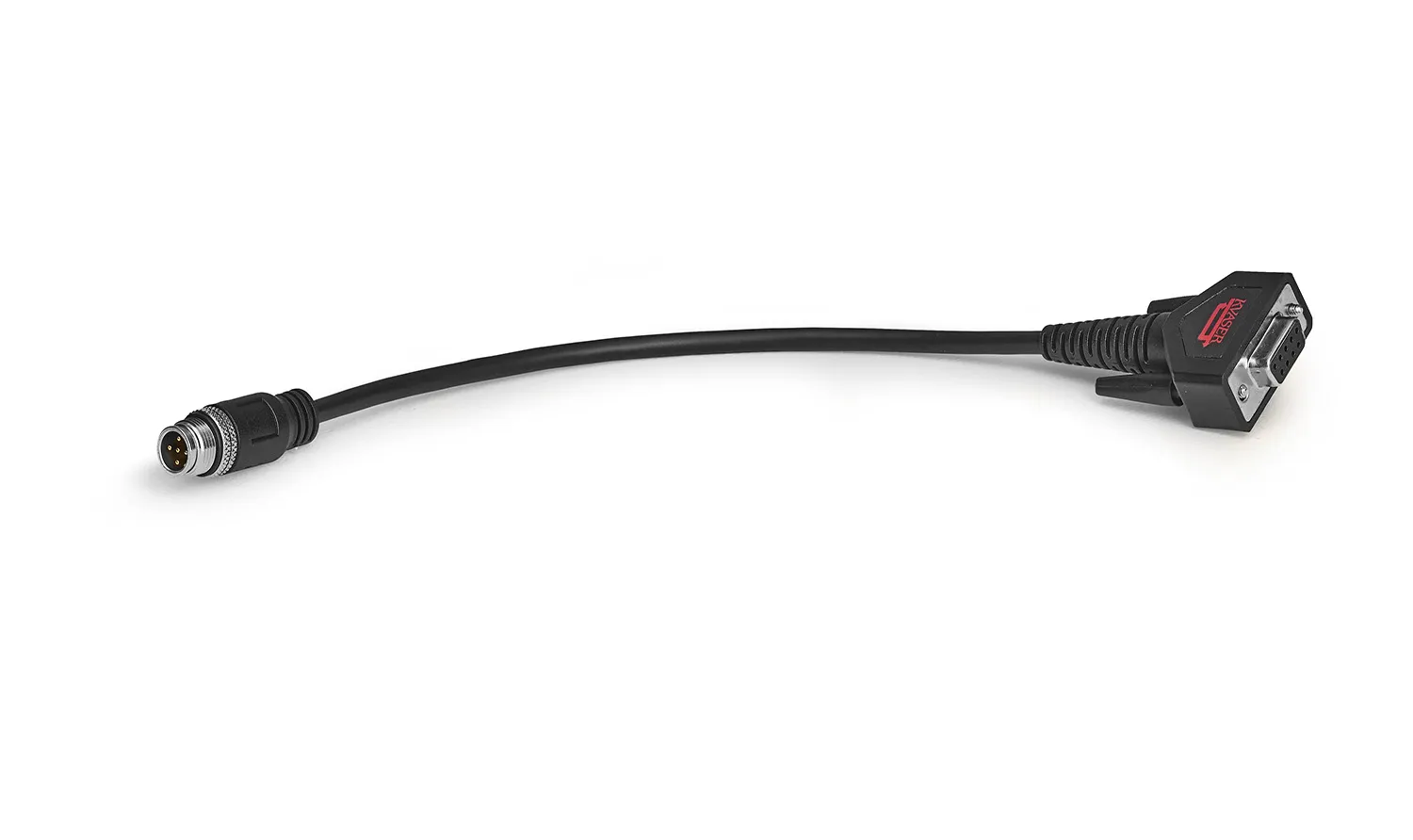

With a standard 9-pin Dsub at one end and a NMEA compatible 5-pin connector at the other, this 30 cm cable connects the Kvaser Leaf v3 or any CAN interface to equipment using the NMEA compatible connector, typically a marine electronics system. Kvaser’s adapter cables have a high quality, ruggedised construction that meet the IP67 standard for water and dust ingress.
