EAN: 73-30130-01430-5
ShareKvaser Leaf Light v3 OBDII
$407.00 USD
EAN: 73-30130-01430-5
ShareKvaser Leaf Light v3 OBDII
$407.00 USD

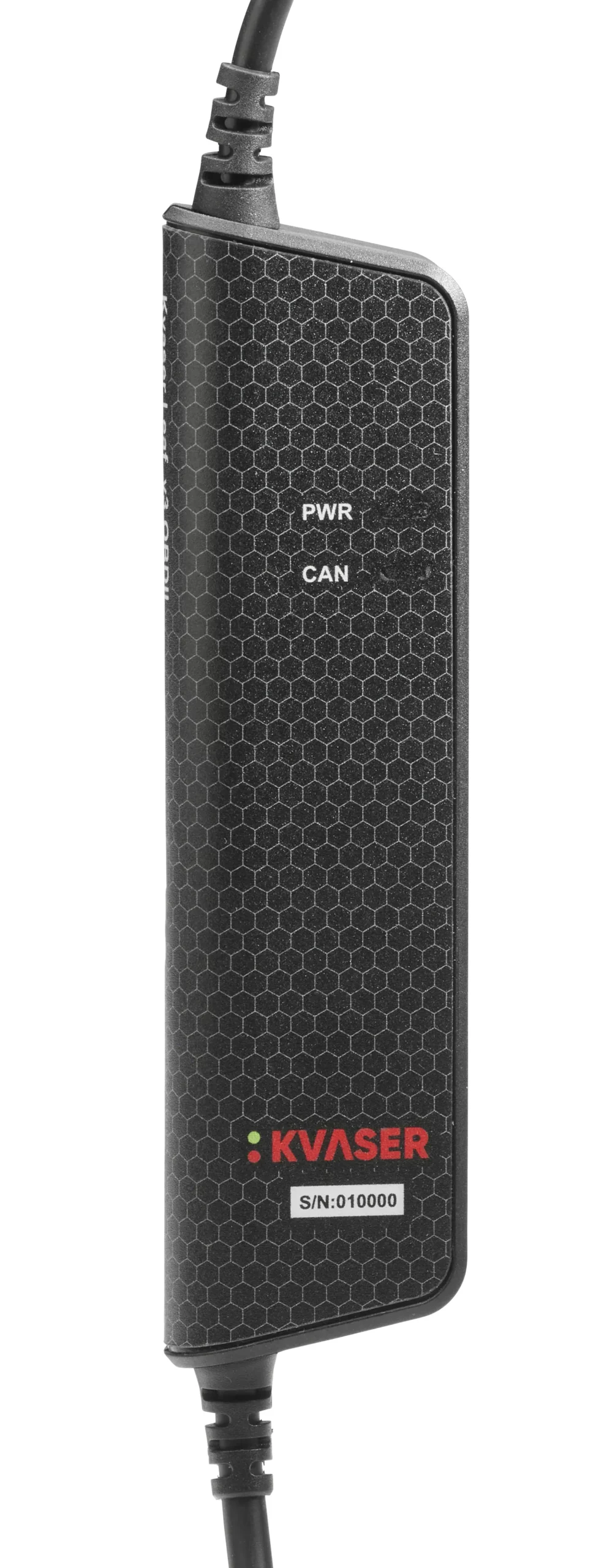

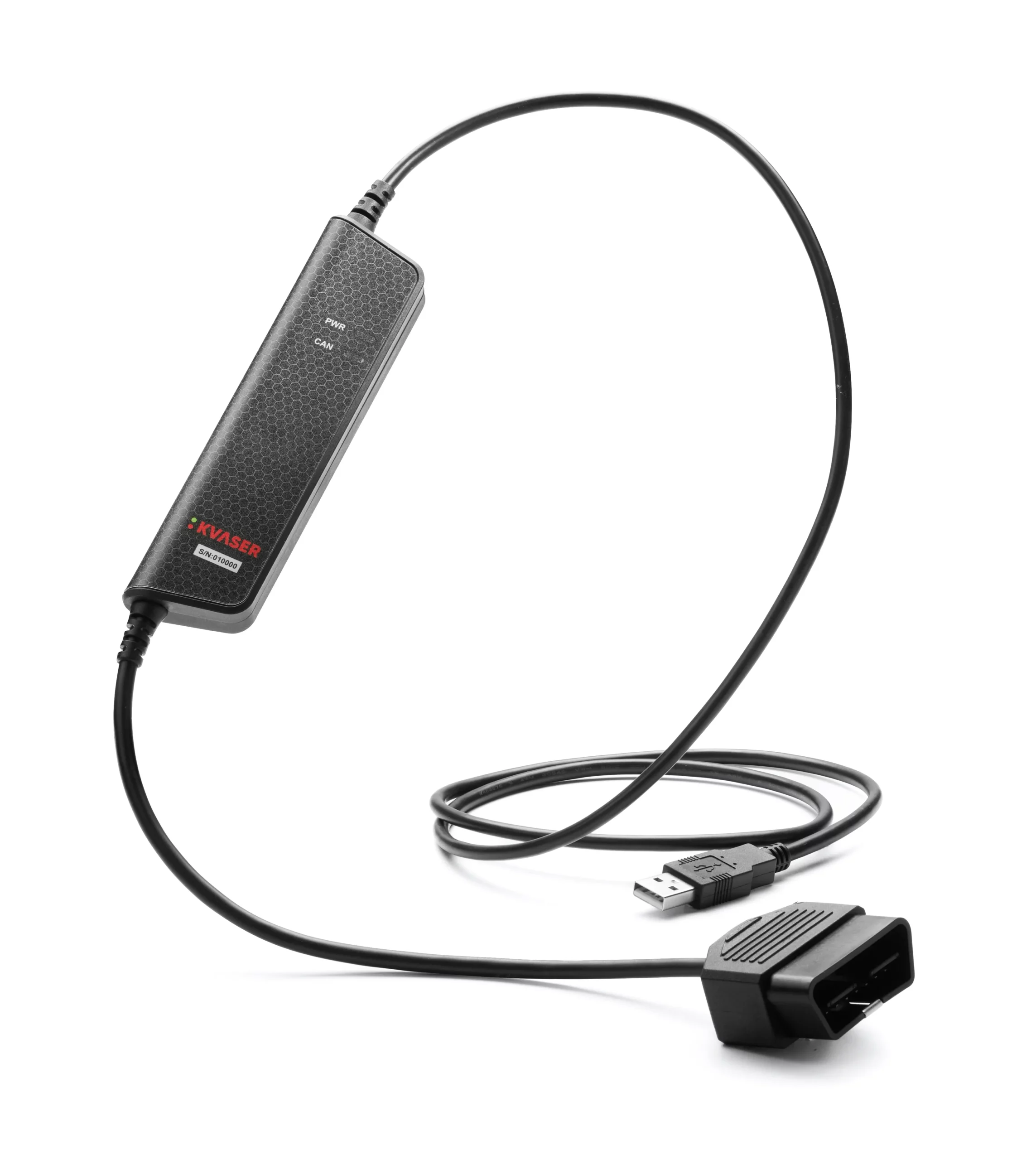

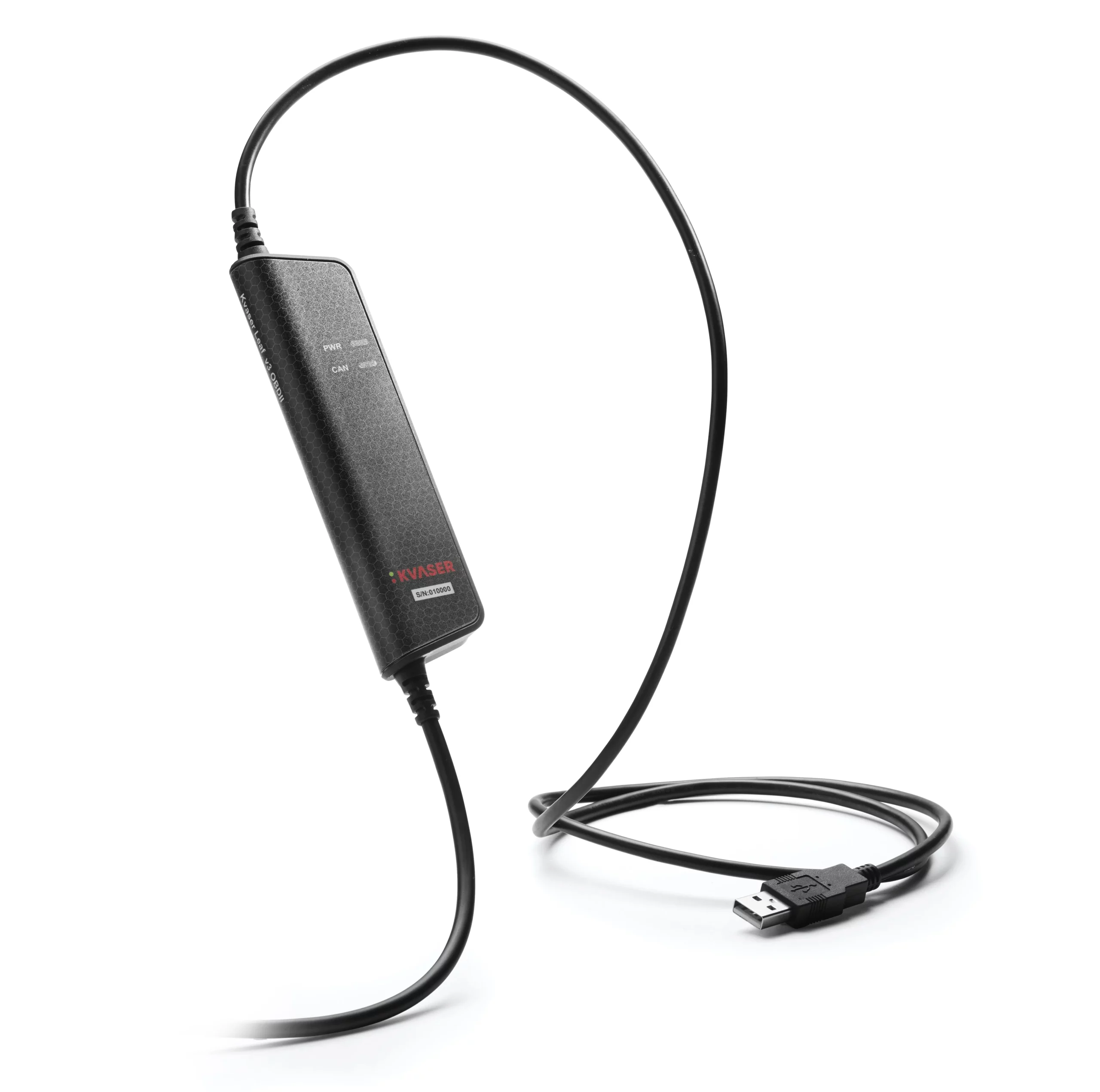

The Kvaser Leaf v3 OBD II provides seamless access to vehicle diagnostics from your PC. It features a USB Type-A connector and a 16-pin OBD II connector, offering direct access to data from the Engine Control Unit (ECU). The ECU stores diagnostic trouble codes (DTCs), enabling your software to retrieve engine performance data, fuel efficiency metrics, emissions information, and system error codes via the OBD II interface.
Capable of processing up to 20,000 messages per second, each timestamped with 50-microsecond accuracy, the Leaf v3 OBD II is the ideal Vehicle Communication Interface (VCI), suitable for development purposes, production, after-sales and repair. It includes standard galvanic isolation for reliable and safe operation.
-
Downloads
-
Description
- USB 2.0 CAN interface.
- Powered through the USB Type A-connector.
- Compact 16-pin OBD II connector with extra strong strain relief.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- 20 000 msg/s, each timestamped with a resolution of 50 μs.
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Support for SocketCAN.
- Supports simultaneous usage of multiple Kvaser interfaces.
Â
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com.
Software- Documentation, software and drivers can be downloaded for free at kvaser.com/download.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types.
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.Â
-
Tech Specs
Bit Rate (kbps)20 - 1000 kbps
CAN FD BitrateUp to 8 Mbit/s
CategoriesHardware, Interfaces, CAN
CertificatesCE, FCC
Channels1
ConnectorsOBD-II /J1962
Error Counters ReadingNo
Error Frame GenerationNo
Galvanic IsolationYes
Silent ModeYes
Height17 mm
InterfacesUSB
Length165 mm
Messages Per Second Receive20000 mps
Messages Per Second Sending20000 mps
Temp range-20 °C to 70 °C
Timestamp Resolution (µs)50 µs
Weight130 g
-
Media
-
Where to Buy
-
View Software
WE HAVE OVER 83 UNIQUE SOFTWARE OPTIONS TO PAIR WITH KVASER HARDWARE
As well as having a premium global reseller network, Kvaser provides all it’s customers with access to a large number of tailored software that works perfectly with Kvasrer hardware.
Kvaser-Compatible Software Provided by 83 Software Partners
Share
Where is the Serial Number?

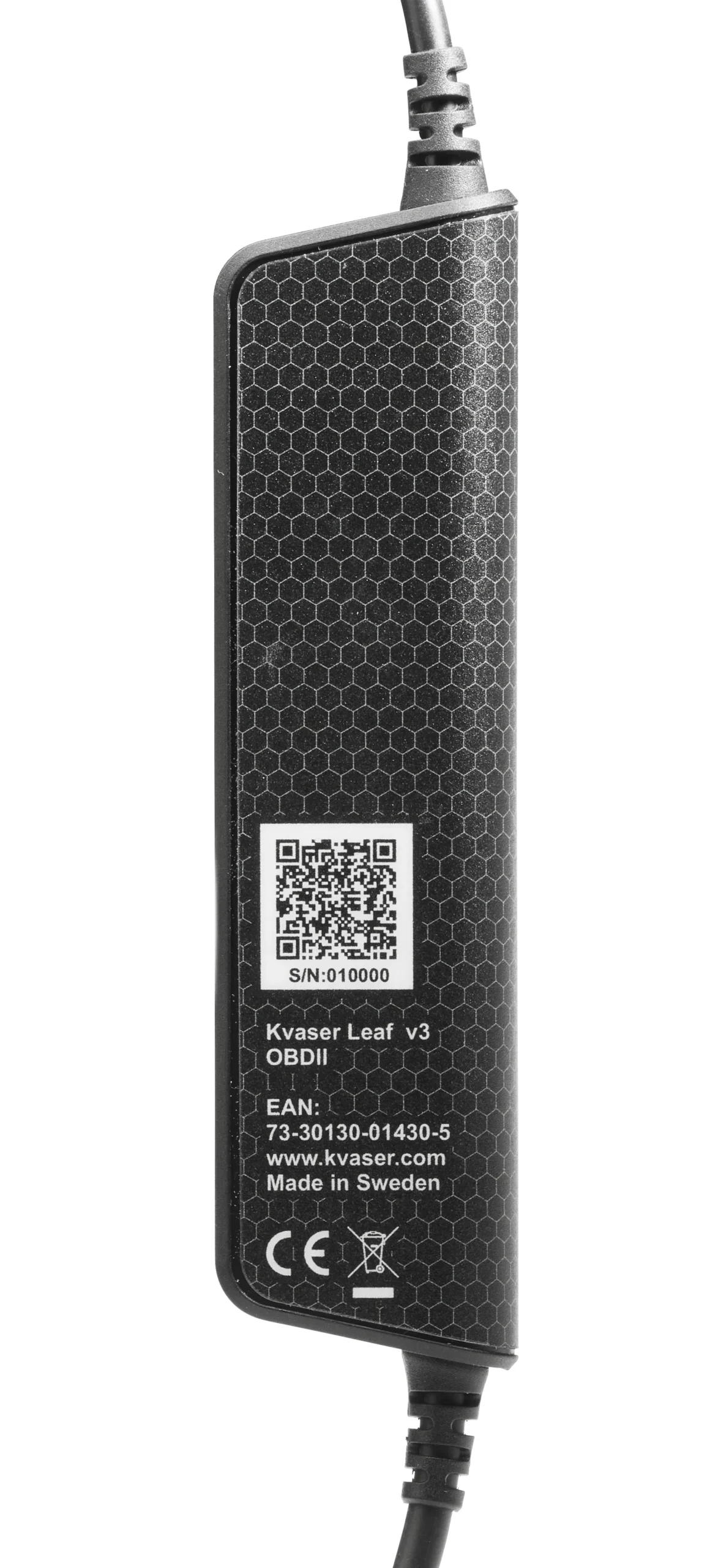

You can find the serial number (SN, Ser.no) next to the Bar/QR Code sticker on every Kvaser product.
