EAN: 73-30130-01426-8
ShareKvaser Leaf Light v3 J1939-13 Type II
$407.00 USD
EAN: 73-30130-01426-8
ShareKvaser Leaf Light v3 J1939-13 Type II
$407.00 USD

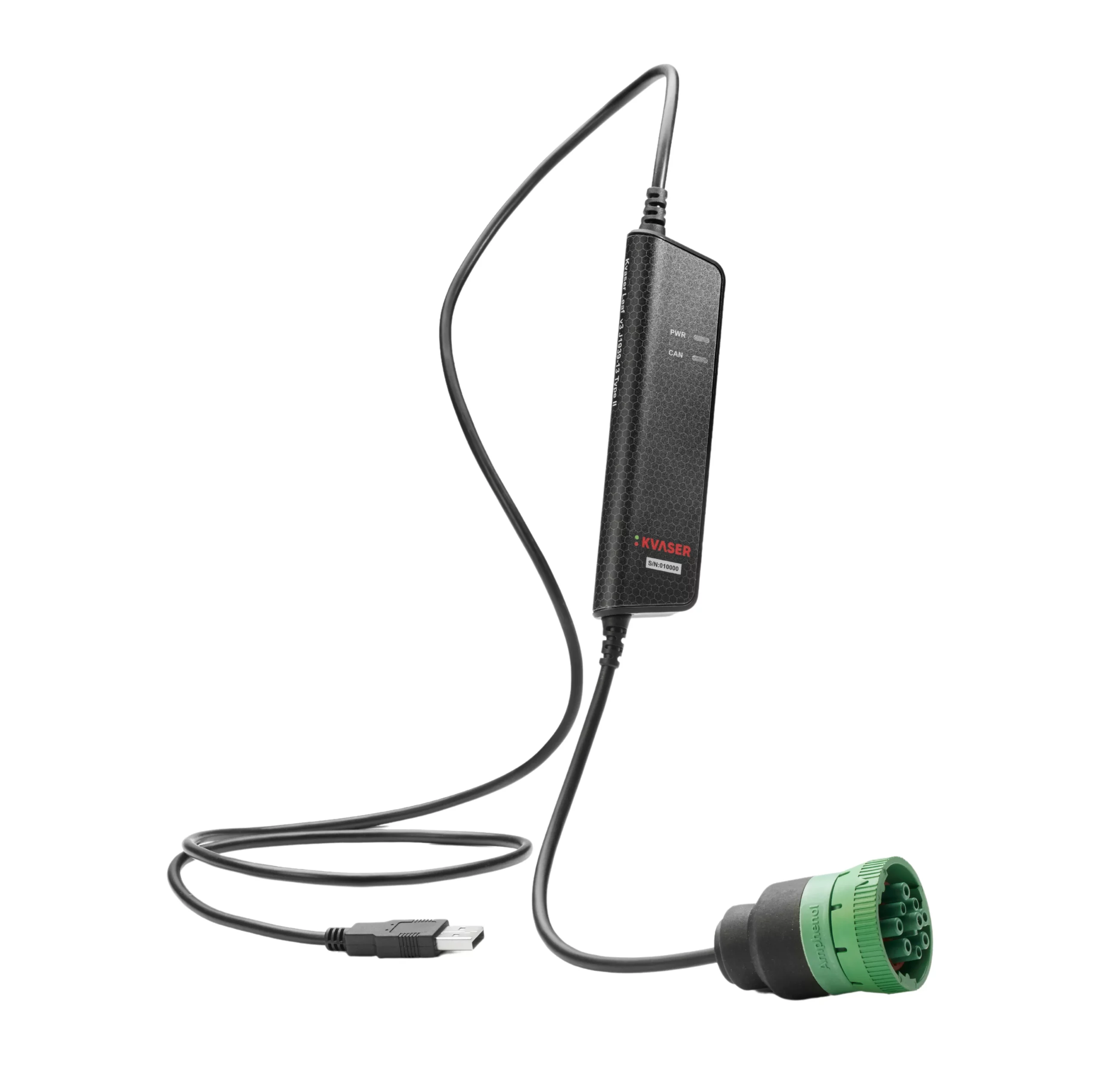

The Kvaser Leaf v3 J1939-13 is a reliable tool for connecting a computer to a CAN bus network, enabling the monitoring and transmission of CAN and CAN FD data. It features a USB Type-A connector and a 9-pin J1939-13 Type II connector; the latter is commonly used for diagnostics and communication in heavy-duty vehicles.
The Type II connector, colour-coded in green and supporting either 250 Kbps or 500 Kbps, is backward-compatible with the older Type I connector, colour-coded in black and limited to 250 Kbps.
Offering excellent value, the Kvaser Leaf v3 J1939-13 ensures reliable communication for vehicle networks where the J1939 protocol is critical.
-
Downloads
-
Description
- USB 2.0 CAN interface.
- Powered through the USB Type-A connector.
- Compact 9-pin J1939-13 Type II connector with extra strong strain relief.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- 20 000 msg/s, each timestamped with a resolution of 50 μs.
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Support for SocketCAN.
- Supports simultaneous usage of multiple Kvaser interfaces.
Â
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com.
Software- Documentation, software and drivers can be downloaded for free at kvaser.com/download.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types.
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.Â
-
Tech Specs
Bit Rate (kbps)20 - 1000 kbps
CAN FD BitrateUp to 8 Mbit/s
CategoriesHardware, Interfaces, CAN
CertificatesCE, FCC
Channels1
ConnectorsJ1939-13 Type II
Error Counters ReadingNo
Error Frame GenerationNo
Galvanic IsolationYes
Silent ModeYes
Height17 mm
InterfacesUSB
Length165 mm
Messages Per Second Receive20000 mps
Messages Per Second Sending20000 mps
Temp range-20 °C to 70 °C
Timestamp Resolution (µs)50 µs
Weight160 g
-
Media
-
Where to Buy
-
View Software
WE HAVE OVER 83 UNIQUE SOFTWARE OPTIONS TO PAIR WITH KVASER HARDWARE
As well as having a premium global reseller network, Kvaser provides all it’s customers with access to a large number of tailored software that works perfectly with Kvasrer hardware.
Kvaser-Compatible Software Provided by 83 Software Partners
Share

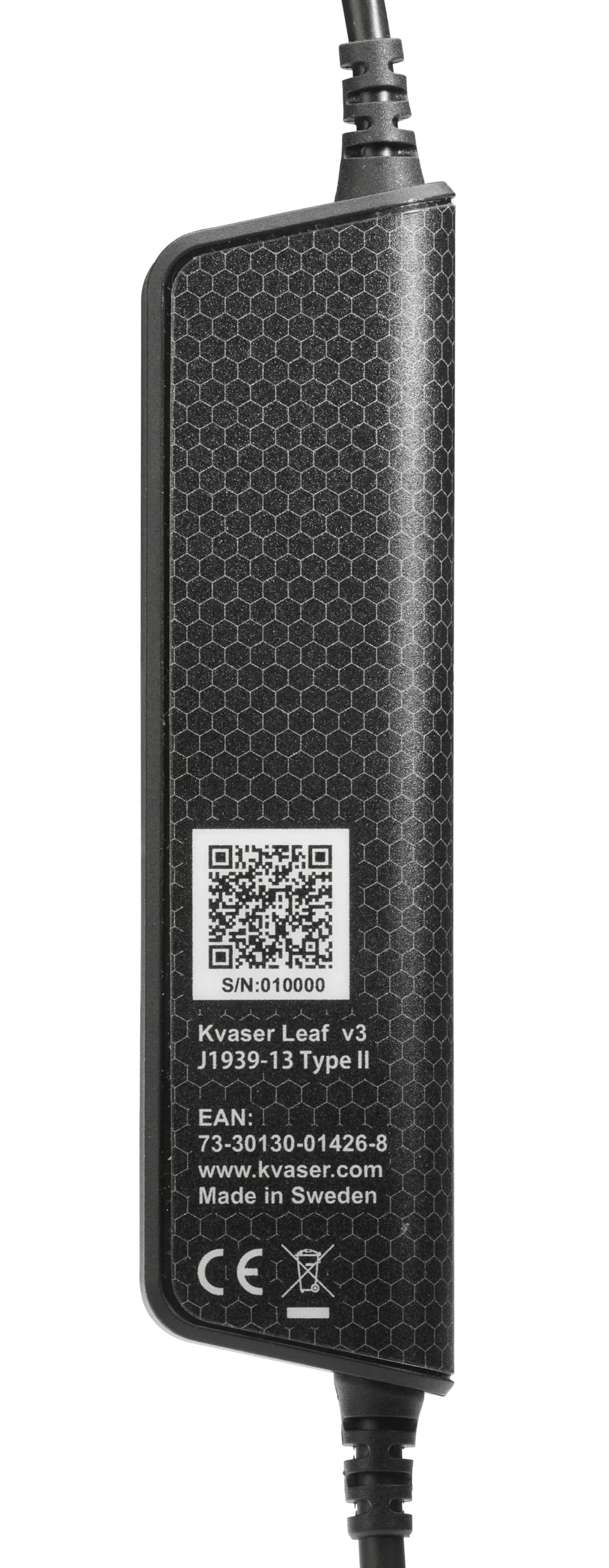

Where is the Serial Number?
You can find the serial number (SN, Ser.no) next to the Bar/QR Code sticker on every Kvaser product.
