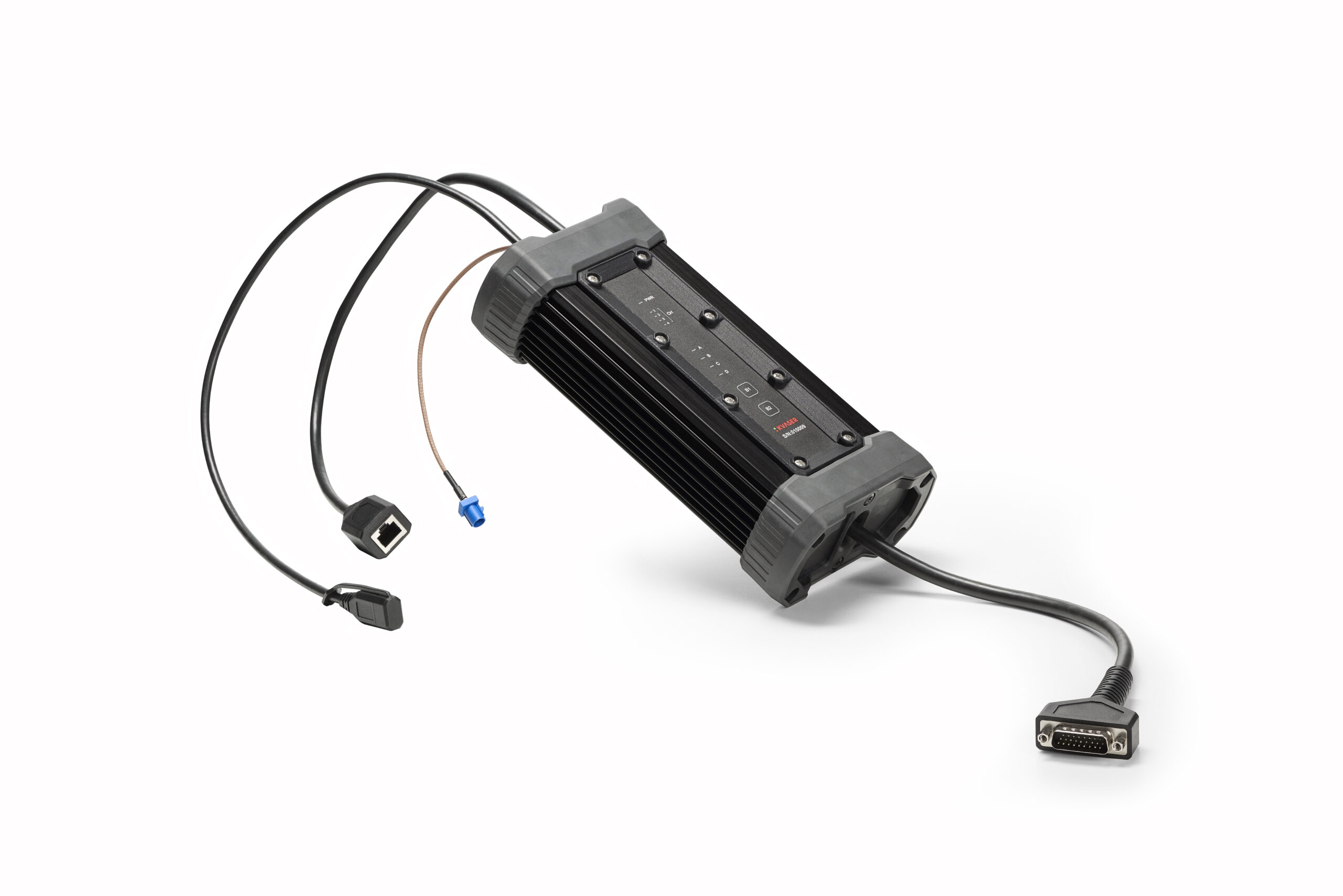

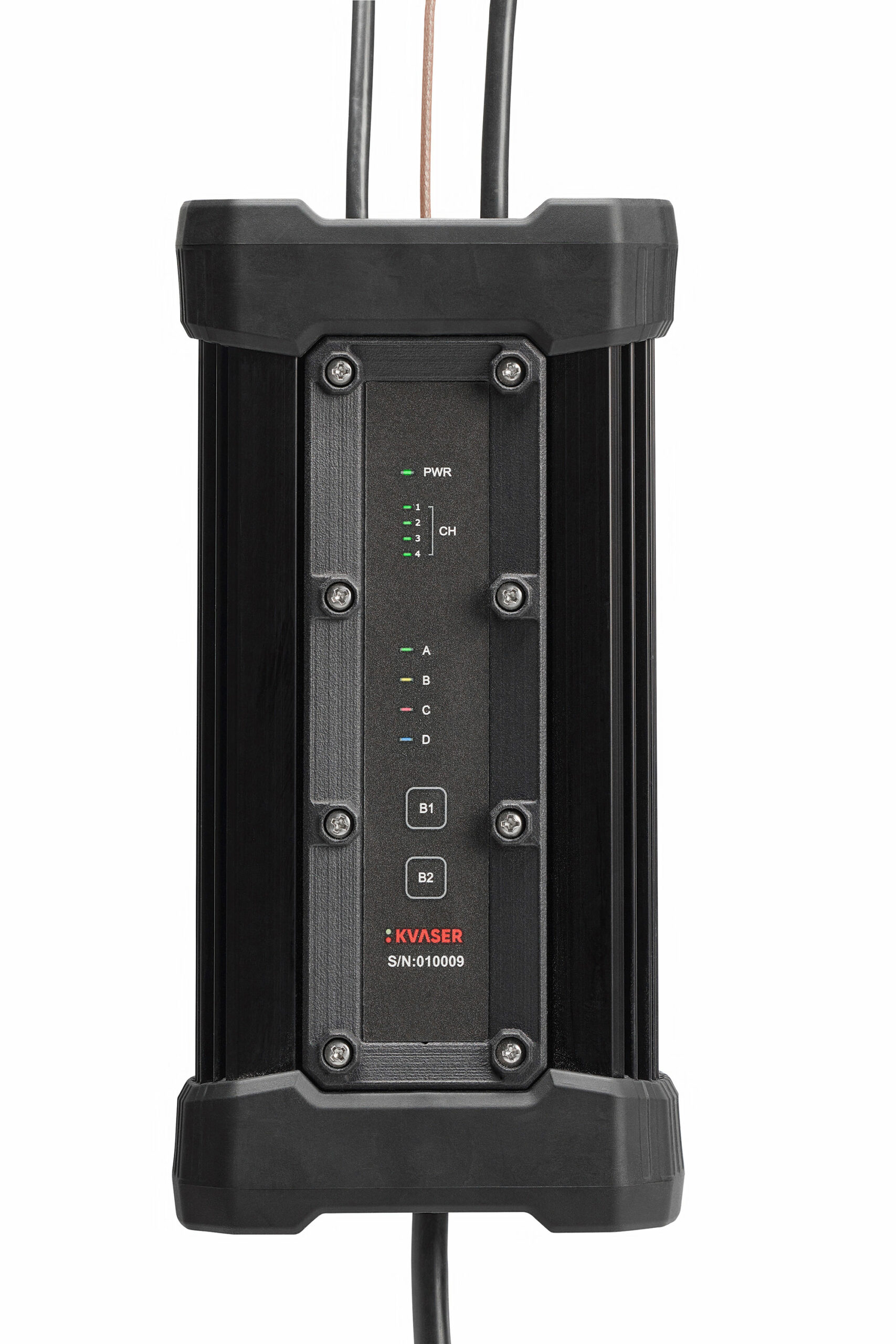

Kvaser Edge Platform
Secure, rugged, and ready for edge computing
Kvaser Edge is an open, yet highly secure Linux-based edge computing platform designed for real-time data acquisition, edge analytics, fleet management, and seamless cloud integration. Rugged and reliable, it excels in automotive and industrial applications, and allows you to implement your own software solution to capture, process, and act on data directly. With secure, high-performance capabilities and support for state-of-the-art CAN connectivity, the Kvaser Edge brings intelligence closer to the data source.
Extreme durability
Reliable performance in heat, moisture, and dust.
Secure by design
Protects your data in a contained environment, preventing system-wide risks.
Your environment, your way
Run any Linux distro and apps in a fully isolated customizable setup.
Bring intelligence closer to your devices
Kvaser Edge securely connects devices to the cloud through Wi-Fi 6 and Gigabit Ethernet, enabling instant data processing, smart caching and seamless machine-to-machine communication. Reduce latency, optimize bandwidth and bring smarter decision-making closer to where the data is created.
You maintain full control of your data, protecting both collected information and your intellectual property. This makes Kvaser Edge ideal for proof-of-concept testing or scalable production rollouts.
Built for security and tough environments
Trusted security
At the core is a powerful ARM-based Linux computer with Secure Element technology (NXP SE051C2), preventing unauthorized firmware installations and establishing a strong foundation for future security enhancements.
Kvaser Edge meets the requirements of Cyber Resistance Act (CRA) and Radio Equipment Directive (RED).
Learn more about how cybersecurity is integrated into Kvaser Edge.

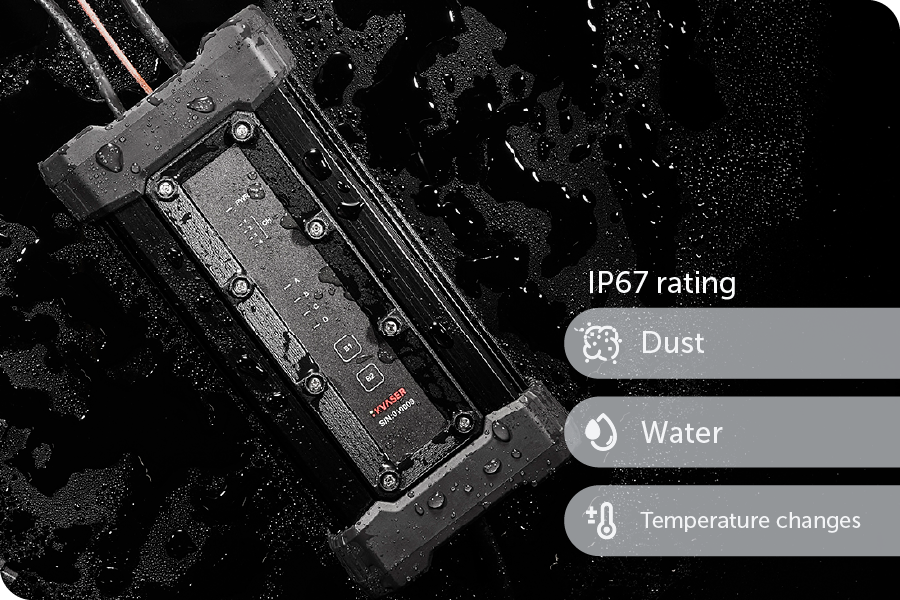

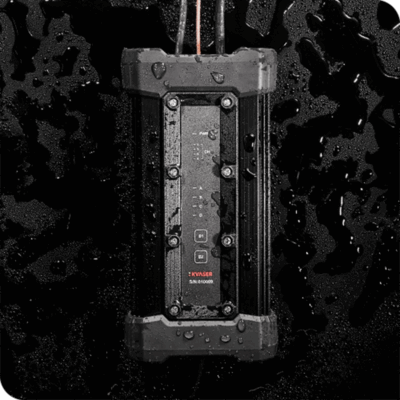

Rugged for demanding data acquisition
With an IP67 rating, Kvaser Edge is sealed against dust, resistant to water and proved to withstand extreme temperature changes. Kvaser Edge features individually galvanically isolated CAN-FD channels and a Kvaser CAN-IP implemented in FPGA, providing robust and reliable communication in demanding environments.
The result is dependable computing power at the edge – ready to deliver insights wherever the work takes you.

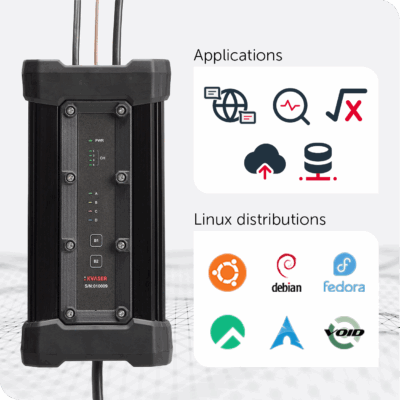

Kvaser Edge OS (KEOS) and containerization
KEOS is Kvaser Edge’s integrated operating system. Based on Linux, it is designed for software integration and gives you the freedom to choose the distribution that best fits your needs — Ubuntu, Debian, Amazon Linux, and more. With integrated container technology, KEOS lets you create a secure isolated user environment for your preferred applications.
Explore KEOS and its possibilities and learn more about containerization and the methodology behind it.
Integrated storage, sensors and connectivity

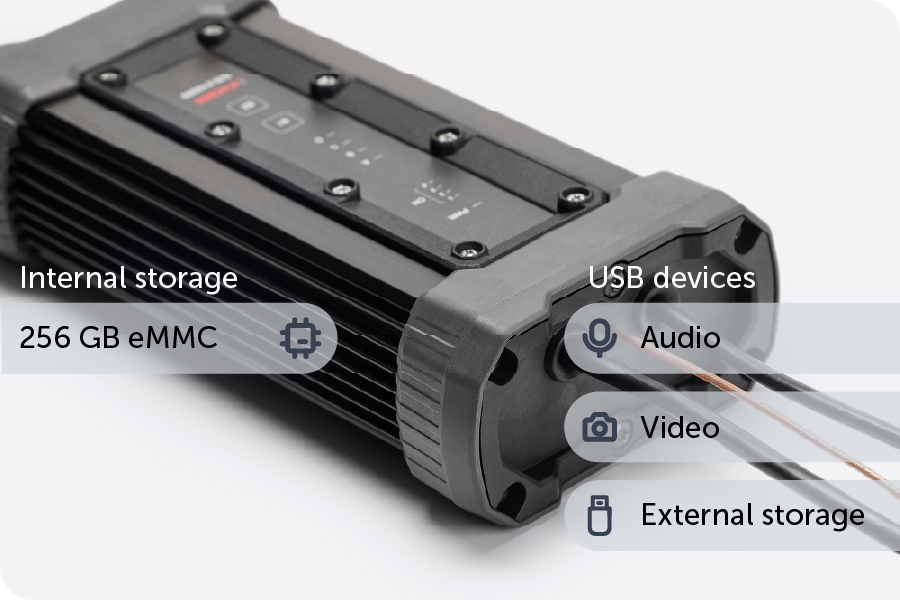

High-capacity storage and flexible USB connectivity
Kvaser Edge comes equipped with 256 GB eMMC storage, reliably handling large-scale data for demanding applications. Store extensive CAN data locally without the need for external systems.
With USB support, you can connect peripherals for external storage and use audio and video devices, enabling you to capture synchronized recordings alongside CAN data for testing, diagnostics and validation.

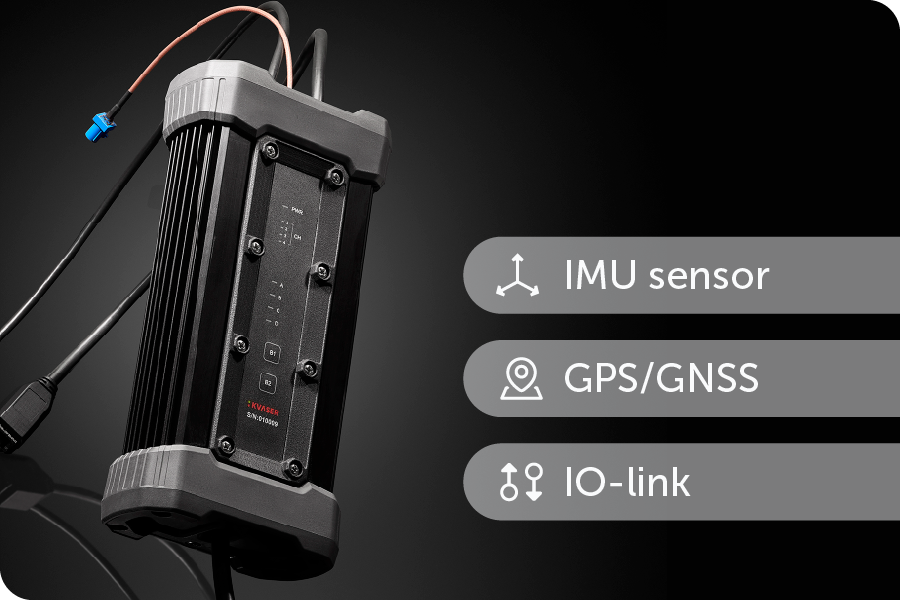

Advanced sensor integration for system insight
Aside from CAN and USB, Kvaser Edge also features built-in sensors that bring motion, location and external signals together in one platform. Its 6-axis IMU provides precise acceleration, rotation and orientation data for accurate motion analysis, while GPS/GNSS tracks exact position and speed, allowing seamless mapping alongside CAN data. With versatile digital I/O, it easily interfaces with external signals for custom triggers.
Use cases
Data Acquisition
Capture and process sensor data at the source to filter and structure information in real time – delivering actionable insight while reducing bandwidth and storage requirements.
Fleet management
Optimize fleet operations by using local and connected data to monitor performance, track usage and detect issues in real time – ensuring safety, efficiency and reliability.
Software Deployment
Deploy software in real time to ensure fast, reliable and consistent updates across the entire fleet.
Predictive Maintenance
Monitor health in real time by using connected data to detect issues early. Provide alerts to operators and enable reliable proactive maintenance to prevent breakdowns and ensure reliability.
