The Next Generation of Rugged CAN Interfaces For Earth’s Toughest Environments

CAN communications don’t always happen in the lab. They happen in service bays, on construction sites, in agricultural fields and in open-cut mines. So we’ve built the next generation of rugged USB CAN interfaces, ready for anything nature has to throw at them.

kesav1

Kvaser Leaf Light R v2

High-Performance, Low-Cost and Rugged Single-Channel USB/CAN Communication. A ruggedized version of Kvaser’s popular Leaf Light v2 interface.

kesav2

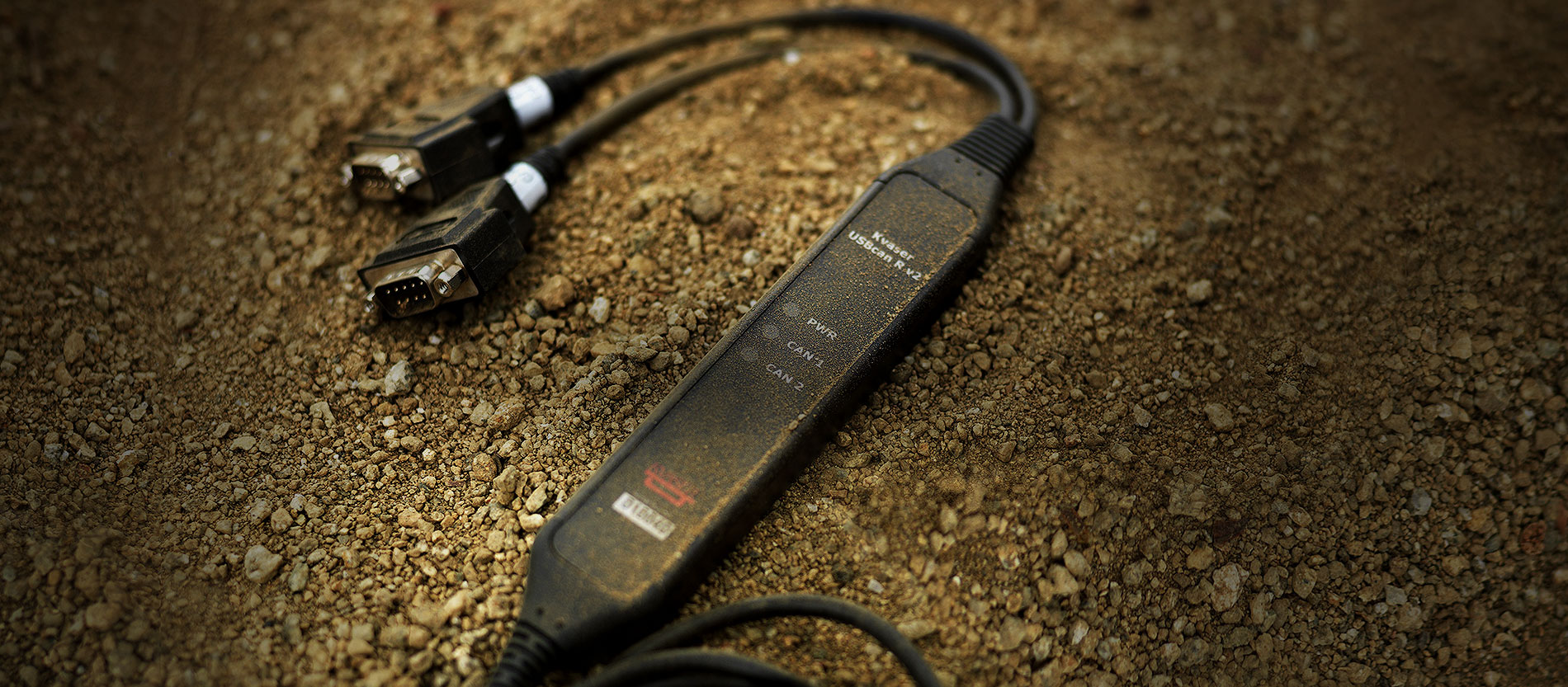

Kvaser USBcan R v2 2xHS

High-Performance, Two-Channel USB/CAN Communication in a Ruggedized Housing.  Similar to Kvaser’s popular USBcan Pro 2xHS v2 interface.

Features

kevsar-icon1
IP65 Rated

Dustproof and splashproof to keep on working no matter what Mother Nature throws at you.

kevsar-icon5
Handles the Heat & the Cold

From -40°C to +70°C, Kvaser’s rugged devices can handle the coldest and hottest places on the planet.

kevsar-icon4
Aluminium, Poly-Coated Housing

An all-new impact-resistant housing protects from bumps and drops, splashes, dust and more.

kevsar-icon2-1
Ruggedized Cabling

Tough, polyurethane cabling is engineered for uninterrupted performance in extreme environments.

kevsar-icon3
Universal Standards Compatibility

Both devices are fully compatible with J1939 and CANopen, plus they work with Kvaser’s universal API.

Pick Your Rugged CAN USB Interface


Kvaser Leaf Light R v2

Kvaser USBcan R v2 2xHS
Channels 1 2
Bitrate 40-1,000 kbps 50-1,000 kbps
Can Support 11-bit (CAN 2.0A)
29-bit (CAN 2.0B active)
11-bit (CAN 2.0A)
29-bit (CAN 2.0B active)
Time Stamp Resolution 100 µs 100 µs
Max Message Rate 8,000 15,000 Per Channel
Can Connectors DSUB 9 DSUB 9
USB USB 2.0 Hi-Speed USB 2.0 Hi-Speed
Buffers On-Board On-Board
Certificates CE, RoHS CE, RoHS
Material Aluminium-Coated Polyurethane Aluminium-Coated Polyurethane
Error Frame Detection Yes Yes
Galvanic Isolation Yes Yes
Messages Per Second Sending 8,000 16,000
Current Consumption 90mA 130mA
Silent Mode No Yes
Temp Range -40°C – 70°C
-40°F – 158°F
-40°C – 70°C
-40°F – 158°F
Warranty 2 Years 2 Years
