Hardware Specifications

For the full hardware specification see the Userguide and the datasheet.

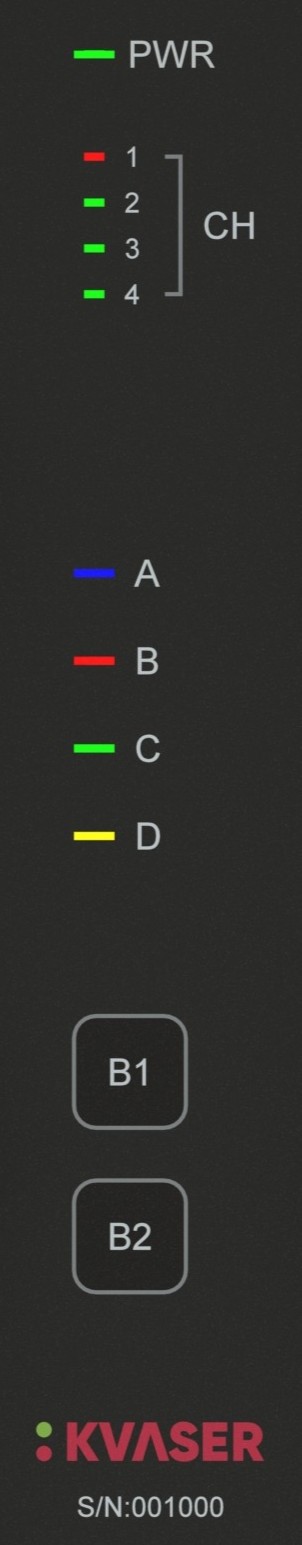

User interface

The user interface panel has 9 LEDs and two buttons.

Power LED (PWR LED)

• Host OS managed

• Single color

The PWR LED will light up early in the boot loader within 1s from power on.

CH1..4

• User managed

• Dual color, red & green

User defined LEDs (LED A-D)

• User managed

• RGB LEDs

Buttons B1 & B2

• Host OS managed during boot

• User managed after boot
